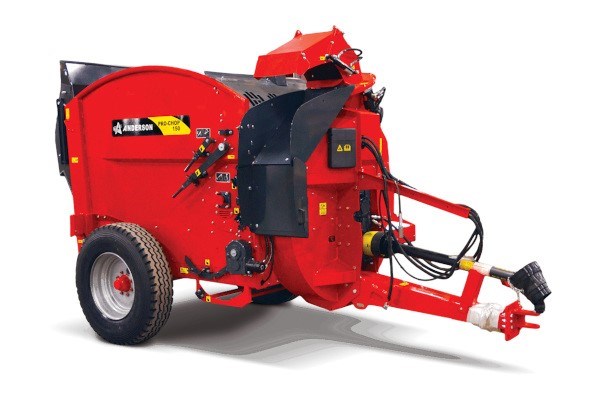

Anderson Group Pro-Chop 150

Double tap to zoom

NEW more aggressive rotor with 22 discs and 264 knives for more effective processing.
The top gate when engaged will be used to help chop down fiber more efficiently. On the other hand when disengaged it will allow material to go through without cutting it leaving it pretty much intact. Counter knife setting is always used along with the top gate to chop down finer material.
The removable recutter screen is used ONLY when processing straw. The screen with its 2 inches wholes, will prevent longer fiber of straw to go through and will be forced back into the knives’ path and be cut.
The comb is part of the rotor and allows the bales to be perfectly fed through the rotor. Prevents the bales to come in too quickly and creating blockages.
68 inches Blower made with steel AR400 ensuring the best quality and resistance to wear. Side wall fan in steel AR400 also.
Large wheels for muddy terrain.

Dimensions
Overall width (m)	7' 11" (2.41 m)
Overall height (m)	8' 10" (2.69 m)
Overall length (m)	14' 8" (4.52 m)
Overall weight (kg)	2550 kg (5621 lb)
Bale chamber ( W × H × L)	5' 4" × 3' 9" × 6' 5" (1.65 x 1.20 x 2 m)
Bale chamber capacity	152 cu ft (4 m³)
Interior width of the chamber	6' 5" (2m)
Interior height of the chamber	5' 4" (1.65m)
Interior length of the chamber	3' 9" (1.2m)
Bale
Type of bales	Straw-hay-baleage
Round Bale Capacity	1 bale up to 6' × 5' long (1.9 m × 1.5 m)
Square Bale Capacity	or 2 bales 5' × 5' long (1.5 m × 1.5 m)
Maximum bale(s) weight	4' × 4' × 9' (1.2 m × 1.3 m × 2.8 m)
Specifications
Controls	Up to 60' (18 m) on the right side and up to 40' (12 m) on the left side
Chute rotation	Electrical with conveyor speed adjustment from inside the cabine
Tires	270°
Tractor mounting	315 × 80 R 22.5 L
Number of blower paddles	Double plate hitch
Number of knives	8
Number of discs on rotor	264
Tractor Minimum Hydraulic Flow	22
Tractor Minimum Hydraulic Pressure	9 Gal/min (35 liters/min)
Tractor Minimum HP requirements	2300-2900 psi
Tractor hydraulic requirements	80 HP
PTO requirement	1
