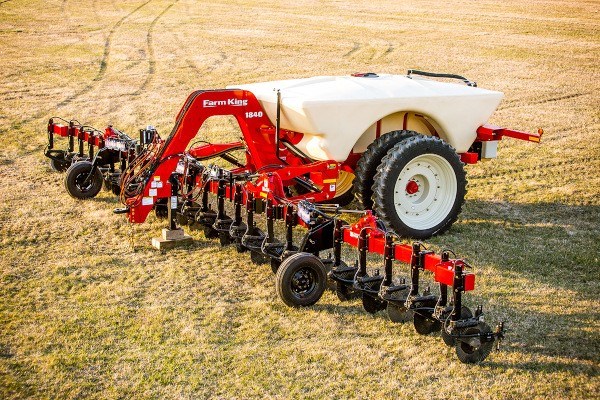

Farm King 1840

New Equipment / All Lines / Farm King / Application Equipment / Fertilizer Applicators / 1840

Double tap to zoom



Features

HIGH CLEARANCE TOOLBAR
The Model 1840’s heavy duty toolbar leads the industry with the most crop clearance (36”) and ground clearance (30”) expanding the application window, minimizing crop injury, and maximizing yield potential.

USER-FRIENDLY HYDRAULIC SYSTEM
The hydraulic systems allows you to use your tractor’s hydraulic controls during work and transport operations, making it easy and comfortable to operate.

ASYMMETRICAL TANK DESIGN
The purpose built 1800 gallon tank is carried by the implement, not the tractor. There’s no transfer of weight to the toolbar or drawbar, making this unit easier to pull and easier to operate.

CORE FEATURES
  • A wide stance, high clearance, parallel lift linkage
  • Heavy-duty 2” inner and 1 1⁄2” outer hinge points
  • 7.6 X 15SL gauge wheel rim and tire
  • Hydraulic valve block
  • Short pin to axle length - 175" wheelbase
  • Engineered, laminated, stepped, and fully welded hitch design
  • Single piece, welded frame
  • Single and dual tire options with fixed and adjustable axles
  • Proximity sensors control wing tilt range
  • Visual flow monitor system
  • Mechanical wing-fold locks
  • Transport/Work Mode switch box with a single switch

Specifications

MODEL 1840
Tank size 1800 gallon, stainless steel baffle, hopper bottom sump
Coulters - Yetter 2996, parallel linkage, 20" coulter w/knife
- Yetter 2995 Gen. III, single linkage, 20" coulter w/injector
- Hydraulic depth control assist
Tool bar - Available in 20", 22", 30", 38" rows in widths up to 45 ft.; Twin cylinder height adjust
- 7 x 7 high-clearance toolbar with 15° down flex;
- Adjustable gauge wheels
Tire size 380/90 R46 single and duals, 320/90R46 duals, 320/90R50 singles
Wheel spacing 120" fixed, 132" fixed, 120" - 152" adj. axles
Pumps -John Blue ground driven, twin piston pump
-Ace hydraulic centrifugal pump kit w/Raven 450 controller, Raven Viper 4, or ISO Ready
-Visual flow monitors, standard
Ground clearance1 36"
Transport width1 17' 9"
Transport height1 13' 3"
Transport length1 21' 8"
Empty tongue weight 3,820 lb
Empty weight 12,680 lb
Fresh water safety tank 9 gallon
Quick fill 3"
Pin to axle length 14' 7"
Available colors Red / Cream Green / Cream
