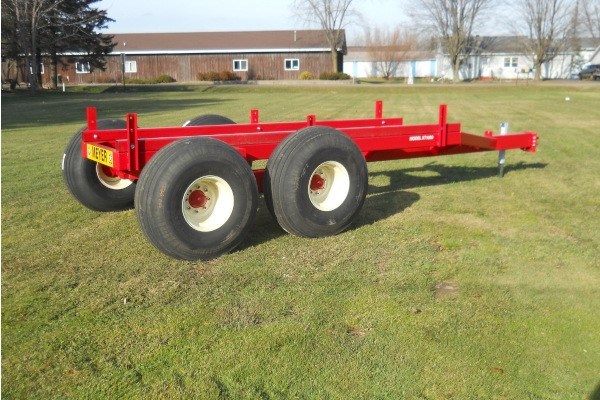

Meyer Farm XT1600 Tandem Trailer / Oscillating Axles - 16 Ton

Double tap to zoom



Features

  • Tubular hitch with adjustable clevis standard
    The XT1600 features a 4x8 tubular hitch assembly with heavy square jack and adjustable clevis hitch system.
  • HD Tube Frame
    3x6 Tubular Frame structure of the XT1600 handles the load.   This unit is available in 2 different bed lengths to handle your application.
  • Feeder box Application
    XT1600 Tandem Trailers are commonly sold in combination with 14, 16 and 18' feeder boxes but are available for other applications as well.
  • Riser Package
    Depending on tire size, a riser kit is available to achieve necessary tire clearance in some applications.   Generally tires larger than 14Lx16.1 will require a riser in with any type of forage box or flatbed installed.
  • Tire Options
    Choose from 12.5Lx15, 14Lx16.1, 16.5Lx16.1, 19Lx16.1, 11Rx22.5 or 425/65x22.5 tire/rim packages.
  • Tandem Axle System
    XT1600 Tandem Axle System features 60/40 offset, HD pivot system, 3" spindles and 8 bolt-8,000# hubs!
  • Scale Packages
    5 point scale package is available for this tandem trailer (hitch weigh bar pictured)

Specifications

Model XT1600 162 XT1600-L 202
Style Tandem O-Beam Tandem O-Beam
Capacity 32,000 lbs. 32,000 lbs.
Tread Width
Spindle Size 3" 3"
Heavy Duty Hubs 8 Bolt 8000# at 10 MPH 8 Bolt 8000# at 10 MPH
Frame Design 3x6x1/4" Tubing 3x6x1/4" Tubing
Weight 3145# w/riser w/425/65x22.5 3240# w/riser w/425/65x22.5
Overall Length 20' 8.5" 24'
Bed Length 13' 7" 16' 10.5
Overall Width
Bed Width 42" 42"
Stake Spacing 42" 42"
Bed Height
Adj. Clevis Hitch Standard Standard
Options
Surge Brakes N/A N/A
Swivel Clevis Hitch N/A N/A
4" Riser Package Optional Req. for 16.5L, 19L or 425/65 Optional Req. for 16.5L, 19L or 425/65
