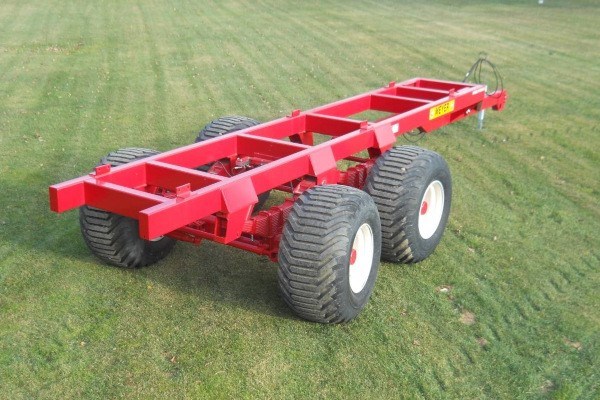

Meyer Farm XTSS2700+ Tandem Trailer / Suspension-Steer Axle - 27 Ton

Double tap to zoom



Features

  • XTSS2700+ Series Upgraded!
    This new "Plus" Series XTSS Tandem Suspension / Steer trailer received a host of upgrades to the hitch frame, structure, scale mounts and more!   It replace the XTSS2200 model.
  • HD Tubular Frame
    Meyer XTSS2700+ Trailers feature a 4x8 tubular base frame in 2 different lengths to accommodate your application.   Typically used for forage boxes & feeder boxes from 24-26' of load space plus other applications.
  • Robust Hitch Assemblies
    Meyer XTSS trailers feature a strong 6x8 tubular hitch system which is heavily fortified to handle the load.
  • Suspended Axles Standard / Rear Steerable on XTSS
    HD, 33,000# suspension axles are standard on this model as well as rear axle steering.
  • Tire Options
    The XTSS2700 Trailer can be ordered with 600/50x22.5 (pictured) or a wider 700/40x22.5 bar tire package.
  • Locking Rear Axle
    The rear steer axle features a locking mechanism to aid in backing up or long distance travel out of the field.  (Hydraulic activated)
  • Brake Choices
    Brakes on both axles are standard equipment on the XTSS2700+.   Hydraulic hand lever or foot pedal packages available.
  • Standard Articulating Implement Hitch
    This HD Cast Articulating Implement Hitch is standard equipment on the XTSS2700+.   It offers excellent flexibility for uneven terrain and does require a hammer strap tractor draw-bar.
  • Scale Option
    The Meyer XTSS Series Trailer can be outfitted with a handy scale arrangement.   It features an 8 cell system mounted between the trailer and implement.

Specifications

Model XTSS2700+ 264 XTSS270 XTSS4500+ 315 XTSS4500+ 390
Style Tandem
Suspension
Steerable
Tandem
Suspension
Steerable
Tandem
Suspension
Steerable
Tandem
Suspension
Steerable
Suspension Leaf Spring Leaf Spring Leaf Spring Leaf Spring
Capacity (Trailer & Load) 54,000# 54,000# 90,000# 90,000#
Tread Width 88 1/2" w/600/50x22.5 88 1/2" w/600/50x22.5 88 1/2" w/600/50x22.5 88 1/2" w/600/50x22.5
Axle Configuration Tandem - steerable
33,000# x 2 - High Speed
Tandem - steerable
33,000# x 2 - High Speed
Tandem - steerable
33,000# x 2 - High Speed
Tandem - steerable
33,000# x 2 - High Speed
Heavy Duty Hubs 10 Bolt - Grease Filled 10 Bolt - Grease Filled 10 Bolt - Grease Filled 10 Bolt - Grease Filled
Max Speed (Depends on Tires) 40 mph 40 mph 40 mph 40 mph
Frame Design 4x8 Tubular 4x8 Tubular 4x8 Tubular 4x8 Tubular
Bed Width 42" 42" 42" 42"
Stake Spacing 33.5" std 33.5" std 33.5" std 33.5" std
Bed Height 50"
w/600/50x22.5
50"
w/600/50x22.5
50"
w/600/50x22.5
50"
w/600/50x22.5
Overall Width w/600/50x22.5 110" 110" 110" 110"
Overall Length 29' 9" 29' 9" 34' 40' 3"
Bed Length 22' 1/2" 22' 1/2" 26' 9" 32' 9"
Hitch and Hitch Supports Extra Heavy Duty Extra Heavy Duty Extra Heavy Duty Extra Heavy Duty
Articulating Implement Hitch Standard- Requires
1.5 or 2" pin
Hammerstrap style hitch
Standard- Requires
1.5 or 2" pin
Hammerstrap style hitch
Standard- Requires
1.5 or 2" pin
Hammerstrap style hitch
Standard- Requires
1.5 or 2" pin
Hammerstrap style hitch
Weight- Approx 7,960# w600/50x22.5 7,960# w600/50x22.5 12,660# W/600/50x22.5 13,100# w/600/50x22.5
Options
Tires 600/50x22.5 High Float
700/40x22.5 High Float
600/50x22.5 High Float
700/40x22.5 High Float
600/50x22.5 High Float
700/40x22.5 High Float
600/50x22.5 High Float
700/40x22.5 High Float
Brakes Hydraulic Manual
Hydraulic Foot Pedal Air
Hydraulic Manual
Hydraulic Foot Pedal Air
Hydraulic Manual
Hydraulic Foot Pedal
Hydraulic Manual
Hydraulic Foot Pedal
Saftey Chain Optional Optional Optional Optional
