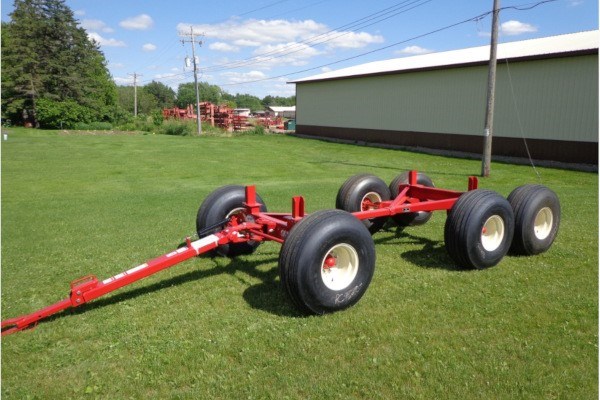

Meyer Farm 15 Ton Tandem Axle-SRX1506

Double tap to zoom



Features

HD 4x8 Bolsters

All Meyer wagons feature a tubular bolster beam front and rear to carry the load.   No formed channels like most other brands!

Robust Frame

Meyer wagons put iron where you need it.   This wagon has been designed and engineered for your toughest tasks.   It's been torture test and field proven!

C Section Reach

This C-Section Reach provides flexibility and strength (5" wide).   No rotating collars to wear out!

Precision Steering

Meyer SRX wagons feature a completely new steering system providing ease of turning, tighter turning radius and trailability that you have to see to believe!

HD Adjustable Tongue

All Meyer wagons feature an adjustable tongue assembly to match your application.   The speed hitch arrangement makes for quick hookup.  Spring assist is standard equipment on all models.

T-Type Trunion Steering

This T-type steering design provides added strength and accuracy.   The vertical steering pin contains tapered bearings for ease of steering while eliminating stress on critical parts.   All moving parts and tie rod pivots are greasable.

Hubs / Spindles

SRX1506 wagons feature big 2 3/4" spindles in a T-type design for maximum strength.   8 bolt hubs handle big loads and provide several tire/rim options.  Choose from 12.5Lx15, 14Lx16.1, 16.5Lx16.1 or 11Rx22.5 packages.

Stake Pocket System - SRX models

This simple system provides easy installation for implements with a 42" stringer spacing.   It also allows for quick installation of a riser package if extra tire clearance is required for your application.

Tire Options

Meyer wagon gears can be ordered with no tires or rims / rims only / tires & rims - your choice!



Specifications

Model SRX1506
Capacity 15 ton
Weight w/ tires 2,415# w/14L
Tread Width 83"
Spindle Diameter 2 3/4"
Hub Size 8 Bolt 6000#
Bolster Size / Height 4" x 8" tube 31" w/14L
Reach Size 5" Wide x 112"L opt. 136"
Wheel Base 117" to 165"
Quick Hitch Pole Standard w/ spring asst.
Pole Adj. 97"-115"
Hyd. Surge Brakes Optional
