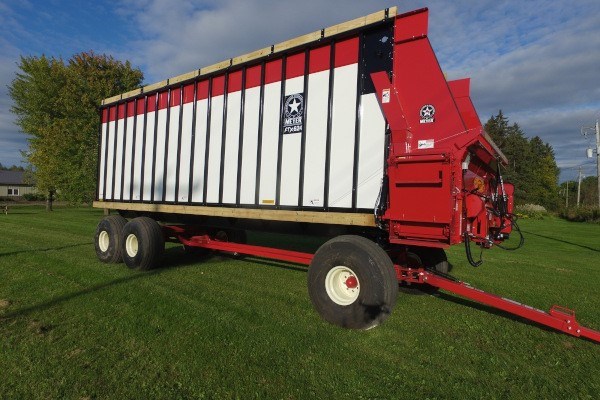

Meyer Farm RTX624

New Equipment / All Lines / Forage Boxes / Front Unload Forage Boxes / RTX600 Series Front Unload / RTX624

Double tap to zoom



Features

  • Wagon - Trailer - Truck Mount
  • HD steel frame with tubular floor supports on 16" centers. 7'5" inside width for maximum capacity! New integrated top rail system eliminates the need for side supports on open top models.
  • Standard Package includes: High sides, 4th beater, fold-down conv extension (pictured here with optional clad tuff fiberglass sides)
  • RTX comes standard as an open top / roof system optional
  • Variable speed RT Belt Drive standard equipment - featuring our new, high-efficiency bevel gear-drive system capable of 17' / minute clean-out speed!
  • spring loaded chain tensioning on all roller chains (main drive / auger drives)
  • HD 2" main drive shaft with machined drive sprockets - tough stuff!
  • 18" Diameter drum augers in a tapered formation provide a smooth mat of feed to the discharge conveyor / 4th beater standard on RTX series (pictured here with optional roof and basic hyd drive)
  • 24" wide pintle chain apron provides an even discharge to your blower or bagger without the buildup associated with roller chain conveyors. Cross conveyor hold-downs and folding extension are standard equipment!
  • Feather start controls including cross apron / auger / main apron. No jaw clutch engagements like other brands!
  • Solid Poly Floor - high molecular virgin poly (not reground)!
  • LED lighting standard
  • Basic hydraulic or cab controlled hydraulic drive available
  • Electric front to rear or side to side tarp packages available / front closures required

Specifications

Front Unload RTX624
Dimensions
Floor Length 24' 6"
Overall Length 27'8"
Inside Height (w/o roof) - std height
                                - high sides 7'3"
Overall Height (w/o roof)
       top of side            - std height
                                 - high sides 106"
top of door pivot (RT/RTX200 only) std height
high sides 115"
Less 4" truck & trailer mounts (except on XT1600 trailer*)
Overall Height (w/roof) - wagon mount version        - std height
                                 - high sides 126.5"
Inside Width 89.5"
Overall Width w/conveyor extension up 109.5"
Stringer Width/Height
  Truck/XT2200 Trailer Mount 33.5"/6"
  Wagon Mount 42"/10"
Capacity (struck level) cu. ft. w/o roof
              - (6'3) std height
              - (7'3) high sides 1325
Capacity cu. ft (with roof)
              - (6'3) std height
              - (7'3) high sides 1585
Specifications
Front Apron Drive Shaft 2"
Tubular Upright Spacing 16"
All Steel Frame - 24" centers (no wood) Std 16"
HD Tubular Floor Supports 2x2
HD Top Rail Formed (no side supports needed) Std
Commercial Grade Geardrive (no worm gears) Std
Standard Features
RT Variable Speed System - 0-17'/minute (PTO drive standard) Std
Apron Chains (heavy duty pintle) 667X
Spring Loaded/Torsion Style Apron Tightener (RT/RTX200) Std 224
Direction Control System (patented)
Front to Rear Selection with No Coupler Change Std 224
Auger Feathering System & Conveyor Clutch/Safety Clutch Std
Cross Conveyor Chain Hold-Downs Std
Fold-Down Conveyor Extension w/ Lift Assist Std
Superslide, Solid Poly Floor (no plywood) (RT/RTX200, RTX600) Std
12" Higher Sides w/4th Beater System Std
Rear Gate Delay System (RTX200) Std 224
Optional Equipment
Hydraulic Front Drive System (in lieu of PTO) Opt
Hydrarulic In-Cab Controls (in lieu of PTO) - includes hyd lift conveyor Opt
36" Fold-Down Cross Conveyor Extension (in lieu of standard 24") Opt
Hydraulic Lift Option for Fold Down Cross Conveyor Extension Opt
Roof Assembly (removable) Opt
Roof Hood Assembly (right hand, open top units only) Opt
Rear Grain Kit (RT/RTX200 only) Opt 224
False Front Gate for Grain Kit Opt
Truck Mount/Trailer Mount/Wagon Mount Opt
Tarp Systems (w/front enclosures)
  Front to Back Scissor Tarp (electric) Opt
  Side to Side Roll Tarp (electric) Opt
Clad Tuff Fiberglass Sides & Back Opt
