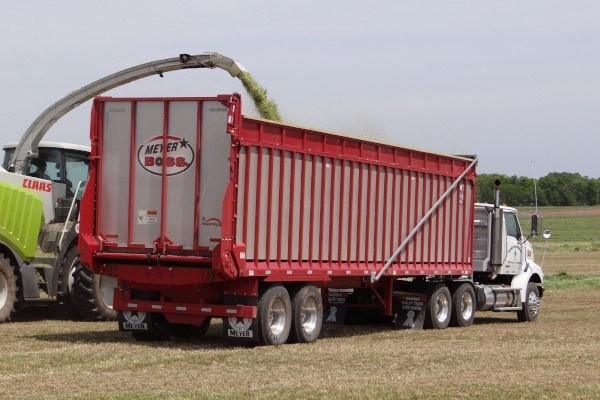

Meyer Farm 9130RT Trailer

Double tap to zoom



Features

  • FAST – STABLE – SAFE unloading of your materials (no hoist) - Approximately 1 minute at 40 gpm!
  • 30, 36 or 40’ models available / interior width 98” for max capacity per running foot!
  • HD fully welded frame @ 16” centers to handle heavy loads while maintaining a low center of gravity!
  • Dual Hyd Geardrive System offers efficient, fast unloading with no roller chains / big 2 3/8” driveshaft
  • 1” hydraulic plumbing with JIC front connections
  • Stainless Steel side panels provide practicality, corrosion resistance and good looks.
  • Solid poly floor – high molecular virgin (not reground!)
  • Top Pivot rear door standard with gate delay - Barn Doors with air closure optional
  • LED Signal/marker/clearance lights, DOT tape and rear bumper standard (pictured w/ optional 18 light pkg)
  • Integrated dual front viewing window / elevated “BOSS” plate up front for easy hookup / storage
  • Farm name on box sides standard
  • High Gloss urethane paint finish / red standard - black optional
  • Electric front to rear or side to side tarp packages available
  • Effective Grain Kit attachment option / quick – easy – multi-purpose!
  • Reversing apron package available for bale hauling.
  • Set back axles / air lift axles and tire options available
  • It Feels Right!
    Meyer takes pride in producing a quality product because we know you take pride in your investment!

Specifications

DIMENSIONS 9130RT Trailer
Inside Length 30'
Inside Width 98"
Inside Height - no extension 72"
Inside Height w/14" extension 85.5"
Overall Length 31'1"
Overall Width 102"
Overall Height - no extension (top of gate) * 147"
Overall Height w/14" extension (top of gate) * 159"
Overall Side Height - no ext. / ext. * 130.5/144.5"
Stringer Width (Truck/Trailer Mount) NA
Capacity (struck level) Cu. Ft. - w/o ext. 1460
Capacity (struck level) Cu. Ft. - w14" ext. 1720
SPECIFICATIONS
Maximum Net Load (off road rating) 30 ton
Apron Chains (pintle) 667XH
Rear Drive Shaft 2-3/8" HD SOLID SHAFT
Power Source / DIRECT GEARDRIVE hyd-dual
Upright Spacing 16" on ctr
Upright / Cross member Construction 2x2 tubing
Enclosed Side Frame/Cross Member Union STD
Unloading Time (Dependent of Hyd. System) 55 sec
FEATURES 9130T
Clad-Tuff Fiberglass Woven Side Panels NA
Stainless Steel Side Panels STD
Solid Poly Floor - High Molecular STD
Rear Gate Delay System *new RT design!! STD
Automatic Rear Door Unlatch / Latch STD
Hydraulic Drive STD
Double Viewing Window in front gate STD
Rear Transport Lights - LED (new location) STD
Marker/Clearance Lights (LED) & D.O.T. Tape STD
Personalized Farm Name on Sides STD
OPTIONS
14" Removable Side Extension (screen or solid) OPT
+includes fold-down front ext. except w/tarp
Double Center Opening Doors Hyd/Air (Barn Doors) OPT
Grain Kit / Quick Attach for Top Pivot Door OPT
Grain Kit / Quick Attach for Barn Door Gate OPT
Side-mtd, LED Turn Signals in addition to std OPT
Reversing Apron Feature OPT
Set Back Axle Design / Air Lift Pusher Axles OPT
Side Hood Deflector/backstop (RH side) OPT
Black paint in lieu of Red OPT
Truck Mount Kit w/Steel Fenders STD
Factory Install of Truck Mount Kit STD
Wagon/Trailer Mount Kit NA
TARP SYSTEMS
Front to Back Scissor Tarp (electric) OPT
Side-to-Side Roll Tarp (electric) OPT
