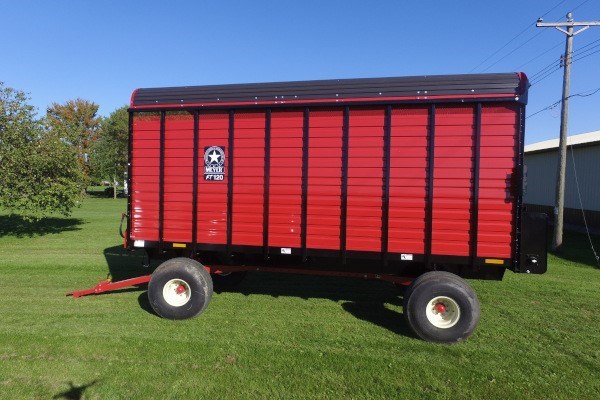

Meyer Farm RT120

Double tap to zoom



Features

  • Wagon, Trailer or Truck Mount versions available
  • FAST – STABLE – SAFE unloading of your materials (no hoist)
  • 16 – 18 – 20 - 22’ models / interior width 7’5” for max capacity per running foot!
  • HD fully welded frame @ 24” centers. 100% steel floor support system with tubular side uprights!
  • Hyd Gear-drive System offers efficient, fast unloading with no roller chains / big 2” driveshaft
  • Removable roof system is standard but available as open top (also available with extended "crop saver" roof)
  • High capacity, 12” taller side package available with or without roof
  • Multiple front gate options to match your loading application
  • Corrugated steel side panels standard with oven baked red finish provide strength and rich look
  • Marine treated plywood floor standard / optional solid poly floor pictured here
  • Heavy duty 667X pintle chains standard equipment / notice 4 latches lock directly into aprons for positive latching every time!
  • Top Pivot rear door standard with gate delay (great time-saving feature!)
  • High Gloss urethane paint finish on frame
  • Scale packages available for wagon, trailer or truck mount applications

Specifications

MODEL RT120
Floor Length 20' 6"
Overall Length - std roof 21' 6"
Main Apron 667 X
Overall Width 101"
Inside Width 89.5"
Power Source Hydraulic Gear Drive
Drive Shaft Diameter 2"
Removable Roof System Standard
Overall Height
Standard Sides / roof 114.5"
- 12" taller sides / roof 126.5"
- Std. sides / no roof 95"
- 12" taller sides / no roof 107"
Inside Height
Standard sides / roof 94.5"
- 12" taller sides / roof 106.5"
- Std. sides / no roof 75"
- 12" taller sides / no roof 87"



Optional Equipment
Available For All Models
12" Taller Sides
Rear Gate Delay
Open Top / No Roof
RH Roof Hood
Crop Saver Roof Pkg
Solid Poly Floor
Truck Mount
