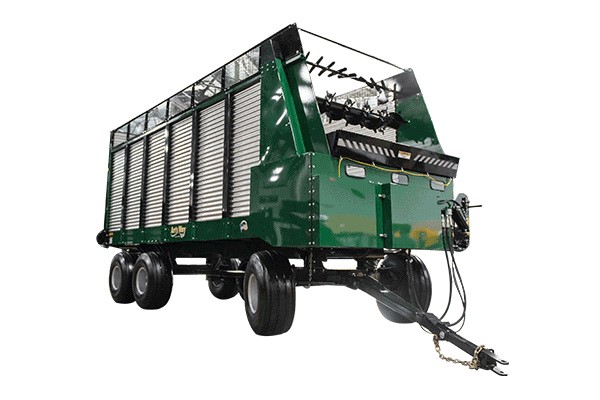

20 Foot Forage Box
Overview:
2120 Model Optional In-Cab Controls Dual front/rear unload option available
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
LIGHTNING-FAST UNLOAD
Our independently controlled hydraulic drive system sets us apart from the others in speed and convenience. Our rear- and front-unload options can be done right from the cab with the switch of a button clocking in at 4-minutes and 1-minute to unload respectively.
ROBUST CAPACITY
Pick the box size fit for you — 16, 18, 20, or 24-ft. — with corrugated-steel sides ready to take on the acidic environment of forage harvest.
VERSATILE HOOK UP OPTION
The standardized frame and sub-frame design means you can potentially mount our forage boxes to anything — be running gear or truck mount.
NO-FUSS ENGINEERING FOR EASIER MAINTENANCE
We’ve drastically reduced the number of unique parts on this machine. These streamlined components translate to a simple, low-maintenance forage box that just about anyone can service.
DURABLE FLOOR
The box floors are constructed with tough 1/2-in thick densilite material for reduced thermal expansion (no waves and buckles here) and minimal wear. These floors provide a slick surface for material to slide across to reduce trapped moisture buildup.
ALL-AROUND AFFORDABLE
With the 2100 Series your savings come upfront and throughout the life of ownership. Our engineers drastically streamlined components to create a simple design that equates to reduced maintenance costs and fewer breakdowns for an overall more economical package.
OPTIONAL GATE DELAY
Art’s Way gate delay option is activated with the start of the floor chain and holds the rear end gate open for smooth unload of material. It enables you to have a complete clean out. It swings shut as the floor disengages and you drive forward with a positive lock.
Specifications
| Product Info | 20 FOOT FORAGE BOX |
| Dimensions | N/A |
| Overall Length | 23 ft. 11.75 in. |
| Apron Chain Link Style | 667X |
| Box Floor Material | 1/2 in. Densilite |
| Box Side Material | 20 gauge Aluminized Steel with 1-5/16 in. corrugation |
| 4th Beater/Side Extensions | Optional |
| Apron Chain Speed | 20 ft./minute variable |
| Apron Chain Tensioning | Serpentine Tensioning |
| Capacity W/ Roof (Front/Combo Unload) | 1150 cu. ft. |
| Capacity W/ Roof (Rear Unload) | 1,208 cu. ft. |
| Cross Conveyor Chain | CA550 |
| Empty Weight (W/ Extensions) | 7,800 lbs. |
| Empty Weight (W/O Extensions) | 7,300 lbs. |
| Floor Length | 20 ft. |
| Floor Supports | 2 in. x 2 in. on 18-7/8 in. Centers with 3 in. Support Strips |
| Front Drive Shaft | 2 in. |
| Heaped Capacity (W/ Extensions) (Rear Unload) | 1,289 cu. ft. |
| Heaped Capacity (W/O Extensions) (Front/Combo Unload) | 1,042 cu. ft. |
| Heaped Capacity (W/O Extensions) (Rear Unload) | 1,093 cu. ft. |
| Heaped Capacity (W/ Extensions) (Front/Combo Unload) | 1,226 cu. ft. |
| In-Cab Control Hydraulic Drive | Screen w/ push button |
| Inside Height (W/ Extensions) | 89-5/8 in. |
| Inside Height (W/O Extensions) | 73-5/8 in. |
| Inside Width | 87-5/16 in. |
| Manual Hydraulic Drive | Optional |
| Outfeed | 30 in. Std. Hydraulic lift Std. |
| Overall Height (W/ Extensions) | 110-5/8 in. |
| Overall Height (W/O Extensions) | 110-5/8 in. |
| Overall Height W/ Roof | 117.5 in. |
| Overall Width W/ Conveyor Up | 112.25 in. |
| Rear Gate Delay | Optional |
| Roof | Optional |
| Side Stakes | 2 in. x 5 in. on 37-11/16 in. Centers |
| Struck Capacity (W/ Extensions) (Rear Unload) | 1127 cu. ft. |
| Struck Capacity (W/O Extensions) (Front/Combo Unload) | 889 cu. ft. |
| Struck Capacity (W/O Extensions) (Rear Unload) | 927 cu. ft. |
| Struck Capacity (W/ Extensions) (Front/Combo Unload) | 1076 cu. ft. |
| Tires (Optional #1) | 16.1×14 - 8 Bolt Rim w/ 16.5Lx16.1 - 12 Ply Tire |
| Tires (Optional #2) | 560/45R22.5 Flotation - 8 Bolt Wheel |
| Tires (Optional #3) | - |
| Top Rail | Formed metal reinforced with tubing |
