Features

Sized for the larger operation

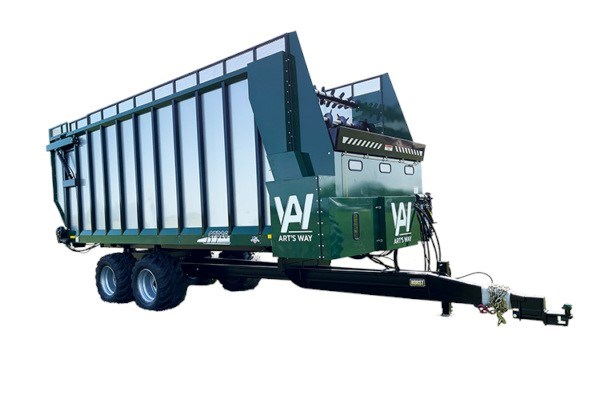

The CFB26 Commercial Forage Box is made for the large single operators or custom choppers. Get more capacity at an affordable price point and it takes hills and valleys like a champ. With an overall length of 26’ 11-3/4, this forage wagon trails nicely behind your tractor. We’re bringing you the durability, versatility and efficiency you want and need in your chopping operation.
Stainless steel panels, 2-speed motors for the gearboxes for ultra fast unloading, and heavy duty 667HX floor chain makes this the BIG BOY BOX you have been searching for.

Fast unload gets you back in line

Tired of the next box waiting behind you? The CFB26 box unloads lightning fast with no need to get out of the cab. Switch from front to rear unload with a push of a button with optional in-cab controls. Heck, you will probably have to slow down the box so your bagger can keep up!

Sit back and relax

Knees aren’t what they use to be? Operators complaining about the heat? With our optional in-cab control system, stay right in your seat and catch up on market prices while you unload. Simply press sequence buttons to lower your outfeed, start your cross conveyor, engage your beaters, and start your floor chain. No more getting out of the cab to hook up and unhook a PTO, dropping down the cross conveyor or running levers on the box.

All the same great features

Get all of great features you are used to on the 2100 series: 1/2″ Densilite flooring to minimize floor warping between seasons, corrugated side walls for extra durability, easy to maintain chains and sprockets. Optional gate delay gives the tailgate a slow close when cleaning out the box as you drive back to the field.

Specifications

Floor Length	22 ft.
Overall Length	26' 11-3/4"
Inside Height (w/ extensions)	95 in.
Overall Height (w/o extensions)	110-5/8 in.
Overall Height (w/ extensions)	158 in.
Inside Width	122.25 in W/ CONVEYOR UP
Struck Capacity (w/ extensions) (Front/Combo Unload)	1449 CU. FT.
Heaped Capacity (w/ extensions) (Front/Combo Unload)	1644 CU. FT.
Front Drive Shaft	2 in.
Side Stakes	2-1/2 in. x 2-1/2 in. on 24 in. Centers
Box Side Material	16 Guage Stainless Steel
Floor Supports	1-1/2 in. x 1-1/2 in. on 12" Centers
Top Rail	Tubing
Apron Chain Link Style	667XH
Apron Chain Speed	Series: 17.5'/Minute Variable: 8.75'/Minute Variable
Apron Chain Tensioning	Serpentine Tensioning
Outfeed	30 in. Std. Hydraulic lift Std.
In-Cab Control Hydraulic Drive	Screen w/ push button
Tires (Base)	560-45R22.5 Tires
