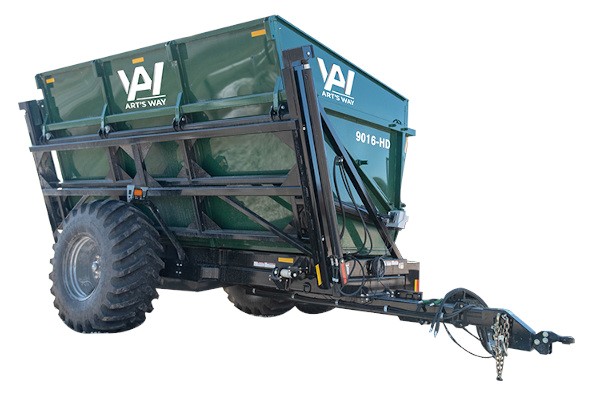

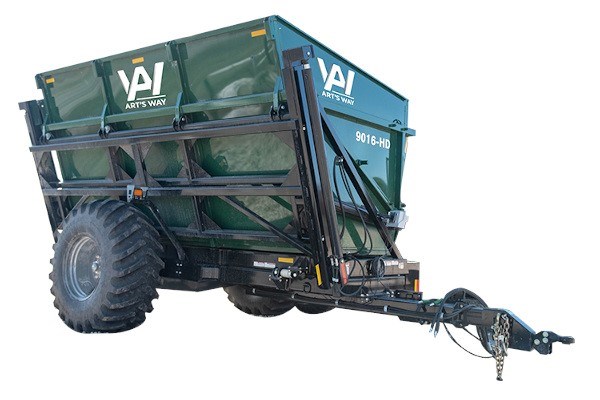

Art's Way 9016-HD 930 Cubic Foot

Double tap to zoom

High Dump Cart

9016-HD 930 Cubic Foot

Overview:

Robust, industrial features benefit operators. The new 9016-HD is our biggest one yet, with a capacity of 40,000 pounds. For comparison, our nearest competitor only has a 30,000-pound capacity. And with the frame on the outside, there’s no ‘ribcage’ on the inside to trap materials. The result is a reliable, versatile, high-performing powerhouse.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

REDUCE HARVEST DOWNTIME
Tired of waiting for the field to be dry enough? With different dump carts, you can get in the field without needing to bring in your trucks. Match the box size for your operation needs whether it is a two wheel cart with flotation tires or a 4 wheel wagon to pull behind the harvester.

LEFT OR RIGHT HAND DUMP
The 9016-HD features a reversible hitch that makes it easy to change from right to left hand dump as needed to accommodate harvester movement. The 9015 can be ordered as a right or left hand dump from the factory.

IMPRESSIVE CAPACITIES
The 16 ft. box length has a capacity of 930 cu. ft. and rated load capacity of 40,000 pounds. The 15 ft. box length has a capacity of 655 cu. ft. struck and a rated load capacity of 24,000 pounds.

WIDE STANCE STABILITY
The high dump cart has a massive undercarriage, a wide stance, and a counterweight box for maximum stability.

NEWLY ADDED EXTENSION KIT
Add the extension kit for lighter weight materials giving 1355 cubic feet of capacity.

Specifications

Tank Length	16 ft.
Dump Capacity	40,000 lbs.
Struck Capacity (cu. ft.)	930 cu. ft.
Struck Capacity (cu. yd.)	34.44 cu. yd.
Struck Capacity w/ Extensions (cu. ft)	1,158 cu. ft.
Heaped Capacity w/ Extensions (cu. ft.)	1,355 cu. ft.
Cycle Time	60-90 seconds
Dump Direction	Left, Right
Dump Height at Pivot	9-15 ft.
Dump Clearance at Pouring	7-13 ft.
Counter Weight	Standard
Tread Width	120-132 in.
Reversible	Yes
Ship Weight	16,000 lbs.
Axle Clearance	20 in.
Axle Placement	4 positions
Lift Cylinders	5 in. and 4 in. primary secondary
Tilt Cylinders	5 in. parallel
Tongue Weight %	8-11%
Recommended Min. Flow	15 gpm
Sideways Reach (lowest)	16 in.
Sideways Reach (highest)	42 in.
Tire Option	30.5L -32 16 Ply Flotation
Wheels	10 bolt
Spindles	4-1/2 inch bolt-in cold rolled
Jack	12,000 lb.
Hitch	Swivel
Weight Scale	Opt.
