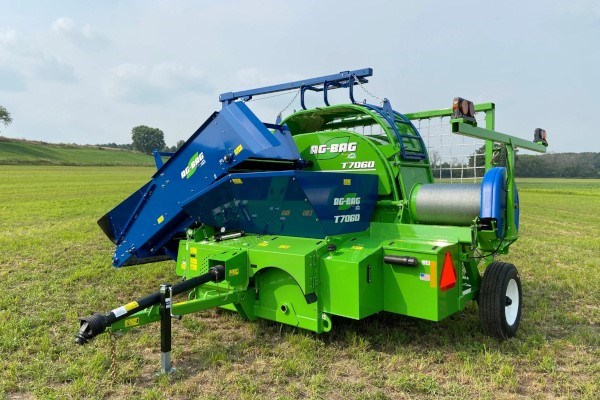

T7270, T7170 & T7060
Overview:
The T-Series Pull Type Ag- Baggers deliver many key features to provide greater capacity, increased efficiency and easy controls. These Ag-Bag models offer options to best suit your forage storage needs whether 6, 8, 9, or 10-foot tunnels, 540 RPM or 1000 RPM or hydraulic lift and sweeping tunnel clean out. These models are built to provide higher quality forage, durability and easy operation.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Revolutionary Rotor
The Revolutionary Rotor has twice as many teeth across the entire rotor taking smaller bites of forage for continuous flow. With smaller bites of forage across the rotor face, this results in greater feedstuff compaction and higher density in Genuine Ag-Bags.
Sweeping Tunnel Cleanout
The hydraulically driven Sweeping Tunnel Cleanout makes finishing the bag so much easier. Simply engage, and the hydraulically driven plate sweeps the remaining crop into the Ag-Bag when finished bagging. The operator pulls forward to finish the bag. This feature reduces labor, time and plastic. Available on the T7270 and T7170 models.
Single Wider Conveyor
The single, wider conveyor is 12-inches wider for more capacity and faster unloading. The conveyor floor is made from stainless steel and reinforced, providing better wear resistance, long service life, reduced maintenance, and increased reliability.
Forage Distributor
The Forage Distributor evenly distributes forage over the entire Revolutionary Rotor for faster unloading and increased capacity of Genuine Ag-Bags. The Forage Distributor is hydraulically driven and features paddle tines at ends to prevent crop build-up.
Integrated Hydraulic Lift System
Standard with the T7270 & T7170, the integrated hydraulic lift system saves time when changing between transport mode and Ag-Bagging mode. Also, manual jacks are included for when a tractor is not available to power the unit.
Removable Stripper Bar Plates
An additional benefit of the sweeping tunnel cleanout is that users have access to this area to replace the stripper bar plates either as one complete plate or in smaller sections.
1000-RPM PTO Planetary
The T7270 features a 1000-RPM PTO planetary driveline rated at 200-horsepower. This powertrain consistently generates smooth, durable power to handle varying crop load and crop types.
Serviceability
Serviceability and operation controls have been designed to give operators easy-to-use controls, easy access for machine upkeep, and a cleaner environment.
The Operator Station includes:
- Conveniently located machine controls
- Grease fitting bank for the entire machine
- Oil bracket to store lubrication for chain maintenance
- Easy to open shields for chain inspection
- Integrated toolbox for convenience and storage
Transportation
The T-Series introduces a better way to transport Ag-Bag Pull Type Ag-Baggers. The hitch has been redesigned changing the towing direction. The tunnel now faces on the side of the road to keep the tunnel out of the on-coming lane of traffic. Drivers have better visibility while maintaining the 8.6-foot travel width.
Tunnels & Tunnel Extensions
The T-Series Ag-Baggers come with a variety of tunnel options including 6, 8, 9, or 10-foot tunnels. With the middle tunnel extension, the crop can be packed against steel for greater density before moving into the Genuine Ag-Bag.
The Feed Quality Solution
Ag-Bag has pioneered the system and the solution for creating the high-quality feed. It goes way beyond simply putting feed in a bag. It means having the right machine, the right packing design, along the bags and inoculants designed to complete the process.
Genuine Ag-Bag Plastic
Ag-Bag Plastic was founded by a group of people dedicated to supplying high-quality plastics. Our highly-trained sales staff and the best raw materials available make us the leading manufacturer of high-quality polyethylene materials. After all, plastics are our business.
Ag-Bag Boost Inoculant
Your forage is more valuable than ever before. Ag-Bag by RCI recommends protecting your forage crop by using Ag-Bag Boost, an enhanced forage inoculant. Both water soluble and dry inoculate are available to protect your forage and ensure top quality feed.
Specifications
| FEATURE | T7060 | T7170 & T7270 |
| DRIVE | ||
| Tractor PTO RPM Rated Speed | 540 | T7170 - 540, T7270 - 1000 |
| Gearbox | Heavy-Duty Comer Gearbox | Heavy-Duty Comer Gearbox |
| Drive Chain | Double 120 Roller Chain | Double 120 Roller Chain |
| Rotor Width | 6' | 7' |
| Number of Rotor Teeth | 108 | 126 |
| Rows of Rotor Teeth | 3 - Revolutionary | 3 - Revolutionary |
| Rotor Bearings (Both Sides) | Footed Spherical 3-7/16" | Footed Spherical 3-7/16" |
| Jackshaft Size and Bearings (Both) | Footed Spherical 3-7/16" | Footed Spherical 3-7/16" |
| CONVEYOR | ||
| Single Wide Chain Conveyor with CA550 Chain | Standard | Standard |
| Hydraulic Conveyor Lift | Standard | Standard |
| HYDRAULICS | ||
| Self-Contained Hydraulics | Standard | Standard |
| External Reservoir | Standard | Standard |
| Hydraulic Jack System | NA | Standard |
| CABLE AND BACKSTOP | ||
| Cable Length (approximate) | 300' Standard | 300' Standard |
| Cable Brakes | Dual Disc Industrial Brake | Dual Disc Industrial Brake |
| Brake Hand Pump | Standard | Standard |
| Hydraulic Cable Rewind | Standard | Standard |
| Steel Backstop with Multiple Pick Points | Standard | Standard |
| Maximum Ag-Bag Length | 300' | 300' |
| TUNNELS AND EXTENSIONS | ||
| 6' Tunnel Top | Yes - Interchangeable | NA |
| 8' Tunnel Top | Yes - Interchangeable | NA |
| 9' Tunnel Top | Yes - Interchangeable | Yes- Interchangeable |
| 10' Tunnel Top | NA | Yes- Interchangeable |
| 6' x 34" Tunnel Extension | Standard with 6' Tunnel Top | NA |
| 8' x 34" Tunnel Extension | Standard with 8' Tunnel Top | NA |
| 9' x 34" Tunnel Extension | Standard with 9' Tunnel Top | Standard with 9' Tunnel Top |
| 10' x 34" Tunnel Extension | NA | Standard with 10' Tunnel Top |
| 8' x 34" Middle Extension | Optional | NA |
| 9' x 34" Middle Extension | Optional | Optional |
| 10' x 34" Middle Extension | NA | Optional |
| Sweeping Tunnel Cleanout | NA | Standard |
| BAG BOOM AND CRADLE | ||
| Bag Boom with Brake Style Winch | Optional for 6' Tunnel - Standard for 8'/9'/10' tunnels | |
| Bag Cradle with Tunnel Lift Capability | Optional for 6' Tunnel - Standard for 8'/9'/10' tunnels | |
| INOCULANT APPLICATION | ||
| Dry or Liquid | Optional | Optional |
| SPECIFICATIONS | ||
| Overall Width (Transport) | 8' 6" | 8' 6" |
| Overall Width (Ag-Bagging) | 20' | 21' |
| Overall Length (Transport) | 19' 2" | 20' 2" |
| Overall Length (Ag-Bagging) (approx) | 12' w/o Ext, 14' w/ Std Ext, 17' w/ Mid Ext | 12' w/o Ext, 14' w/ Std Ext, 17' w/ Mid Ext |
| Overall Transport Height (for farm) | 12' 6" | 12' 6" |
| Overall Transport Height (from factory) | 10' 6" | 10' 6" |
| "Overall Weight (w/9' Tunnel and Mid Ext,approx)" | 11,000 lbs | 12,500 lbs |
| Tongue Weight (w/9' Tunnel and Mid Ext, approx) | 1,600 lbs (Transport) | 1,600 lbs (Transport) |
| Horsepower Minimum | 100 hp | 100 hp |
| Horsepower Maximum | 170 hp | 170 hp |
