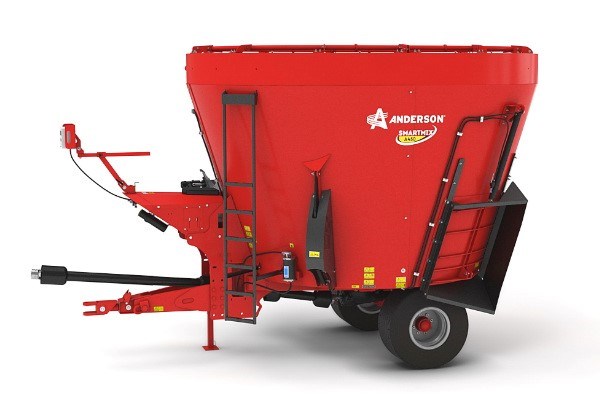

Anderson Group A450ST

Double tap to zoom

Single Augers

A450ST

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

A450st (side trap discharge)
Capacity from 450 ft³ (12.8 m³) to 600 ft³ (17 m³)
HP PTO Requirement: in low speed: minimum 60 HP in high speed: minimum 85 HP
Height of 112 in (2.84 m) to 130 in (3.3 m) with extension
Unloading the material by side trap or front conveyor
1 auger with 12 reversible knives in carbide tungsten

Specifications

Capacity
Capacity (no capacity extension)	450 ft3 (12.8 m3)
6 in capacity extension	500 ft3 (14.2 m3)
12 in capacity extension	550 ft3 (15.6 m3)
18 in capacity extension	600 ft3 (17 m3)
Number of Auger	1
Dimensions
Length (A)	190 in (4.84 m)
Height (B) no extension	112 in (2.84 m)
6 in capacity extension	118 in (3 m)
12 in capacity extension	124 in (3.15 m)
18 in capacity extension	130 in (3.3 m)
Hay retention ring (additionnal height)	0 in / 3,5 in
Width (C)
Without incline conveyor	112 in (2.84 m)
With incline conveyor (retracted)	125 in (3.18 m)
Incline conveyor operating angle (degrees)	26 @39 degrees
Outside width of the wheels	86 in (2.18 m)
Lateral distance to discharge point (D)
Incline conveyor chain / belt 3 ft at min.26 angle /max 40	23-16in at 26º / 20-13in at 40º
Incline conveyor chain / belt 4 ft at min. 26 angle /max 40	40-44in at 26º / 53-53in at 40º
Incline conveyor chain / belt 5 ft at min. 26 angle /max 40	46-50in at 26º / 63-63in at 40º
Incline conveyor chain / belt 6 ft at min. 26 angle /max 40	50-54in at 26º / 69-69in at 40º
Incline conveyor chain / belt 7 ft at min. 26 angle /max 40	56-60in at 26º / 79-79in at 40º
Incline conveyor chain / belt 8 ft at min. 26 angle /max 40	60-64in at 26º / 85-85in at 40º
Discharge height (E)
Incline conveyor chain / belt 3 ft at min. 26 angle /max 40	36-40in at 26º / 46-46in at 40º
Floor ST (E1) / Conveyor FD (E2) to ground	36 in (0.91 m)
Specifications
PTO shaft - Standard specification	540 RPM 1" 3/8 Z6
PTO shaft - Option specification	1000 RP m 1" 3/8 Z21
2 speed Gear Box	Optional
2 Speed Gear Box and ratio	D732, 1;1,5 54in(888cm)0 RPM
Minimum PTO HP Requirement - Low Speed	60
Minimum PTO HP Requirement - High Speed	85
Auger RPM - Low Speed	27 RPM
Auger RPM - Standard High speed	41 RPM
Standard planetary model and ratio configuration	1602 @13.4
Optionnal Planetary	N/A
Floor Thickness (AR235 grade or equivalent)	3/4 in
Sidewall Thickness (AR235 grade or equivalent)	1/4 in
Flighting Thickness (AR235 grade or equivalent)	5/8 in
Standard knives per auger	8 / 12 optional
Driveline security	Shear bolt
Hydraulic flow requirement	10-15 US gal/ m in 37-56 L/ m in
Hydraulic pressure	160-200 bar (2300-2900 psi)
Load cell	3
Scale system	DG500 (standard)
Machine Weight (empty) - STD configuration	8765 lb (3975 kg)
Utility load capacity	13 050 lb (59in(150cm)18 kg)
Axle - Standard specifications	Single
Axle - Optional specifications	N/A
Wheels - Standard specifications	15.0/55-17 26 PLY
