Twin Augers
A700FD
Overview:

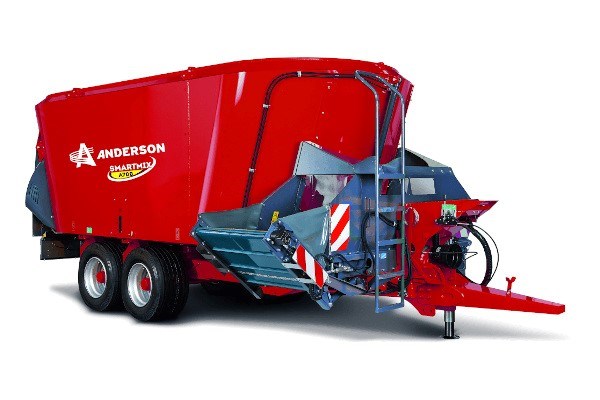

The pull type twin auger A700 mixer (conveyor discharge) is designed for intensive daily use. These mixers are adaptable depending on the configuration of the operation and the type of farming . The solution for every size farm.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Capacity 695 ft³ to ft³
- Reinforced tub floor provides longevity of the tub and also to the load cells by equalizing the weight uniformly.
- TRI-CUT™, auger with 2-position adjustable and reversible knives (10 standard) and 2 sweeping dispensers ensuring a 30% faster and more consistent discharge.
- Discharge options: Side trap or front conveyor.
- Carbide treated self-sharpening tungsten knives.
- Industry’s first hydraulic TRUE-CUT™ restrictor blades allows the operator to engage and disengage during the mixing process preventing all risks of over processing feed.
- The DG500 indicator is a universal, programmable weighing indicator for recipes, dispensing and data storage. It guarantees an extremely precise weighing thanks to the protected load cells and strategically located under the tank. Compatible with the DTM suite.
- 4-point scale system.
- Rolled side walls (not bent) for better flow of material, avoiding restriction around auger and naturally increased sturdiness.
- SMART CONTROL remote control (optional) provides you full wireless control to: customize weighing system and recipe, hydraulics, speed of belt etc.
- Optional 2 speed gearbox.
Specifications
| Capacity | |
| Capacity (no capacity extension) | 700 ft3 (19.8 m3) |
| 6 in capacity extension | 770 ft3 (21.8 m3) |
| 12 in capacity extension | 840 ft3 (23.8 m3) |
| 18 in capacity extension | 910 ft3 (25.8 m3) |
| Number of Auger | 2 |
| Dimensions | |
| Length (A) | 309 in (7.86 m) |
| Height (B) no extension | 110 in (2.79 m) |
| 6 in capacity extension | 116 in (2.95 m) |
| 12 in capacity extension | 121 in (3.07 m) |
| 18 in capacity extension | 128 in (3.25 m) |
| Hay retention ring (additionnal height) | 0 in / 3,5 in |
| Width (C) | |
| Without incline conveyor | 101 in (2.57 m) |
| With incline conveyor (retracted) | 117 in (2.97 m) |
| Incline conveyor operating angle (degrees) | 26 @ 39 |
| Outside width of the wheels | 100 in (2.54in(888cm) m) |
| Lateral distance to discharge point (D) | |
| Incline conveyor chain / belt 3 ft at min.26 angle /max 40 | 30-28in at 26º / 28-25in at 40º |
| Incline conveyor chain / belt 4 ft at min. 26 angle /max 40 | 45-47in at 26º / 56-56in at 40º |
| Incline conveyor chain / belt 5 ft at min. 26 angle /max 40 | 52-54in at 26º / 67-67in at 40º |
| Incline conveyor chain / belt 6 ft at min. 26 angle /max 40 | 56-58in at 26º / 73-73in at 40º |
| Incline conveyor chain / belt 7 ft at min. 26 angle /max 40 | 60-64in at 26º / 83-83in at 40º |
| Incline conveyor chain / belt 8 ft at min. 26 angle /max 40 | 63-65in at 26º / 90-90in at 40º |
| Discharge height (E) | |
| Incline conveyor chain / belt 3 ft at min. 26 angle /max 40 | 41-43in at 26º / 50-50in at 40º |
| Floor ST (E1) / Conveyor FD (E2) to ground | 34 in (0.86 m) |
| Specifications | |
| PTO shaft - Standard specification | 1000 RPM 1" 3/8 Z21 |
| PTO shaft - Option specification | 1000 RPM 1"3/4 Z20 54in(888cm)0 RPM 1" 3/8 Z6 |
| 2 speed Gear Box | Optional |
| 2 Speed Gear Box and ratio | C3A-R, 1;1,5 54in(888cm)0 RPM C3A-R, 1,8;2,7 1000 RPM |
| Minimum PTO HP Requirement - Low Speed | 100 |
| Minimum PTO HP Requirement - High Speed | 150 |
| Auger RPM - Low Speed | 27 RPM |
| Auger RPM - Standard High speed | 41 RPM |
| Standard planetary model and ratio configuration | 2003 @25.89 |
| Optionnal Planetary | 2002 @ 13.4 54in(888cm)0 RPM |
| Floor Thickness (AR235 grade or equivalent) | 3/4 in |
| Sidewall Thickness (AR235 grade or equivalent) | 1/4 in |
| Flighting Thickness (AR235 grade or equivalent) | 5/8 in |
| Standard knives per auger | 6 / 10 optional |
| Driveline security | Shear bolt |
| Hydraulic flow requirement | 10-15 US gal/ min 37-56 L/ min |
| Hydraulic pressure | 160-200 bars (2300-2900 psi) |
| Load cell | 4 |
| Scale system | DG500 (standard) |
| Machine Weight (empty) - STD configuration | 17 117 lb (7763 kg) |
| Utility load capacity | 20 300 lb (9206 kg) |
| Axle - Standard specifications | Single |
| Axle - Optional specifications | Tandem |
| Wheels - Standard specifications | 275/70R22.5 (DOUBLE) |
