Anderson Group S520ST

Double tap to zoom

Twin Augers

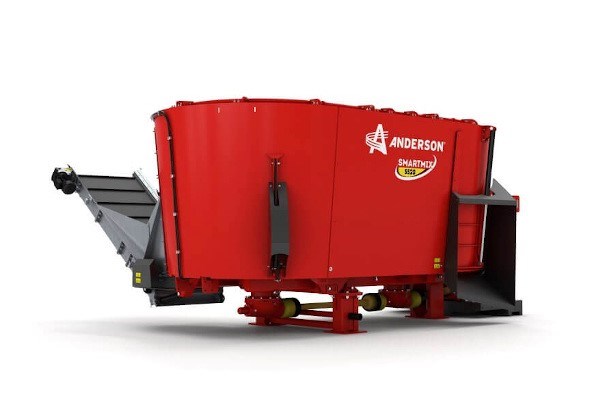

S520ST

Overview:

The Anderson stationary type S520ST twin auger mixer (side trap discharge) has the ability to mix the widest variety of ingredients. Process large amount of hay, even complete square and round bales of baleage. Whether your rations are designed to increase milk production of dairy cows or minimize variation in feed for each group you feed, vertical mixer will help optimize the dry matter and nutrient intake of your herd.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Capacity 520 ft³ (14,7 m³ ) to 682 ft³ (19,3 m³ )
Unloading material by side trap
Height 98 in (2,5 m) to 116 in (2,95 m) with extension
2 augers with 6 reversible knives each in carbide tungsten (10 knives per auger, optional)
Power unit 60 HP

Specifications

Capacity
Capacity (no capacity extension)	520 ft3 (14,7 m3)
6 in capacity extension	574 ft3 (16,3 m3)
12 in capacity extension	628 ft3 (17,8 m3)
18 in capacity extension	682 ft3 (19,3 m3)
Number of Auger	2
Dimensions
Length (A)	208 in (5,27 m)
Height (B) no extension	98 in (2,5 m)
6 in capacity extension	104 in (2,65 m)
12 in capacity extension	110 in (2,8 m)
18 in capacity extension	116 in (2,95 m)
Hay retention ring (additionnal height)	0 in / 3,5 in
Width (C)
Without incline conveyor	101 in (2,57 m)
With incline conveyor (retracted)	115 in (2,92 m)
Incline conveyor operating angle (degrees)	23 @ 39
Lateral distance to discharge inint (D)
Incline conveyor 3ft Chain-Belt 26°	29in(74cm) -33in(83cm)
Incline conveyor 4ft Chain-Belt 26°	33in(83cm) -37in(94cm)
Incline conveyor 5ft Chain-Belt 26°	39in(99cm) -43in(109cm)
Incline conveyor 6ft Chain-Belt 26°	43in(109cm) -47in(119cm)
Incline conveyor 7ft Chain-Belt 26°	49in(124cm) -53in(135cm)
Incline conveyor 8ft Chain-Belt 26°	53in(135cm) -57in(145cm)
Incline conveyor 3ft Chain-Belt 40°	39in(99cm) -39in(99cm)
Incline conveyor 4ft Chain-Belt 40°	46in(117cm) -46in(117cm)
Incline conveyor 5ft Chain-Belt 40°	56in(142cm) -56in(142cm)
Incline conveyor 6ft Chain-Belt 40°	62in(157cm) -62in(157cm)
Incline conveyor 7ft Chain-Belt 40°	72in(183cm) -72in(183cm)
Incline conveyor 8ft Chain-Belt 40°	79in(201cm) -79in(201cm)
Discharge height (E3)
Floor ST (E1) / Conveyor FD (E2) to ground	33 in (0,84 m)
Specifications
PTO shaft - Standard specification	540 RPM 1'' 3/8 Z6
Minimum PTO HP Requirement - High Speed	60
Auger RPM - Standard High speed	17 RPM
Standard planetary model and ratio configuration	1603 @25,89
Floor Thickness (AR235 grade or equivalent)	5/8 in
Sidewall Thickness (AR235 grade or equivalent)	1/4 in
Flighting Thickness (AR235 grade or equivalent)	5/8 in
Standard knives per auger	6 / 10 optional
Driveline security	Shear bolt
Load cell	3
Scale system	Option DG500
Machine Weight (empty) - STD configuration	12 431 lb (5638 kg)
Utility load capacity	15 080 lb (6839 kg)
