Trailers Round Bales

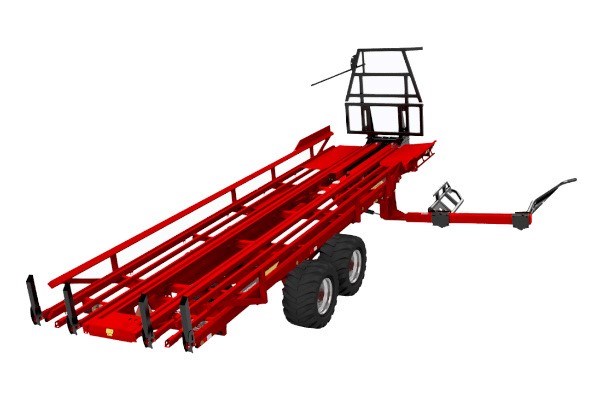

RBM2000

Overview:

These self-loading trailers are designed to collect up to 20 round bales of wet or dry hay in a simpler and faster way. Reliable durability and optimum machine handling offers unmatched efficiency in the field.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

High flotation tires.
Adjustable self-loading arm tubular round-shaped designed for bale net protection.
Hydraulic unloading system.
Hydraulic push off system.
Full charge indicator.
Tandem axle.
Rugged frame to support wet bales.

Specifications

Bale
Round bale diameter	Up to 6 ft (1,8 m)
Square bale	n/a
Bale type	Baleage/dry hay/straw
Specifications
Tandem axle	Standard
Tandem axle with brakes	Optional
Self-Steering axle with brakes	Optional
Safety chain	Standard
Self-loading arm design	Tubular round
Able to load a second row of bales	Telescopic
Tires	550/45-22,5
Caméra (de recul)	Optional
Tractor minimum hydraulic flow	2500 psi (172 bar)
HP requirements	130 HP
Tractor outlets required	8 x 1/2" male quick couplersn(4 if with fingertip joystick option)
PTO Speed/ PTO shaft	N/A
Controls	Tractor's hydraulics (option : fingertip joystick)
Dimensions
Width - A	8 ft 4 in (2,55 m)
Overall width (inlcuding loading arm)	8 ft 4 in (2,55 m)
Height - B	11 ft 10 in (3,61 m)
Overall height (inlcuding loading arm)	12 pi (3,66 m)
Bed height - E	4 pi 9 po (1,44 m)
Overall length - D	38 pi 5 po (11,76 m)
Overall weight	13450 lb (6100 kg)
Empty Weight on tow bar***	3205 lb (1455 kg)
Capacity
Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m)	20
Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m)	20
Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m)	20
Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m)	17
Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m)	17
Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m)	n/a
Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m)	n/a
Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m)	n/a
Loading arm lifting capacity	2500 lb (1135 kg)
Total weight including load	42 000 lb (19 000 kg)
