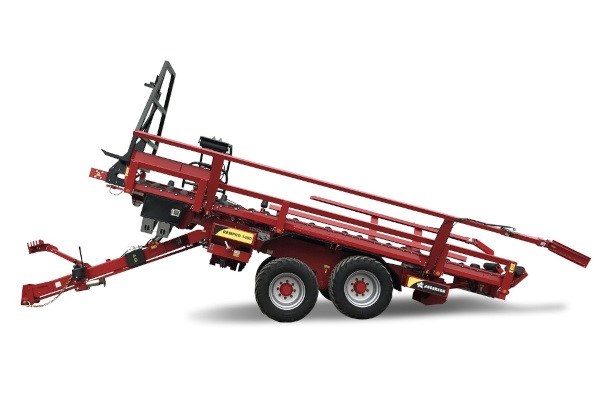

RBMPRO 1400

Overview:

The Anderson Group is proud to introduce the world’s first self-loading bale carrier capable of handling efficiently wrapped silage bales. The RBMPRO series can move nearly twice as many bales as any traditional platform system. It reduces the time spent in the field, the labor, as well as the fuel consumption. This allows more time for the farmer or the contractor to spend it where it counts! Finally, the superior productivity of the RBMPRO series helps to free the field as quickly as the baler passes through it, all without risks of breaking the plastic.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Possibility of collecting bales on their flat or round edge
Bale loading speed: 6 minutes for 14 bales
Unloading in 45 seconds
Fully automated (little operator experience required)
Touch screen with self-diagnostic system
Danfoss hydraulics
Patented design
Monitoring of customer statistics (perfect for contractors)

Specifications

Bale
Round bale diameter	Up to 5 ft (1,5 m)
Square bale	n/a
Bale type	Baleage/dry hay/straw
Specifications
Tandem axle	Standard
Tandem axle with brakes	Optional
Self-Steering axle with brakes	Optional
Safety chain	Standard
Self-loading arm design	Tubular round
Able to load a second row of bales	Telescopic arm
Tires	550/45-22,5
Caméra (de recul)	Standard
Tractor minimum hydraulic flow	2800 psi (190 bar)
HP requirements	130 HP
Tractor outlets required	4 x 1/2" male quick couplersn1 x 3/8" male hydraulic quick coupler (LS)n1 x 3/4" male hydraulic quick couplern1 x 3/4" Female Hydraulic Quick Coupler (Free Return)
PTO Speed/ PTO shaft	N/A
Controls	Touchscreen display
Dimensions
Width - A	8 ft 4 in (2,55 m)
Overall width (inlcuding loading arm)	8 ft 4 in (2,55 m)
Height - B	12 ft 2 in (3.71m)
Overall height (inlcuding loading arm)	12 pi6 po (3.81m)
Bed height - E	5 pi (1,55 m)
Overall length - D	30 pi 5 po (9,27 m)
Overall weight	13 225 lb (6000 kg)
Empty Weight on tow bar***	2380 lb (1080 kg)
Capacity
Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m)	10 in two rows side by siden13 or 14 in three pyramidal rows (dry or straw)1
Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m)	10 in two rows side by siden13 or 14 in three pyramidal rows (dry or straw)1
Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m)	n/a
Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m)	8 in two rows side by siden10 or 11 in three pyramidal rows (dry or straw)1
Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m)	n/a
Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m)	n/a
Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m)	n/a
Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m)	n/a
Loading arm lifting capacity	2500 lb (1135 kg)
Total weight including load	42 000 lb (19 000 kg)
