Anderson Group TSR3450

Double tap to zoom

Trailers Square Bales

TSR3450

Overview:

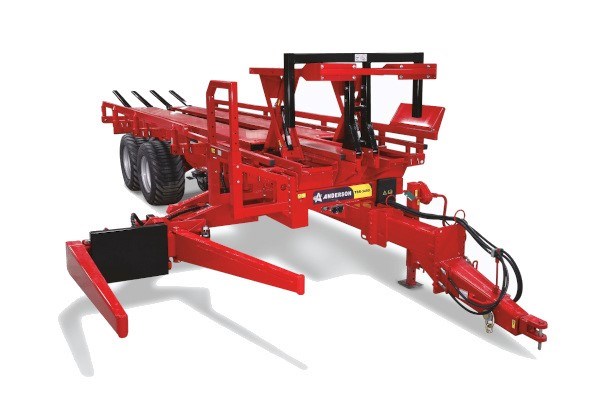

The TSR3450 is a self-loading bale carrier enabling you to pick up and carry square bales quickly and effectively. Completely remote controled from the safety and comfort of cab of your tractor. The rugged frame and steel bed will support wet and dry bales. The adjustable bale clamp allows you to load different size bale sizes. The TSR3450 has no comparison.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

High flotation tires.
Adjustable self-loading arm tubular round-shaped designed for bale net protection.
Hydraulic unloading system.
Hydraulic push off system.
Full charge indicator.
Tandem axle.
Rugged frame to support wet bales.

Specifications

Bale
Round bale diameter	n/a
Square bale	Up to 4 ft x 4 ft (120 cm x 120 cm)
Bale type	Baleage/dry hay/straw
Specifications
Tandem axle	Standard
Tandem axle with brakes	Optional
Self-Steering axle with brakes	n/a
Safety chain	Standard
Self-loading arm design	Hydraulic clamp
Able to load a second row of bales	Scisor platform
Tires	550/45-22,5
Caméra (de recul)	n/a
Tractor minimum hydraulic flow	2500 psi (172 bar)
HP requirements	130 HP
Tractor outlets required	4 x 1/2" male quick couplers
PTO Speed/ PTO shaft	n/a
Controls	Fingertip joystick
Dimensions
Width - A	8 ft 6 po (2,6 m)
Overall width (inlcuding loading arm)	9 ft 10 in (3 m)
Height - B	7 ft 10 in (2,4 m)
Overall height (inlcuding loading arm)	9 pi 10 po (3 m)
Bed height - E	4 pi 7 po (1,4 m)
Overall length - D	37 pi 9 po (11,5 m)
Overall weight	13 650 lb (6200 kg)
Empty Weight on tow bar***	4530 lb (2055 kg)
Capacity
Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m)	n/a
Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m)	n/a
Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m)	n/a
Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m)	n/a
Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m)	n/a
Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m)	19
Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m)	14
Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m)	7
Loading arm lifting capacity	2200 lb (1000 kg)
Total weight including load	42 000 lb (19 000 kg)
