Single Bale Wrappers

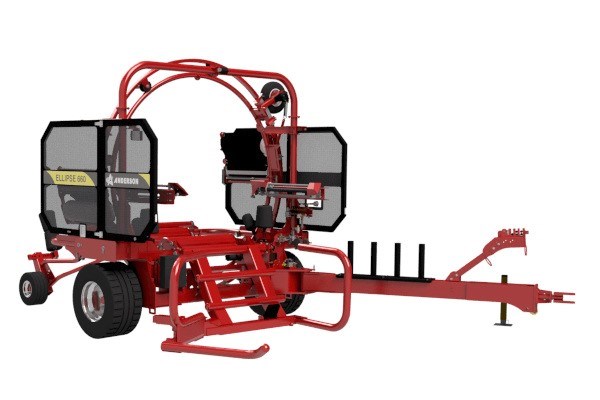

Ellipse 660
Overview:
Why buy the Ellipse 660?
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Increased wrapping cycle time compared with turn-table individual wrapper
To speed up bale wrapping using conventional single bale wrapping, you need to increase the wrapping table’s rotation speed. But this can be problematic when faced with large, oddly shaped bales like cones or sags, as you must keep the table’s RPM under 20-23 to avoid ejecting the bales. It is not an issue with the Ellipse as it provides a wrapping cycle time of less than a minute (loading, wrapping, unloading). - Not limited in bale size
The Ellipse is the only machine designed to perform well at wrapping bales 5 feet wide by 5’6 inches in diameter. - Rear bale guide
While unloading the bale, the rear wrapping guide descends to softly set the wrapped bale on the ground - Fastest wrapping process
The ELLIPSE660 wrapping cycle time is less than a minute (loading, wrapping, unloading).As the lifting arm moves the bale onto the wrapping platform, the front roller lowers to reduce the vertical distance the bale travels to reach the wrapping area. This setup ensures a smooth and efficient transition, reducing stress on the equipment. Furthermore, even if the wrapping process remains unfinished, you have the flexibility to transport a bale using the loading arm while in progress. - Bale guide
The bale guides adjusts to the bale’s size, ensuring consistent plastic application to the bale for precise and uniform wrapping every time. The Ellipse wrapper’s bale guides effortlessly covers bales sized up to 5,5 feet. - Robust Lifting arm
The sturdy lifting arm mechanism can transport one bale while wrapping another, resulting in increased productivity. - Cut & Hold System
Once the wrapping cycle ends, the hydraulic-powered cut & Hold system slices the film and securely maintains it in place, preparing for the next bale to be wrapped. - Plastic film watch
A film watch detection system is there to constantly observes the plastic as it exits the rolls. In the event of a plastic rupture or failure of any sort, the machine will send an alert to the operator through the control panel. - Additional film storage
The Ellipse has the capacity to transport 6 film rolls: 2 rolls within the dispensers and an extra 4 rolls stored in the film storage section.
Specifications
| Bales | |
| Round bale diameter | Up to 5'6" (1.65m) |
| Round bale length | Up to 5 ft (1.5 m) |
| Square bale | N/A |
| Wrapping speed | Up to 75 bales/h |
| Wrapping process | Automatic |
| Mode | Pulled behind |
| Specification | |
| Aluminum film stretcher | 2 x 30" |
| Engine | N/A |
| Bale dumper | 2 position series ball flipper for bales of 4 and 5 feet |
| Bale guides rollers | Standard |
| Leveling system | N/A |
| Road lights | For tractor |
| Night Work lights | Standard |
| Tires | 15.0/55-17 14PRTL |
| High floatation Tires | Standard |
| Plastic cut & hold system | Hydraulic |
| Self-loading arm | Standard |
| Electronic bale counter | Standard |
| Tractor Minimum Hydraulic Flow | 15 gpm (57 liters/min) |
| Tractor Minimum Hydraulic Pressure | 2500 psi (172 bar) |
| Hydraulic connections | Option 1: Load sensing and pump output + 1 hydraulic output + free returnnOption 2: 2 hydraulic outputs + free return" |
| Dimensions | |
| Overall width - B | 23 ft 1 in (7.04 m) |
| Overall height - C | 9 ft 10 in (2.97 m) |
| Overall length - A | 10 ft 7 in (3.22 m) |
| Overall weight | 5780 lbs |
