Single Bale Wrappers

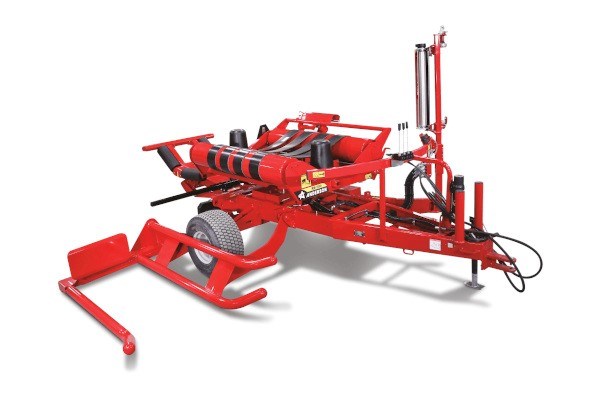

RB580

Overview:

Make sure all your hard work does not go to waste, wrap individual silage bales with the RB580. The aluminium stretcher maintains a consistent stretch, which maximises film usage. This model provides the most consistent wrapping system and smoothest lowering of the bale to the ground at the same time eliminating stress on the machine.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Loading arm that rotates the bale and loads it onto the wrapper. It allows the operator to load the bale and wrap it while moving to the next.
Bale receiver 3 positions, deposits the bale on the ground, on one of the two sides or standing. It unloads the bale to the right, to the left or to the rear when you wrap on a slope, will let it roll gently directly to the ground.
Electronic bale counter.
Designed for field wrapping, it can follow the baler with its loading arm.
Manual wrapping process via the hydraulic controls of the tractor
Mechanical plastic cutting system that holds the plastic in place and automatically cuts it at the end of the cycle.

Specifications

Bales
Round bale diameter	Up to 6' (1,8 m)
Round bale length	Up to 5' (1,5 m)
Square bale	n/a
Wrapping speed	Up to 40 bales/h
Wrapping process	Manual
Mode	Pulled behind
Specification
Aluminum film stretcher	1 × 30" (750 mm)
Engine
Bale dumper	3 positions
Bale guides rollers	Standard
Leveling system	N/A
Road lights	For tractor
Night Work lights	N/A
Tires	26 x 12-12 (300/60-12)
High floatation Tires	Standard
Plastic cut & hold system	Mechanical
Self-loading arm	Standard
Electronic bale counter	Standard
Tractor Minimum Hydraulic Flow	9 gal/min (30 litres/min)
Tractor Minimum Hydraulic Pressure	2200 psi (152 bar)
Hydraulic connections	4 x 1/2" male quick couplers
Dimensions
Overall width - B	15 ft 7 in (4,77 m)
Overall height - C	8 ft 5 in (2,56 m)
Overall length - A	9 ft 8 in (2,98 m)
Overall weight	3703 lb (1680 kg)
