Anderson Group Wraptor

Double tap to zoom

Wrapper

Wraptor

Overview:

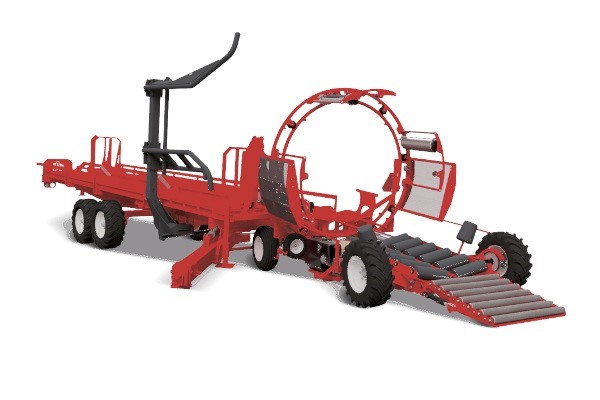

The high-performance WRAPTOR™ is the combination of a self-loading trailer and an in-line wrapper. When labor is hard to fi nd or you need to do things quickly, this all-in-one system allows you to do the transportation and wrapping with only one operator and one tractor. The WRAPTOR™ is the ultimate system for loading, transporting and wrapping. Designed for collecting wet or dry hay, it offers the fastest performance on the market.The trailer collects and transports 14 bales (4 ft × 4 ft.) at a time and attaches to the wrapper without additional equipment. The remote control offers the possibility to do everything from the seat of the tractor.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Pick-up and transport faster with one operator.
Tilting tow bar for easy hook-up to the wrapper.
Bale pusher for quickly pushing and unloading bales.
4 stretchers replace rolls less often, wrap faster.
Adjustable self-loading arm tubular round-shaped designed for bale net protection.
Bale guide rollers. Keep each bale centered on the roller bed when wrapping on a slope.
Hydraulic jack leveling system. Insures the 2 first bales stay together until lowered down to the ground.

Specifications

Wrapper dimensions
Width	9' 6" (2.8 m)
Overall width - A	In transport mode 8' 5" (2.5 m)
Height - B	9' 7" (2.9 m)
Overall height - C	9' 7" (2.9 m)
Bed height	n/a
Overall length - D	14' 6" (4.4 m)
Overall weight	3571 lb (1620 kg)
Trailer dimensions
Width	8' 4" (2.5 m)
Overall width (inlcuding loading arm) - A	9' 8" (3 m)
Height - B	8' 8" (2.7 m)
Overall height (inlcuding loading arm) - C	12' (3.6 m)
Bed height	4' 6" (1.4 m)
Overall length - D	41' 3" (12.6 m)
Overall weight	10800 lb (4870 kg)
Bale
Round bale diameter	Up to 5' (1.5 m)
Square bale	n/a
Bale type	Baleage & dry hay
Wrapper specifications
Aluminum film stretcher	4 × 30" (750 mm)
Engine	13 HP Honda
Final bale push off	With the trailer pusher
Bed shape	V-shaped for round bales
Bale guides for alignment	Adjustable
Bale guides rollers	2
Leveling system	Hydraulic jack
Road lights for tractor	Standard
Hoop speed	Adj. flow control valve
Traction Tires	29 × 12.5-15
Rear tires	11 L-15
Hydraulic tail gate	Standard
Auto-locking wheels	Standard
Adjustable hydraulic compaction system	Standard
Plastic film watch	n/a
Working light	n/a
Remote control wrapping	Standard
Large fuel Tank	n/a
Automatic pilot sensors	n/a
20HP Honda engine	n/a
Trailer specifications
Loading capacity on axle (including bale carrier weight)	40000 lb (18143 kg)
Hydraulic unloading	Standard
Pusher travel stoke	5' 1" à 7' (1.5 à 2.1 m)
Hydraulic push ramp system	Standard
Full charge indicator	Standard
Double plate hitch	Standard
Road lights	Standard
Steerable Tandem axle	Standard
Self-loading arm design	Tubular round
Tilting tow bar for easy hook-up to wrapper	Standard
Adjustable lateral ramp according to bale dimension	Standard
Camera	Standard
Tires	550/45-22.5
Minimum Hydraulic Flow	10 Gal/min (37 litres/min)
Minimum Hydraulic Pressure	2200 psi (152 bar)
Minimum HP requiements	100 HP
Remote outlets required	2
