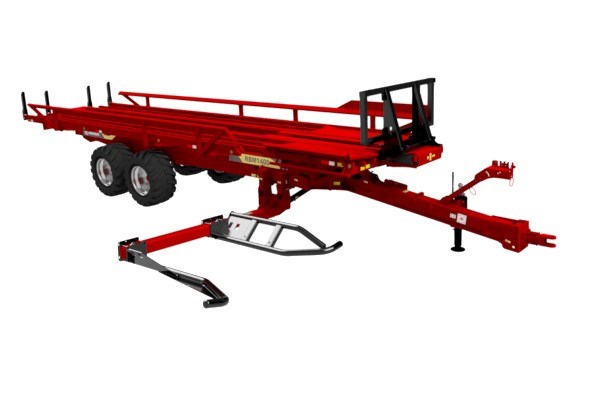

Anderson Group RBM1400

Double tap to zoom



Features

  • High flotation tires.
  • Adjustable self-loading arm tubular round-shaped designed for bale net protection.
  • Hydraulic unloading system.
  • Hydraulic push off system.
  • Full charge indicator.
  • Tandem axle.
  • Rugged frame to support wet bales.



Specifications

Dimensions
Width 8' 5" (2.6 m)
Overall width (including loading arm) 9' 5" (2.9 m)
Height 7' 7" (2.4 m)
Overall height (including loading arm) 12' 1" (3.6 m)
Bed height 3' 9" (1.2 m)
Overall length 33' 5" (10.2 m)
Overall weight 4620 kg (10185 lb)
Weight on tow bar 1185 kg (2608 lb)
Bale
Round bale diameter Up to 5' (1.5 m)
Round bale diameter (with side extension option) Up to 5' 6" (1.65 m)
Square bale n/a
Bale type Baleage & dry hay
Specifications
Loading capacity on axle (including bale carrier weight) 18 144 kg (40 000 lb)
Hydraulic unloading Standard
Unloading angle 35°
Pusher travel stroke 6' 5" (1.98 m)
Hydraulic push ramp system Standard
Full charge indicator Standard
Double plate hitch Standard
Road lights Standard
Tandem axle Standard
Safety chain Standard
Self-loading arm design Tubular round
Able to load a second row of bales n/a
Pole extension n/a
Tires 550/45-22.5
Tractor Minimum Hydraulic Flow 10 Gal/min (37 liters/min)
Tractor Minimum Hydraulic Pressure 2200 psi
Tractor Minimum HP requirements 100 HP
Tractor Remote outlets required 3
PTO Speed / PTO shaft n/a
Capacity
Round bale 4' × 4' diameter (1.2 m × 1.2 m) 14
Round bale 4' × 5' diameter ( 1.2 m × 1.5 m) 14
Round bale 4' × 5' 6" diameter (1.2 m × 1.6 m) 14 **
Round bale 5' × 5" diameter ( 1.5 m × 1.5 m) 12 *
Round bale 5' × 5' 6" diameter (1.5 m × 1.6 m) 12 */**
Square bale 3' × 3' × 8' long (90 cm × 90 cm × 2.4 m) n/a
Square bale 4' × 3' × 8' long (1.2 m × 90 cm × 2.4 m) n/a
Square bale 4' × 4' × 8' long (1.2 m × 1.2 m × 2.4 m) n/a
Maximum loading capacity (lb) 30 000 lb
Maximum weight per round bale (lb) (4' × 4/4' × 5'/4 × 5' 6") 2143 lb
Maximum weight per round bale (lb) (5' × 5'/5 × 5' 6") 2500 lb
Maximum weight per square bale (lb) (3' × 3') n/a
Maximum weight per square bale (lb) (4' × 3') n/a
Maximum weight per square bale (lb) (4' × 4') n/a
Bales per hour transported
On a distance of 0.62 mile 3' × 4' 65
On a distance of 1.24 mile 3' × 4' 45
On a distance of 1.86 mile 3' × 4' 34
On a distance of 2.48 miles 3' × 4' 27
On a distance of 3.10 miles 3' × 4' 23
