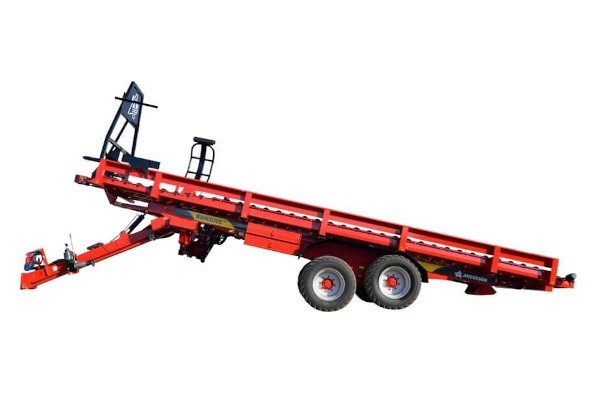

Anderson Group RBMPRO 2000

Double tap to zoom



Features

ADJUSTABLE ROLLER BED PLATFORM
The adjustable roller bed platform allows the bales to be handled without stretching or damaging the plastic film of wrapped bales. Also for larger round bales, the operator can hydraulically enlarge the width of trailer bed to separate the two rows of bales sitting on the platform.

IN MOTION LOADING TECHNOLOGY
We know that time matters, specially on farms where pressure to be more productive at lower cost is critical for the success of the operation. The “In Motion Loading System” designed by Anderson prevents the operator having to
stop the tractor to a complete standstill when grabbing the bale during the initial loading stage. In fact, as soon as the grabber gets in contact with the bale, the loading arm will automatically do a backward movement allowing it to squeeze
the bale and lift it off the ground without dragging it, while the tractor is still moving at a maximum speed of 3km/h. In between bales, the tractor operator can easily speed up to the next bale. The “In Motion Loading System” improves
the productity by eliminating the down time, and requires less concentration and efforts from the operator. Finally, this feature ensures an effective loading process that prevents the bales being dragged on the ground therefore eliminating the
risk of plastic film being damaged.

PLASTIC CARE LOADING ARM
The RBM2000 PRO features a plastic care loading arm which handles each bale smoothly and prevents plastic puncturation during all stages of the loading, transporting and unloading process.

ROTATING GRABBER AND LOADING ARM
The RBM2000 PRO has been designed to pick up wrapped single bales standing up vertically on their flat end. Most of single wrapper or Combi-Baler will leave bales in the field laying in both these positions. In order to be versatile
in any situation, the RBM2000 PRO is designed with a rotating grabber.

With a simple activation on the touch-screen monitor, the operator can rotate the grabber to pick up quickly and effortlessly any bale size in any position.

LOADING THIRD ROW OF BALES
The RBM2000 PRO also features a “Telescopic Loading Arm” which can load a thrid row of bales therefore saving travelling between field and farm by carring up to 20 bales per trip.

REAR HYDRAULIC STOPPER ROLLER
The RBM2000 PRO also features a “Rear Hydraulic Stopper Roller” to avoid the bales rolling off the platform during loading and transportation from the field to the storage site. This rear hydraulic stopper roller is retracted
just before the tilting of the platform, which will let the bale slide gently towards the back and onto the ground.

FULLY AUTOMATED LOADING SYSTEM
The fully automated Loading Process through a Danfoss Plus 1 Controller and Danfoss DP720 touchscreen monitor requires no human interaction during the loading phase. In fact, the loading arm is equipped with a bale sensor that will
initiate the loading sequence as soon as it hits a bale. The tractor operator simply drives to the next bale and lets the RBM2000 PRO do the work. This feature also reduces the need for skillful operators and can be conducted by anyone.

UNLOADING BALES VERTICALLY AND HORIZONTALLY
This bale mover allows you to unload wrapped bales either on their side or on their flat end by simply laying them down gently eliminating the risk of plastic film damage.

REDUCED SOIL COMPACTION
One of the benefits of the RBM2000 PRO is the reduction of soil compaction related to moving silage bales off a field. The RBM2000 PRO as been designed to pick up the bales in the same direction the hay equipment, and the baler travels
in the field. By following the same path, soil compaction is reduced to its minimum and profits to higher yield crop down the road.

Specifications

Dimensions
Width 8' 5" (2,55 m)
Overall width (including loading arm) 8' 5" (2,55 m)
Height 12' 3" (3,73 m)
Overall height (including loading arm) 12' 3" (3,73 m)
Bed height 5' 2" (1,57 m)
Overall length - 38' 8" (11,77 m)
Overall weight 14500 lb (6577 kg)
Weight on tow bar 3186 lb (1445 kg)
Bale
Round bale diameter 5' (1,5 m)
Round bale diameter (with side extension option) 5' (1,5 m)
Square bale n/a
Bale type wrapped Baleage & dry hay
Specifications
Loading capacity on axle (including bale carrier weight) 48000 lb (21 772 kg)
Hydraulic unloading 15°
Unloading angle 29' 2" (8,89 m)
Pusher travel stroke Automatic
Hydraulic push ramp system Standard
Full charge indicator Standard
Double plate hitch Standard
Road lights Standard
Tandem axle Standard
Safety chain Grabber
Self-loading arm design Standard
Able to load a second row of bales n/a
Pole extension 550/45-22,5
Tires 15 Gal/min (60 liters/min)
Tractor Minimum Hydraulic Flow 2500 psi
Tractor Minimum Hydraulic Pressure 130 HP
Tractor Minimum HP requirements 2
Tractor Remote outlets required n/a
Capacity
Round bale 4' × 5' diameter ( 1.2 m × 1.5 m) 20
Round bale 4' × 5' 6" diameter (1.2 m × 1.6 m) 20
Round bale 5' × 5' 6" diameter (1.5 m × 1.6 m) 17
Maximum weight per round bale (lb) (4' × 4/4' × 5'/4 × 5' 6") 33500 lb (15195 kg)
Maximum weight per round bale (lb) (5' × 5'/5 × 5' 6") 2500 lb (1134 kg)
Maximum weight per square bale (lb) (3' × 3') 2500 lb (1134 kg)
