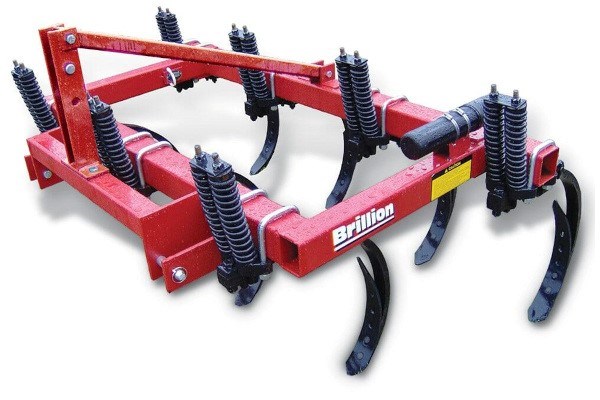

Brillion CPPS21-5

Double tap to zoom

2-Bar Mounted Models

CPPS21-5

Overview:

With its 5 and 7 shank sizes, the 2-Bar Mounted Chisel Plow fits into smaller operations and niche markets around the country. The 2-Bar frame allows for handy maneuvering and easy pulling in the field. The 2-Bar Mounted models are available with a choice of rigid or dual nested spring resets; gauge wheels are offered as optional equipment.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Three-Point Hitch - Cat. II Free Link
Three-Point Hitch - Cat. II, IIIN Quick Coupler Hitch
All Welded Steel Frame
Optional Gauge Wheel Kits Available
27.5" Under Frame Clearance
Dual Nested Spring Shank or Rigid Shank Assemblies
12" Shank Spacing
12" Maximum Shank Working Depth
2" Reversible Points or 3" Reversible Twisted Points Available
Powder Coat Paint

Specifications

Model	CPPS21-5
Approximate Weight	590 lbs. (268 kg)
Working Width	5 ft. 0 in. (1.5 m)
Transport Width	6 ft. 6 in. (2.0 m)
Transport Height	4 ft. 0 in. (1.2 m)
Overall Length	5 ft. 3 in. (1.6 m)
Number of Shanks	5
Shank Mount	Dual Nested Spring
Shank Size	1 in. x 2 in. x 26 in. (25.4 x 50.8 x 660 mm)
Shank Spacing	12 in. (300 mm)
Shank Working Depth	Maximum 12 in. (300 mm)
Spring Pressure / Trip Resistance	550 lbs. to 825 lbs. (248 kg to 371 kg)
Shank Trip Height	5.5 in. (138 mm)
Chisel Points Available	2 in. (50.8 mm) Reversible Point or 3 in. (76.2 mm) Reversible Twisted Point
Under Frame Clearance	27.5 in. (688 mm)
Frame Structure	4 in. x 4 in. x .187 in. (100 x 100 x 4.67 mm)
Three-Point Hitch	Cat. II Free Link; Cat. II, IIIN Quick Coupler Hitch
SMV Emblem	Standard
Powder Coat Paint, Red	Standard
Optional Equipment	Safety Warning Lights Manual Adjust Gauge Wheel Kit Shank and Clamp Assemblies
Horsepower Requirements	10 to 15 HP (8 to 11 kW) per Shank
Recommended Operating Speed	4 to 6 MPH (6.43 to 9.65 km/h)
