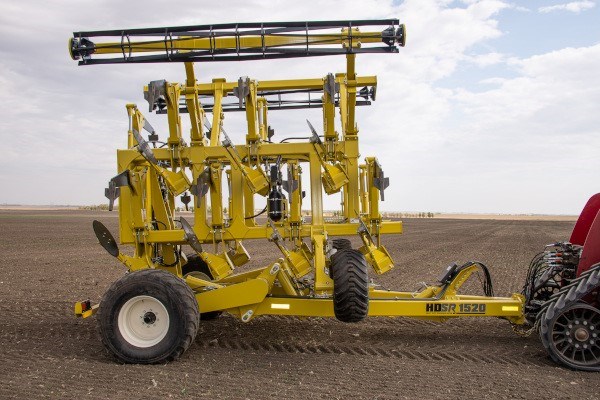

HDSR 1520
Overview:
Introducing the all new HDSR line of Heavy Duty Staggered Rippers from Degelman. When your operation needs something more than conventional tillage, look no further. The HDSR offers aggressive, industry leading 24” maximum ripping depth. With the under frame clearance of 44”, there’s plenty of room for crop residue and rocks to pass through the machine. It also makes changing points easier and safer.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
The benefits of a staggered ripper
The Staggered two row layout provides better trash flow and lower draft than an in-line ripper. It also allows for shorter implement contour length, easier transport, and better compaction shattering ability than a V-ripper. The HDSR Series will help farmers and producers have better plant density, faster crop emergence, increased fertilizer utilization, and decreased greenhouse gas emissions.
Simple & effective depth control
We know every minute of downtime on your operation matters, thats why our simple depth control is as easy as adding shims to the wheel cylinders, conveniently located at the front of the machine.
Auto levelling system- drop the pin and go
The ripper levels itself automatically so no hitch level adjustment is necessary and you can easily change ripping depth without having to exit the tractor and manually crank a turnbuckle to re-level the machine.
Auto levelling system- drop the pin and go
The ripper levels itself automatically so no hitch level adjustment is necessary and you can easily change ripping depth without having to exit the tractor and manually crank a turnbuckle to re-level the machine.
Under frame clearance of 44"
That gives plenty of room for crop residue and rocks to pass through the machine. It also makes changing points easier and safer.
Fight back against compaction
As equipment increases in size and weight, so does soil compaction which robs farmers of yield. Compaction not only decreases yields but also damages soil health over the long term. Some common effects due to compaction are: stunted root development, limited moisture flow, a lack of oxygen or denitrification, harm to beneficial soil life, and a lack of oxygen which results in nitrous oxide (GHG) emissions.
Each HDSR machine comes with an included depth probe to find the hard pan in your field. By simply adjusting the ripping depth to 1-2” below this hard pan, you will ensure complete hard pan destruction while reducing part wear and fuel usage.
Specifications
| Model | HDSR 1520 |
| Working Width | 25'-0" |
| Transport Height (w/o chopper) | 12'-1" |
| Transport Height (with chopper) | 13'-11" |
| Transport Width | 11'-11" |
| Transport Length | 20'-0" |
| Field Length (w/o chopper) | 27'-8" |
| Field Length (with chopper) | 29'-5" |
| Outside Wheel Track | 10'-8" |
| Weight (w/o chopper) | 22,500 lbs. |
| Weight (with chopper) | 25,000 lbs. |
| Hitch Weight (w/o chopper) | 4,600 lbs. |
| Hitch Weight (with chopper) | 5,100lbs. |
| Number of Shanks | 15 |
| Shank Spacing | 20" |
| Under Frame Clearance | 44" |
| Ripping Depth | 6" to 24" |
| Spring/Hydraulic Trip Height | 20" |
| Model | HDSR 1130/1520 |
| Ripping Depth | 6" - 24" |
| Shank Trip Mechanism | Shear Bolt, Spring, or Hydraulic |
| Shank Arm | 3/4" Min-Till Straight, 1-1/4" Straight, 1-1/4" Parabolic |
| Shank Construction | AR400 Steel |
| Points (1-1/4" Shank) | Narrow - 3" | Wing - 5", 7", 10" |
| Points (3/4" Shank) | Narrow - 2" | Wing - 7" |
| Optional Coulter Disc Size | 20" Flat |
| Optional Coulter Arm Mounting | Rubber Torsion |
| Optional Chopper Size | 17" Diameter X 12' LG |
| Optional Chopper Down pressure | Spring or Hydraulic |
| Tire Size Center | 500/60R22.5 |
| Tire Size Wing | 400/60R15.5 |
| Transport Cylinder | 6.5 X 32 X 2.5in - Pin Eye c/w composite bushings and seals |
| Wing Cylinder | 4 X 20 X 2in |
| Hydraulic Jack Cylinder | 4.5 X 8 X 2in |
| Center Wheel Depth Cylinder | 4.5 X 16 X 2in - Pin Eye c/w composite bushings and seals |
| Wing Wheel Depth Cylinder | 3 X 4 X 1.5in - Pin Eye c/w composite bushings and seals |
| Auto-Level Technology | Standard |
| Hydraulic Park Jack | Standard |
| Safety Lights | Standard |
| Hose/Manual Holder | Standard |
| Compaction Depth Probe | Standard |
