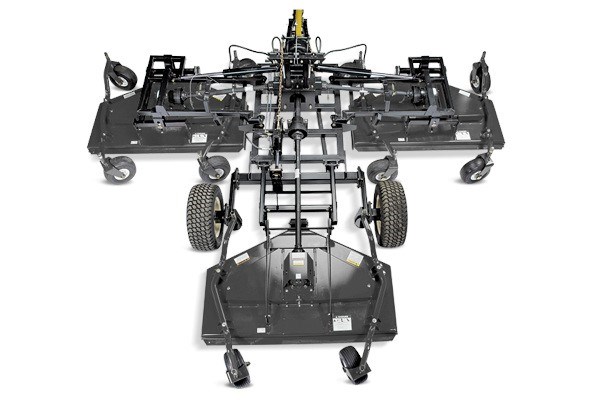

Triplex Finishing Mower

550

PRINT

Overview:

Three of these finishing mowers together create one magnificent volume grass trimmer: the Triplex Finishing Mower. Nine blades generate a powerful vacuum for a crisp, clean cut. Each deck floats independently over rolling terrain for a uniform, manicured trim.

Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

TRANSPORT
The Triplex Finishing Mower is designed to be transported with ease. A cast clevis hitch is standard and a 2-5/16" ball hitch is optional for road transport. The 5-position hitch adjustment makes it easy to move, regardless of the hitch height of the tow vehicle. The decks are lifted into position by hydraulic cylinders and are automatically locked in place for transport. The decks are unlocked right from the tractor seat using a cable, or can be released using the optional hydraulic system.

ROLLER BEARINGS
Tapered roller bearings in the wheel hubs ensure long- term reliability without needing frequent lubrication. The standard front UHMW roller prevents scalping on uneven turf.

BLADE OVERLAP
There is a 1-5/8" blade overlap on the 450, while all the other models have a 2-5/8" blade overlap. This overlap helps to prevent stripping, especially when turning.

YOKE DESIGN
A forgiving yoke design creates the ability to follow the terrain, yet maintain a seamless finish, available on models 550 and 650.

WHEELS
The model 765 has four wheels on each of the three decks. Models 650 and 550 have four wheels on the wing decks and two on the center deck. The 450 has three wheels on the wing decks and two on the center deck.

Specifications

Model550
Cutting width163" (13.6')
Transportation width bottom/top86"/100"
Transportation height / length84 1/2"/15'9"
Recommended horsepower40 hp
Wing flex*35° up 16° down
Deck overlap8.5"
Gear box rating at 540 RPM66 hp - divider box / 30 hp - wing boxes
Hitch typeCast clevis - standard, 25/16" ball hitch - optional
Driveline main / wingsSeries 6-80° CV / series 2
Deck width / thickness5' / 7 Ga.
Deck tires10 (15" x 6" x 6")
Main frame tire2 (27" x 10-1/2" x 15")
Blades per deck / overlap3 blades / 2-5/8"
Blade tip speed15,829 ft/min
Cutting height1-1/2" to 4-1/2"
Mower drive system2 belt B groove
Front roller4" x 7" UHMW Poly
Weight3919 lbs

* Not recommended for operation greater than 30°, actual measurement based on mower deck flex.
