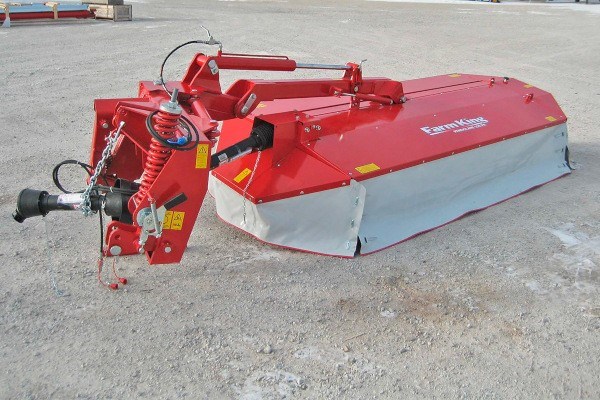

Disc Mower - Pendolare

285

PRINT

Overview:

The Pendolare models are constructed using only the highest-grade steel and gear components. Cutting discs and blades are easily accessible by removing six bolts and the sturdy cover to reveal the inner workings of each disc assembly. Tractors ranging in horsepower from 65 to 95 can operate the three exclusive mower sizes with ease. The cutting unit consists of a central pendulum suspension with double shock springs. This allows a constant adjustment of the weight on the ground and allows the cutting bar to follow the soil profile for a clean cut.

Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

TRANSPORT POSITION
With standard transport the machine swings to the rear; with optional transport the machine gets raised to a vertical position, making perfect use of space and weight distribution. The single acting cylinder is used to raise the mower for transport. It has an automatic lock that can be released with a rope from the tractor.

HOT FORGED STEEL ROUND DISCS
Hot forged steel round discs provide a high quality cut in all conditions, while requiring less power. The size allows further setback from the stone guards and the shape prevents shock when stones are struck. The forged steel blades are particularly resistant and do not bend or flex. They last about three times longer than standard blades in most conditions and are flexed with strong high resistance bolts.

MAIN SUPPORT
Assembled in one module and attached to the cover with 6 bolts to maximize the strength of the support. It lets you easily inspect inside the cutter bar. Bearings with strong stress transmissibility (1.2" (30 mm) pitch) can bear the greatest shear strains and the bearings are spaced to enhance resilience. Pinion thickness is 0.7" (17 mm) and diameter of the shaft is 1.4" (35 mm).

CUTTER BAR BREAKAWAY
The machines are all fitted with the "non-stop" cutter bar breakaway, which means you can continue cutting without stopping the machine with no need to reverse if an obstacle is found. It is automatically rearmed without assistance from the operator or the hydraulic system.

GEARBOX
The heavy-duty gearbox cover has a thickness of 0.2" (5 mm) and features an integrated reinforcement. This helps prevent flexing of moving parts, especially on uneven terrain. The oil bath gearbox improves lubrication, provides faster cooling and efficient movement.

SHOCK ABSORBERS
Double spring shock absorbers allow setting the best weight for the mower to maintain even pressure on the ground, always giving a clean cut without damaging the grassy surface.

Specifications

Model285
Working width9' 4" (2.87 m)
Number of discs7
Number of blades14
Tractor requirements75
Weight1,525 lb (692 kg)
