2400
Overview:
The double wide, short model is ideal for picking bales in hilly terrain, with a capacity of up to ten 4' x 6' or eight 5' x 6' bales.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
THE RIGHT SIZE

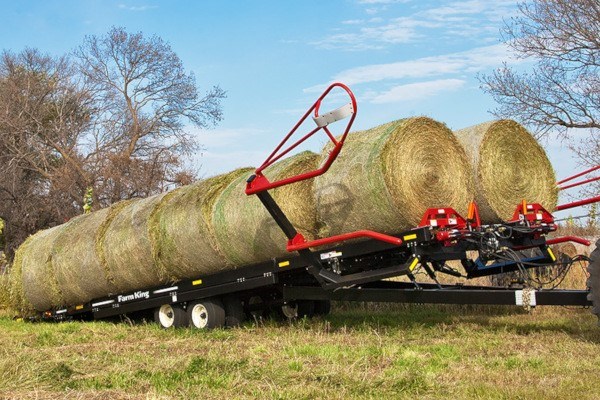

The right size and the right features The 1450 round bale carrier can carry seven 5' by 6' bales weighing up to 900 kg (2,000 lb) each in a single row. The double wide Farm King 2450 has twice the capacity. Ideal for hilly terrain the shorter, more maneuverable 2400 can carry ten 4' x 6' round bales. Heavy-duty construction means the bale carriers are robust, yet designed to load and unload bales quickly and without damage. Lower bale handling costs and simple maintenance help improve the profitability of your hay.
DECK
The heavy duty undercarriage and tandem walking beam axles ensure reliable transport to the unloading area. To unload, the operator tilts the carrier deck using the tractor control. Once the rear of the deck is on the ground, the pusher, controlled with the hand-held remote, unloads the bales in tight end-to-end rows.
PUSHER
After bales are lifted onto the deck, a pusher moves the bales rearward. The pusher has two settings that are selected on the hand held remote. The operator can choose the most efficient speed and torque for varying conditions: ‘high’ for dry hay and straw; ‘low’ provides additional torque for wet or high moisture silage bales, and the pusher moves with less speed.
PICKUP ARMS
Gentle yet rugged pickup arms place bales on the deck where a pusher, powered by two hydraulic motors, slides the bales back on graphite coated carrier beams (models 1450, 2450). This means efficient bale handling, less stress and more bales moved each day.
Standard Arm
The 1450S, 2400S and the 2450S feature standard pickup arms. A bale deflector is built into the outer fork which means bales can be picked up from either the ‘end-on’ or ‘side-on’ position. This allows the operator to approach the bale from any angle.
Model 2400 features a right-hand side pickup arm while model 2450 is equipped with both left-hand and right-hand side pickup arms for even more maneuverability and convenience. Model 2400 features an optional bale stop indicator for use with more narrow bales (4').
Rotating Pickup Arm
The 1450R and 2450R are equipped with rotating pickup (RPU) arms with forks that hydraulically squeeze, rotate and lift bales onto the deck for ‘side-on’ picking. This allows the operator to follow the travel of the baler.
Specifications
| Model | 2440 |
| Capacity | GVW: 18,720 lb (8,491 kg) Twelve - 4' wide bales Eight - 6' wide bales |
| Tractor requirements | 80 hp (60 kW) |
| Max. speed (loaded) | 20 mph (32 km/hr) |
| Hand-held remote control | Power: 12v, Fuse: 15 amp |
| Hydraulics | Two double acting circuits required |
| Hydraulics, lift cylinder | One - 3" diameter |
| Hydraulics, tilt cylinder | One - 3" diameter |
| Hydraulics, motor | Two - 22.0 cu. in |
| Tires | (4) 12.5L x 15FI tires, load range F, intermittent unloaded highway use |
| Tires, capacity | 4,680 lb (2,130 kg) at 90 PSI inflation |
| Tires, hub | 6 bolt with twine guard |
| Tires, wheel | Heavy-duty implement style |
| Deck length | 26' (7.9 m) |
| Overall length | 34' (10.4 m) |
| Transportation width | 12'7' (3.8 m) |
| Shipping weight (approx.) | 6,600 lb (2,995 kg) |
