4480 XD
Overview:

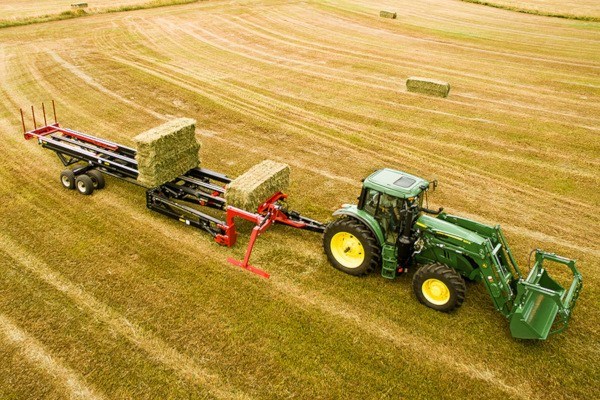

WITH YEARS OF ON-FARM TESTING AND REFINEMENTS THE FARM KING 4480XD SQUARE BALE CARRIER OFFERS SIMPLIFIED OPERATION AND AN INTUITIVE DISPLAY. The Farm King 4480XD Square Bale Carrier improves it’s capacity with 9 4'x4', 20 3'x4' and 24 3'x3' bales picked per load. With full customization and the quarter turn option you can configure it to perform to your operation’s needs. The 4480XD features a host of new innovations and technology designed to increase efficiency, maximize durability and minimize bale damage.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
STRUCTURE
The Farm King 4480XD square bale mover features a heavy-duty undercarriage and 4" x 8" beams to support heavy loads under stress. The 4480XD also has eight bolt heavy-duty wheels. The tandem walking beam axles reinforce the overall stability and structural integrity.
UNLOADING
Unloading is quick and easy thanks to the innovative design of the carrier. The rear deck tilts backward, resting the back half of the load on the ground. Move the carrier forward and return the tilt deck to the neutral position. Push the remaining bales to the back of the carrier and repeat the process.
STACKING
The bales are stacked in tight rows. The strings are not touching the ground, which prevents prolonged exposure to surface moisture. As settling occurs, the bales rest together in a structurally sound stack.
REDUCE STRESS
The beams on the carrier deck have been covered with a special graphite coating that allows the bales to slide with minimal effort.
BALE PUSHER
After bales are lifted onto the deck, a pusher powered by two hydraulic motors moves the bales rearward. If the pusher senses resistance from a heavier-than average bale during regular operation, it automatically shifts to ‘low’ for five seconds to provide more power to push the bale. If the bale will not move, a sensor sends a message to the monitor to alert the operator. The sensor on the pusher motor counts revolutions to efficiently measure the pushback distance.
CHAIN
The chain that powers the pusher is recessed beneath the beams so the weight of the bale is never resting fully on the chain, minimizing bale stress and limiting the chance of string breakage.
HYDRAULICS
The bale carrier automatically adjusts its hydraulic configuration to correspond with the hydraulic system on the tractor, as selected by the operator. The bale carrier is compatible with open-center, closed-center, or load-sensing closed-center hydraulic systems.
CARRIER ARM
The reinforced carrier arm enhances the structural integrity of the machine. Hydraulic hoses and electronic sensors have been positioned to avoid being pinched or damaged by moving parts.
Specifications
| MODEL | 4480XD |
| Overall Length | 42' 8" (13 m) |
| Usable Deck Length | 34' (10.36 m) |
| Overall Width | 13' 10" (4.2 m) |
| Width (Without Loading Arm) | 10' 2" (3.1 m) |
| Transport Width | 10' 2" (3.1 m) |
| Overall Height | 15' 10" (4.8 m) |
| Tipping Frame Height (Raised) | 15' 10" (4.8 m) |
| Rotate Arm Height (Lift Arm Fully Raised) | 15' 7" (4.75 m) |
| Weight (empty) | 9485 LB. (4302 KG) (APPROX.) |
| Hitch Weight (empty) | 1950 LB. (884 KG) (APPROX.) |
| Hitch Weight (maximum) | 7500 lb. (3402 kg) (approx.) |
| Tires | Eight 12.5L x 15 - Load Range F |
| Hubs | 8 Bolt Heavy Duty |
| Hub Spindle / Tire Capacity | 8000 lb. (3630 kg) @ 90 psi |
| Hydraulic Flow (closed or open center) | 25 US gpm (80 lpm) @ 3000 psi |
| Maximum Hydraulic Pressure | 3500 psi (24132.5 kPa) (241 bar) |
| Operating Hydraulic Pressure | 3000 psi (20685 kPa) (207 bar) |
| Hydraulic Motors (Pusher) | Dual 22.2 cu. in. |
| Lift Cylinder | 4" diameter x 18" stroke |
| Clamp Cylinder | 3" diameter x 16" stroke |
| Rotate Cylinder | 3" diameter x 16" stroke |
| Tilt Cylinders | 3.5" diameter x 36" stroke |
| Electrical | 12V (Internal Fuse Protection) |
| Maximum Load | 25,000 lb. (11,300 kg) |
| Bale Length | 8' (2.4 m) |
| 48" x 48" (122 x 122 cm) Bales | 9 Bales (single row on carrier) / 8 Bales (single row with 1/4 turn) |
| 32" x 35" (81 x 90 cm) Bales | 24 Bales (double row on carrier) / 20 Bales (double row with 1/4 turn) |
| 36" x 48" (91 x 122 cm) Bales | 18 Bales (double row on carrier) / 10 Bales (single row with 1/4 turn) |
