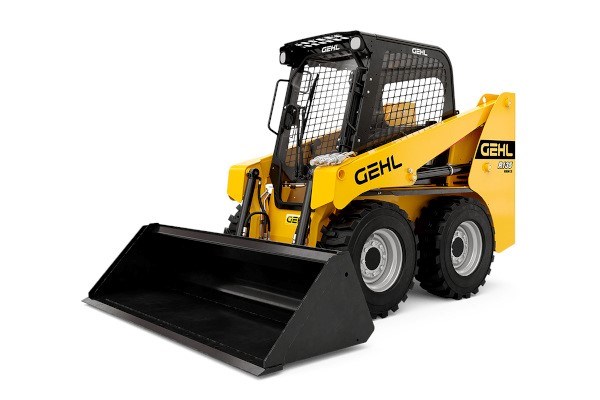

Gehl R135 GEN:2

Double tap to zoom

Compact Loader

R135 GEN:2

Overview:

Born through the challenges of farm work but built for success everywhere else, the compact R135 GEN:2 delivers extra lifting capacity for those who need a nimble yet strong Skid Loader. Featuring power where it matters, this machine easily navigates through narrow gates and is more manageable during transport—getting you to wherever work needs doing, without causing a commotion. This new version of the R135 is packed with intuitive controls and designed for comfort, helping reduce operator fatigue during long days on the job. Low-effort controls make difficult jobs a cinch, and an air-ride seat along with other optional features means you'll go home at the end of a tough day without feeling like you've been hit by a ton of bricks.

Overall Operating Height - Fully Raised: 144 in
Dump reach - Full height: 23 in
Overall length with bucket: 121 in
Overall width less bucket: 54 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Key Features

Loft Effort Control Choices
All-Tach® Attachment System (Universal-Type)
Self-Leveling Hydraulic Lift Action
Hydraloc™ System
ROPS/FOPS Level II
Dual T-Bar or Hand/Foot Control System
Audible Back-Up Alarm
Standard High Back Cushion Seat

Specifications

Capacities
Operating Capacity At 50% Tipping Load	1350 lb
Rated Operating Capacity with Optional Counterweight	1499 lb
Operating Weight	5255 lb
Tipping capacity	2700 lb
Weight and dimensions
Wheelbase	37 in.
Overall Operating Height - Fully Raised	144 in
Height to Hinge Pin - Fully Raised	110 in
Overall Height to top of ROPS	76 in
Dump angle at full height	40 °
Dump height	83 in
Overall length with bucket	121 in
Dump reach - Full height	23 in
Rollback at ground	28 °
Seat to ground height	34 in
Wheelbase	37 in
Overall width less bucket	54 in
Bucket Width	54 in
Ground clearance	8 in
Overall length - Less Bucket	93 in
Clearance Radius - Front with Bucket	73 in
Clearance Circle - Front without Bucket	44 in
Rear departure angle	25 °
Performances
Travel speed (unladen)	8 mph
Wheels
Standard tires	10.00 x 16.5 HD
Engine
Engine brand	Yanmar
Engine model	4TNV88C
Engine norm	Stage IV / Tier 4 Final
Gross Power	34.30 kW
Net Power	33.20 kW
Max. torque / Engine rotation	108 ft/lbs / 1820 rpm
Power source	Diesel
I.C. Engine power rating	46.60 Hp
Battery voltage	12 V
Starter	2.30 kW
Hydraulics
Standard flow - Auxiliary hydraulics	17 US gpm
Tank capacities
Fuel tank	16 US gal
Displacement	0.58 US gal
Noise and vibration
Noise to environment (LwA)	101 dB
Whole-Body Vibration (ISO 2631-1)	3 ft/s²
Vibration on hands/arms	< 6 ft/s²
