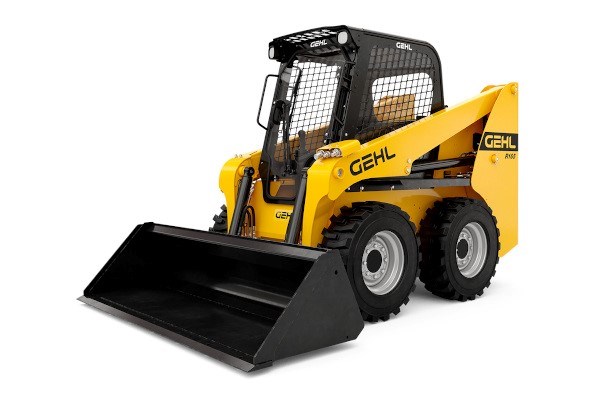

Gehl R165

Double tap to zoom

Compact Loader

R165

Overview:

When it's time to get a high-performance and versatile solution for your agricultural / construction operations choose the R165. A true crowd favorite. Compact body style with true raw power. This latest generation machine with perfect all-terrain maneuverability is ideal for your most demanding applications in confined spaces and on uneven ground. Combining driving comfort, precision of movement, multifunction use (thanks to endless attachments available below).

Overall Operating Height - Fully Raised: 153 in
Dump reach - Full height: 23 in
Overall length with bucket: 122 in
Overall width less bucket: 62 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Key Features

All-Tach® Attachment System (Universal-Type)
Hydraloc™ System
ROPS/FOPS Level II
Dual T-Bar, Hand/Foot or Joystick Control System
Zero Maintenance Axles with 8-Bolt Rims
Acoustical Sound Material and Deluxe Headliner
Standard High Back Cushion Seat

Specifications

Capacities
Rated Operating Capacity	1650 lbs
Rated Operating Capacity with Optional Counterweight	1800 lbs
Operating weight	6164 lbs
Tipping capacity	3300 lb
Weight and dimensions
Wheelbase	39 in.
Overall Operating Height - Fully Raised	153 in
Height to Hinge Pin - Fully Raised	118 in
Overall Height to Top of ROPS	77 in
Dump angle at full height	38 °
Dump height	94 in
Overall length with bucket	122 in
Dump reach - Full height	23 in
Rollback at ground	28 °
Seat to ground height	36 in
Overall width less bucket	62 in
Bucket Width	61 in
Ground clearance	6 in
Overall length - Less Bucket	94 in
Departure angle	21 °
Clearance Radius - Front with Bucket	74 in
Clearance Circle - Front without Bucket	45 in
Rear departure angle	21 °
Performances
Travel Speed with Two-Speed Option - Maximum	12 mph
Travel speed (unladen)	8 mph
Wheels
Standard tyres	10.00x16.5 HD
Engine
Engine brand	Yanmar
Engine model	4TNV98C-NMS2V
Engine norm	Stage V
Gross Power (kW)	52 kW
Net Power (kW)	51 kW
Max. torque / Engine rotation	178 ft/lbs / 1625 rpm
Battery	12 V
Starter (kW)	3 kW
Hydraulics
Standard flow - Auxiliary hydraulics	20 US gpm
High-Flow Auxiliary Hydraulics - Option	30 US gpm
Tank capacities
Fuel tank	17 US gal
Reservoir Capacity Hydraulics	10 US gal
Displacement	0.87 US gal
Noise and vibration
Environmental noise (LwA)	101 dB(A)
Whole-Body Vibration (ISO 2631-1)	3 ft/s²
Vibration to whole hand/arm	< 5 ft/s²
