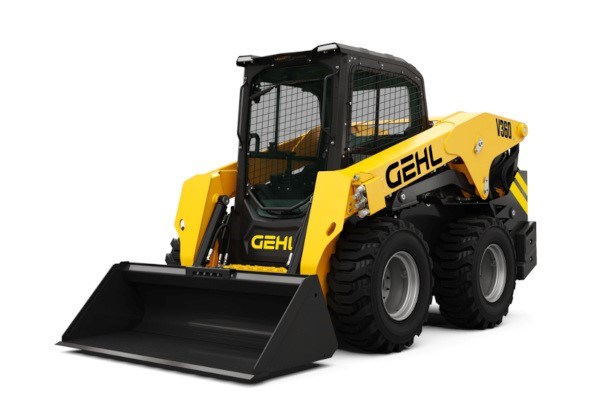

Gehl V360

Double tap to zoom

Compact Loader

V360

Overview:

Overall Operating Height - Fully Raised: 175in
Dump reach - Full height: 31 in
Overall length with bucket: 156 in
Overall width less bucket: 75 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Sorry, currently there are no features but check back with us later.

Specifications

Capacities
Operating Capacity At 50% Tipping Load	3600 lb
Rated Operating Capacity with Optional Counterweight	3801 lb
Operating Weight	10320 lb
Tipping capacity	7200 lb
Weight and dimensions
Wheelbase	52 in
Overall Operating Height - Fully Raised	175 in
Height to Hinge Pin - Fully Raised	136 in
Overall Height to top of ROPS	84 in
Dump angle at full height	41 °
Dump height	105 in
Overall length with bucket	156 in
Dump reach - Full height	31 in
Rollback Angle at Full Height	94 °
Seat to ground height	43 in
Overall width less bucket	75 in
Bucket Width	84 in
Ground clearance	10 in
Overall length - Less Bucket	125 in
Clearance Radius - Front with Bucket	93 in
Performances
Travel speed (unladen)	7 mph
Travel Speed with Two-Speed Option - Maximum	12 mph
Wheels
Standard tires	14.00 x 17.5 HD
Engine
Engine brand	Deutz
Engine model	TCD3.6
Max. torque / Engine rotation	339 ft/lbs / 1600 rpm
Power source	Battery
Engine power (Hp / kW)	114 hp / 85 kW
Starter	4 kW
Hydraulics
Standard flow - Auxiliary hydraulics	25 US gpm
Auxiliary Hydraulic Pressure	3450 PSI
High-Flow Auxiliary Hydraulics - Option	40 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option	3450 PSI
Tank capacities
Fuel tank	28 US gal
Hydraulic tank capacity	8 US gal
