Gehl RS 4-14

Double tap to zoom

Construction Telehandlers

RS 4-14

Overview:

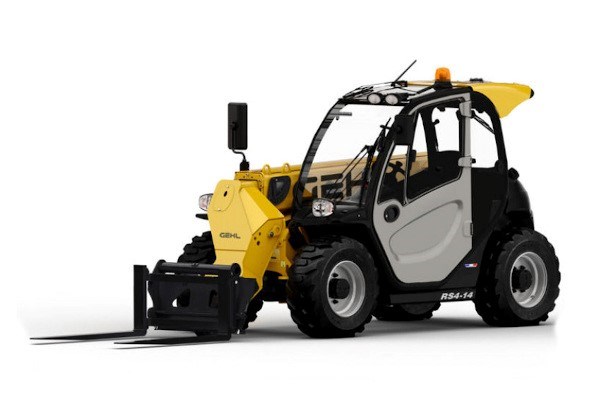

The RS4-14 packs the power you'd expect from a full-sized machine in a compact package. Working hard even in the tightest spaces, this maneuverable machine can switch between three steering modes with a simple click: 2-wheel, 4-wheel, and crab. And the RS4-14 doesn't compromise on comfort, either. Equipped with a full-size operator station featuring true 360° visibility, you can work from sunrise until sunset without cramping up. It's small. It's hardworking. It'll get the job done with speed and ease.

Max. capacity: 4400 lb
Max. lifting height: 14 ft 3 in
Max. outreach: 9 ft
Engine power (kW): 42 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Key Features

Four-wheel Drive/Four-Wheel Steer
Universal Skid Steer Attach System Standard
Manitou Quick Attach Optional

Specifications

Capacities
Max. capacity	4400 lbs
Max. lifting height	14 ft 3 in
Max. outreach	9 ft
Breakout force with bucket	1886 daN
Weight and dimensions
Overall length to carriage	11 ft 11 in
Length to face of forks	11 ft 9 in
Overall width	4 ft 11 in
Overall height	6 ft 3 in
Wheelbase	7 ft
Ground clearance	9 in
Overall cab width	2 ft 7 in
Tilt-up angle	12 °
Tilt-down angle	116 °
External turning radius (over tyres)	10 ft 1 in
Unladen weight (with forks)	9237 lbs
Tyres type	Pneumatic
Standard tyres	Camso SKS-532 - 12 - 16.5-12PR
Performances
Lifting	5 s
Lowering	3.50 s
Extension	4.80 s
Retraction	3 s
Crowd	3.30 s
Dump	2.70 s
Engine
Engine brand	Kubota
Engine norm	Stage V
Engine model	2607-CR-E5
Number of cylinders / Capacity of cylinders	4 - 160 in³
I.C. Engine power rating - Power (kW)	56.30 Hp / 42 kW
Max. torque / Engine rotation	174 Nm @ 2700 rpm
Drawbar pull (Laden)	2850 daN
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed	16 mph
Parking brake	Automatic Negative Hand-brake
Service brake	Disk brake on the cadran shaft
Axle Manufacturer	Dana
Hydraulics
Hydrualic pump type	Gear pump
Hydraulic ﬂow / Pressure	20 US gpm-3408 PSI
Tank capacities
Engine oil	3 US gal
Hydraulic oil	18 US gal
Fuel tank	16 US gal
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Safety / Safety cab homologation	Standard EN 15000 / ROPS/FOPS
Controls	Single Joystick FNR
