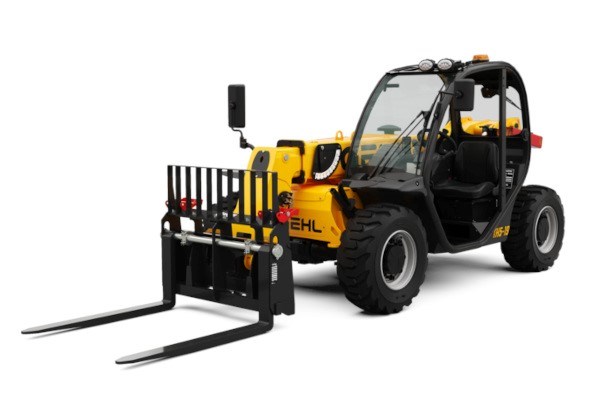

Gehl TH5-19

Double tap to zoom

Construction Telehandlers

TH5-19

Overview:

With 5,500 lbs of lifting capacity and 19' of reach, the TH5-19 gets the job done with its compact and powerful design. This model stands out among our TH line with its unique body design and operator-backed features. The new TH5-19 includes improvements such as a All-in_one (FNR) joystick and added pin on the Quick Attach for connecting straps or chains while lifting suspended loads. Maneuver tight spaces (with 10' 10" turn radius) and rough terrain (with 13 inch ground clearance)to efficiently complete the job at hand. Get in the cab of this machine for a fresh take on a crowd favorite, the all new TH5-19.

Max. capacity: 5500 lb
Max. lifting height: 19 ft 1 in
Max. outreach: 11 ft 2 in
Engine power (kW): 55.40 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Key Features

full size operator station
All-in-one F-N-R joystick for machine and boom control
Universal Skid Steer Quick Attach
high visibility orange seat belt to verify operator use
dedicated lift point on Quick Attach system for lifting suspended loads

Specifications

Capacities
Max. capacity<t/td>	5500 lb
Max. lifting height	19 ft 1 in
Max. outreach	11 ft 2 in
Breakout force with bucket	3425.13 daN
Weight and dimensions
Length to face of forks	12 ft 9 in
Overall width	5 ft 11 in
Overall height	6 ft 4 in
Wheelbase	91 in
Ground clearance	13 in
Overall cab width	31 in
Tilt-up angle	12 °
Tilt-down angle	117 °
External turning radius (over tyres)	10 ft 10 in
Unladen weight (with forks)	10406 lb
Tires type	Pneumatic
Forks length / width / section	47 in x 5 in x 2 in
Performances
Lifting	8 s
Lowering	5.40 s
Extension	5.60 s
Retraction	4.30 s
Crowd	3.50 s
Dump	3.60 s
Engine
Engine brand	Kubota
Engine norm	Tier 4 final
Engine model	V3307-CR-TE5B
Number of cylinders / Capacity of cylinders	4 - 203 in³
I.C. Engine power rating - Power	74 Hp / 55.40 kW
Max. torque / Engine rotation	1033 ft/lbs @ 2600 rpm
Drawbar pull	3229.40 daN
Electric circuit
12V Battery capacity	110 Ah
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed	16 mph
Parking brake	Hydraulic spring release SAHR
Service brake	Wet disc brakes
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow / Pressure	23 US gpm-3408 PSI
Tank capacities
Engine oil	3 US gal
Hydraulic oil	30 US gal
Fuel tank	17 US gal
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Controls	Joystick
