Gehl VT320

Double tap to zoom

Vertical Lift

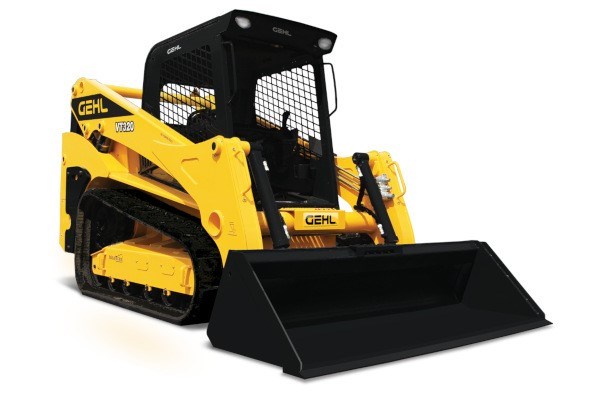

VT320

Overview:

Are you going up against the most difficult challenges on farms and construction sites and need unmatched performance, strength, and durability? Then you need the VT320, our largest vertical lift Track Loader. A machine that’s tougher than any job you can throw at it, the VT320 features an 85 kW engine and 3,200 lbs. of rated operating capacity for powerful lift and torque. That means rough terrain and unpredictable environments won't stop you while you're lifting, loading, and unloading heavy-duty materials from point A to B. Engineered for superior serviceability, productivity, and comfort, this machine gives you the edge over whatever is coming your way on the job site while leaving you prepared for tomorrow. The VT320—it's the pinnacle of Track Loaders.

Overall Operating Height - Fully Raised: 169 in
Overall length with bucket: 160 in
Overall width less bucket: 70 in
Gross Power: 85 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Key Features

IdealTrax™ - Automatic Track Tensioning System
Low Effort Joystick Pilot Controls
Air Suspension Seat*
Cab Enclosure with Heat and Air Conditioning*
High Flow Auxiliary Hydraulics*
2 Travel Speeds
Power-A-Tach® Quick Coupler*
Lift Arm Float Mode and Hydraglide ™ Ride Control
*Optional Equipment

Specifications

Capacities
Operating Weight	11799 lbs
Operating Capacity at 35% Tipping Load	3201 lbs
Operating Capacity At 50% Tipping Load	4572 lbs
Tipping capacity	9145 lbs
Weight and dimensions
Overall Operating Height - Fully Raised	169 in
Height to Hinge Pin - Fully Raised	130 in
Reach - Fully Raised	40 in
Dump angle at full height	41 °
Dump Height - Fully Raised	100 in
Maximum Rollback Angle - Fully Raised	90.30 °
Overall Height to Top of ROPS	83 in
Overall length with bucket	160 in
Overall Length without Bucket	128 in
Speciﬁed Height	76 in
Reach at Speciﬁed Height	30 in
Carry Position	8 in
Maximum Rollback Angle at Carry Position	31 °
Digging Position	0.75 in
Angle of Departure with STD Counterweight	23.50 °
Ground clearance	12 in
Track gauge	52 in
Track Shoe Width	18 in
Crawler base	62 in
Overall width less bucket	70 in
Bucket Width	84 in
Clearance Radius - Front with Bucket	98 in
Track Type / Roller Type	Rubber / Steel
Performances
Ground Speed - Single Speed	5 mph
Drawbar Pull/Tractive Effort	12769 lbs
Bucket Breakout - Tilt Cylinder	9903 lbs
Bucket Breakout - Lift Cylinder	7491 lbs
Engine
Engine brand	Deutz
Engine model	TD 3.6 EPA
Motor Type	Axial Piston with planetary gear box reduction
Gross Power (kW) / Gross Power	85 kW / 2300 rpm
Battery	12 V
Cold Cranking Amps at Temperature (CCA)	1600 A
Alternator - Voltage / Ampere	14 V / 120 A
Hydraulics
Standard ﬂow - Auxiliary hydraulics	29 US gpm
Tank capacities
Hydraulic tank capacity	10 US gal
Fuel tank	32 US gal
Displacement / Number of cylinders	0.95 US gal / 4
