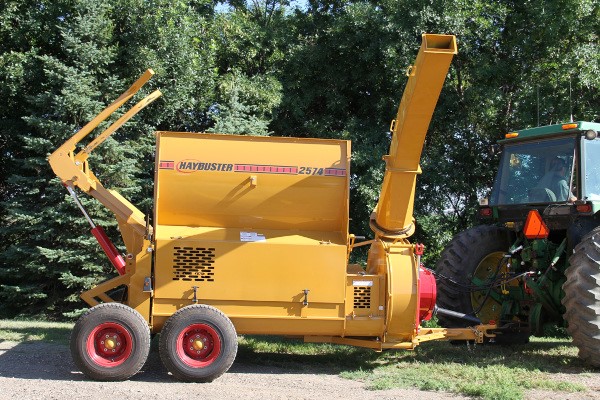

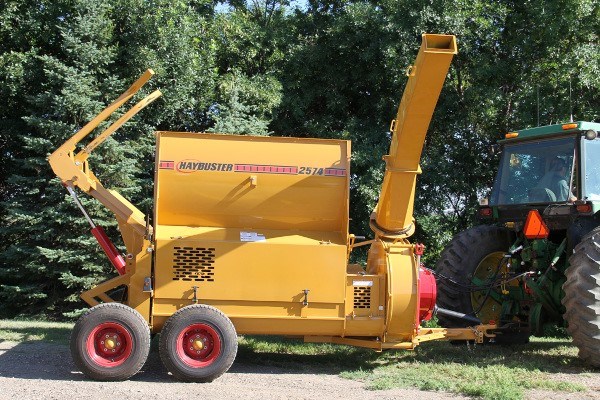

2574 Balebuster
Overview:
The only Balebuster with an adjustable blower. Blow straw up to 100 feet in any direction and at several heights with this model.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Processing bales for erosion control just got a lot easier and smoother with the introduction of the Model 2574 blower-type processor.
The newly designed belt drive system drives the fan and rotor, making it a smooth, quiet operation.
The 2574 has the capability to blow mulch up to 100 feet into those hard to reach areas. With a variety of spout options, we can offer the machine that fits your needs.
4-Groove Belt Drive System
1000 RPM PTO drive through a set of 4-groove belts that drive the fan and rotor. With belts, the 2574 becomes more durable and smoother with less maintenance time.
Blower/Fan
The an in the blower as replaceable fins and shafts that can be replaced without removing the blower from the machine. The 2574 has three spout options which do the jobs of cattle feeding and bedding, and also erosion control.
Optional Additional Axle
Adding an axle minimizes the tongue weight and makes it more stable, especially when backing on a trailer. (Highway tire only.)
Bale Chamber
Complete with the 3-chain slat conveyor that has been an exclusive feature with Haybuster for many years, the 2574 is now available with 1.25” drive shafts, bearings and heavy-duty chain. The chamber is taller to accommodate today’s bigger bales. Nine slugbars hold the bale at bay from the rotor and are easily adjustable to get the end product you need.
Centering Hitch
Versatile hitch that positions machine directly behind tractor for transport and loading on trailer.
Specifications
| MODEL | 2574 Balebuster |
| WEIGHT | |
| Total | 6,620 lbs (3,002.78 kg) |
| TRANSPORT DIMENSIONS | |
| Width w/ Hwy tires | 8 ft 6 in (2.59 m) |
| Width w/ Flot. Tires | 8 ft 9 in (2.67 m) |
| Length | 16 ft 6 in (5.03 m) |
| Height | 10 ft 9 in (3.26 m) |
| WORKING DIMENSIONS (With 1 Bale, Loader Fully Raised.) | |
| Width | 10 ft 3 in (3.12 m) |
| Length | 16 ft 6 in (5.03 m) |
| Height | 10 ft 9 in (3.26 m) |
| WORKING DIMENSIONS (With 2 Bales, Loader in Bale Transport) | |
| Width | 10 ft 3 in (3.12 m) |
| Length | 22 ft 7 in (6.88 m) |
| Height | 10 ft 9 in (3.26 m) |
| CHASSIS FEATURES | |
| Towing Arrangement | Clevis Type Hitch, Height Adjustable |
| Hitch Jack | 7,000 lbs (2,273 kg) rating - 15" lift |
| Axle Extension | Optional 12 in. |
| Wheel Bearing Type | Tapered Roller |
| BALE LOADER | |
| Type | Hydraulic with 2 Stage Twin Boom Arms |
| Bale Tines | Tubular Steel with 10° Float, 4 Position Width Adjustable |
| Adjustable Hydraulic Cylinder | 4 in x 24 in (10.16 cm x 60.96 cm ), Double-Acting |
| BALE CONVEYOR | |
| Type | 3 Roller Chains with Bolt-On Cross Slats |
| Drive | Hydraulic Orbital Motor, Hydraulic Flow Control Valve |
| BALE SHREDDER CHAMBER | |
| Max. Bale Size | 6 ft long x 6-1/2 ft dia (1.68 m x 1.98 m) |
| Max. Bale Weight each | 2,200 lbs (1,000 kg) |
| Rotor Length | 78 in. (1.98 m) |
| Rotor Diameter (Flails extended) | 25 in (63.5 cm) |
| Rotor Bearing | 2" (5.08 cm) |
| Number of Flails | 40 |
| Flail type | Heavy Duty, Hardened Spring Steele, Swinging |
| Re-Cutter Screen Type | Helical-Slotted, Round (5 Sizes) |
| Transfer Auger Dia. | 12 in (30.48 cm) |
| Number of Slug Bars | 9 |
| Slug Bar Height | Single Point Adjustment with 9 Settings |
| BLOWER FAN | |
| Size | 44 in dia (112 m) |
| Number of paddles | 6(AR 400 Steel) |
| Fan Lined with AR 400 Steele | - |
| OPERATOR CONTROLS | |
| Two hydraulic outlets required 1 set - for electic over hydraulics (standard equipment) - controls loader function, fan spout for vertical and horizontal adjustment. Requires 12 volt DC with 3-pin power outlet. Bale Conveyor - 1 set of tractor hydraulic outlets Bale Conveyor Speed - Adjustable hydraulic flow control valve Slug Bar - Single point adjustment with 9 settings | |
| SPOUT OPERATION | |
| Spout Operation - Joy Stick Controlled from Tractor Cab | |
| Vertical | Fan Housing Rotated by Hydraulic Cylinder |
| Horizontal | Spout Rotates 360 degrees by Hydraulic Cylinder |
| Outlet | 3 ft. Curved Spout has an Adjustable Deflector |
| Protection | Hinged Break-Away, Sheer Bolt Protected |
| REQUIREMENTS FOR OPERATION | |
| Order Spout | - |
| PTO Horsepower Required | 125 hp to 150 hp |
| PTO Type | 1,000 RPM, PTO Shaft with shear bolt protection |
| Min. Tractor Hydraulic Output | 8 gpm @ 1500 psi (30.3 m @ 10,345 kpa). |
| Tractor Hydraulic Controls | 2 Double-Acting Control Valves with Quick Coupler Outlets |
| Tractor Weight | Must be of equal or greater weight than that of a 2574 with 2 bales |
| SMV Sign | Standard equipment |
| Road Lights | Standard equipment |
