2800 Balebuster
Overview:
Our largest and heaviest processor in the Balebuster line. Processes large, square bales and anything smaller like a charm.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features

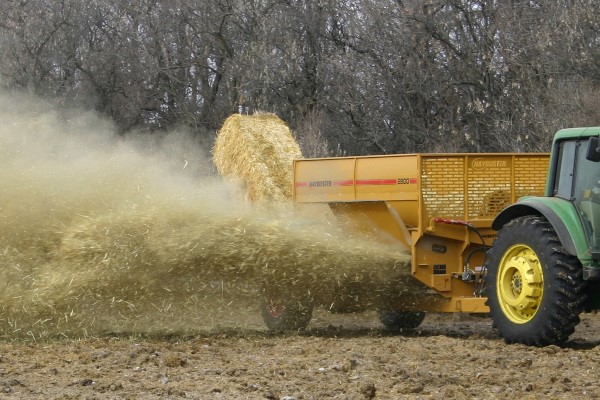

The 2800 Balebuster from Haybuster is the largest and heaviest processor in the line-up.
If you have BIG square bales that need to get processed, this is the machine for you. It also processes round bales making it a very versatile processor.
Bales are loaded with both forks and pincher arms to gently position bales in the chamber. The Haybuster has all the proven features we have trusted for years, such as conveyor table, right side discharge and faster rotor speeds.
Heavy-Duty Fixed Shredder Chamber with 3 Chain Salt Conveyor
Combining these features with the heavy-duty flails and high-speed rotor, the 2800 Heavy-Duty Fixed Shredder Chamber will process bales in any condition; wet, frozen, old, new or with flattened bottoms. The conveyor is slanted, so it helps feed the hay/straw into the rotor.
Oil Bath Chain Case and High-Speed Rotor
The 2800 features an oil bath chain case with double 60-roller chain that reverses the direction of the P.T.O. and increases the speed and efficiency of the rotor. The Heavy Duty 9’ x 26” Rotor with 40 3 lb. flails processes both dry hay and silage pales.
Rotor Access Door
The 2800 is equipped with rotor access doors, giving you quick and easy access to the rotor for routine inspections and twine removal.
Hydraulically Adjustable Slug Bars
The hydraulically adjustable slugbar allows the operator to adjust the length of the cut, even with a bale in the chamber.
9’ Bale Chamber
The 2800 is equipped with a p’ bale chamber for processing all round and square bales.
Dual Action Loading Arms
The 2800 is equipped with Dual Action Loading Arms to allow for loading square and round bales into the bale chamber with equal ease.
Right Hand Discharge
Tractor hydraulic controls are located on the right side, and the 2800’s right hand discharge makes it easy to look over your right shoulder while keeping your hands on the controls.
Two Stage Hydraulic Deflector
The Two Stage Hydraulic Deflector allows the operator to set the deflector position directly from the tractor cab. Additionally, the position of each half of the reflector may be independently set for greater control over discharge dispersal.
Heavy-Duty Frame
The 2800 has a heavy-duty frame for strength and durability.
Standard Features
- Heavy duty 10’ shredder chamber with dual 3 chain slat conveyor for rotating square bales.
- Oil bath chain case for reversing rotor direction for right side discharge and speeds up the rotor 20%.
- Right side discharge with tractor controls on the right side makes it operator friendly.
- Rotor access doors for easy service & maintenance.
- Hydraulically adjustable slug bars allow position of the bale from the cab of your tractor.
- 10’ bale chamber for handling the BIG bales.
- Dual action loading arms for grabbing the bale and placing in the chamber.
- Hydraulic deflector allows operator to easily change from feeding to bedding from the tractor cab.
Optional Features
- There are no optional features at this time.
Specifications
| MODEL | 2800 Balebuster |
| WEIGHT | - |
| Total | 7,300 lbs. (3,311 kg) |
| Tongue Weight (Bale loader fully raised) | 2,550 lbs. (1,156 kg) |
| Tongue Weight (Bale loader down) | 2,150 lbs. (975 kg) |
| TRANSPORT DIMENSIONS (Bale loader fully raised, deflector folded) | - |
| Width | 8'-5", 101 in. (2.57 m) |
| Length | 17'-7", 211 in. (5.36 m) |
| Height | 8'-6", 102 in. (2.59 m) |
| WORKING DIMENSIONS (With 1 bale, deflector in spread position) | - |
| Width | 10'-10", 130 in. (3.30 m) |
| Length | 24'-2", 290 in. (7.37 m) |
| Height | 10', 120 in. (2.59 m) |
| WORKING DIMENSIONS (With 2 bales, deflector in spread position) | - |
| Width | 10'-10", 130 in. (3.30 m) |
| Length | 27'-5", 329 in. (8.36 m) |
| Height | 10', 120 in. (2.59 m) |
| CHASSIS FEATURES | - |
| Towing Arrangement | Clevis type hitch |
| Jack Capacity | 7,000 lbs. (3,175 kg) |
| Jack Travel | 10 in. (25.4 cm) |
| Tires | (2) 16.5 x 16.1 - 10 ply |
| Wheels | (2) 16.1 x 12 - 8 bolt, drop center |
| Bearing Type | Tapered Roller |
| BALE LOADER | - |
| Type | Hydraulic twin boom arms, squeeze arms for square bales |
| Bale Tines | Tubular Steel, 10 degree float, 4-position adjustment for round bales |
| BALE CONVEYOR | - |
| Type | 4 roller chains with bolt-on cross slat |
| Drive | Hydraulic Orbital Motor with Adjustable Flow Control |
| CHAIN CASE | - |
| Sealed oil lube chain case reverses rotation and increases rotor speed; double 60-roller chain | |
| BALE SHREDDER CHAMBER | - |
| Max. Bale Size | Round: 6 ft. long x 6.5 ft. dia. (1.83 m x 1.98m) |
| Square: 52" x 52" x 8 ft. (1.32 m x 1.32 m x 2.4 m) | |
| Max. Bale Weight Each | 2,200 lbs. (1,000 kg) |
| Shredder Chamber Length | 120 in. (3.04 m) |
| Shredder Chamber Width | 91 in. (2.31 m) |
| Rotor Diameter | 26 in. (66 cm) Flails extended |
| Rotor Bearing | Ball, 2 in. (5.08 cm) |
| Number of Flails | 40 |
| Flail type | Heavy duty, 7/16 in. (11.11 mm) thick, 3 lbs. (1.36 kg), Heat treated spring steel, swinging |
| Number of Stripper Plates | Not available at this time |
| Deflector | Split, Hydraulic with infinite settings through a 120° range |
| Max. Horizontal Spread | Straw up to 50 ft. (15.24 m) |
| OPERATOR CONTROLS | - |
| Loader, Conveyor, Defector, Squeeze loader, and Slug Bar | |
| -1 Hydraulic Remote with Electric over Hydraulic Finger Tip Controls | |
| Bale Conveyor Speed - Conveyor speed control valve | |
| Slug bar - Hydraulic adjustment with infinite adjustment | |
| Deflector Position Setting - Hydraulic with split deflector | |
| REQUIREMENTS FOR OPERATION | - |
| PTO Horsepower Required | 90 hp (67.1 kw) minimum |
| PTO Type | 1000 RPM, 1-3/8 in. (3.49 cm) diameter shaft with 21 splines. |
| Min. Tractor Hydraulic Output | 8 gpm at 1500 psi (30.3 lpm X 10,345 kPa) |
| Hydraulic Remote Controls | (1) Double-Acting Control Valve with Quick Coupler Outlets |
| Tractor Weight | Must be of equal or greater weight than that of a 2800 APB with 2 bales |
| SMV Sign | Standard equipment |
| Road Lights | Standard equipment |
