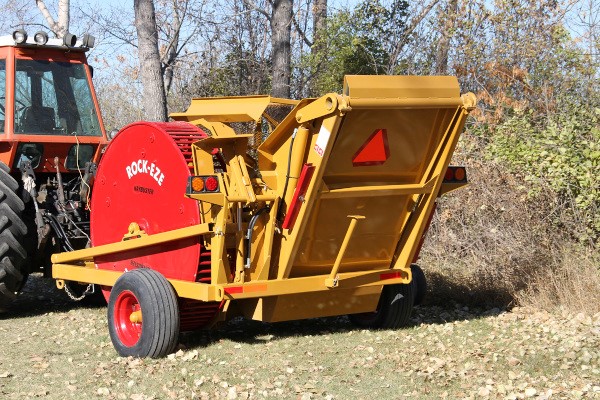

3106 Rock-EZE
Overview:
This rock picker has a reputation for picking up a high concentration of rocks from 2” to 15” size in one pass. Rock windrowing and picking are combined into an easy one-step operation. The heavy-duty construction makes the 3106 Rock-EZE a durable and high-quality machine, perfect for your needs. Haybuster's 3106 Rock-EZE rock windrower picker features: - Hardfaced rock windrower teeth - Picks rocks from 2 in (5.08 cm) to 15 in (38.1 cm) in diameter and will clear a 10 ft (3.05 m) path - The rockbox has a 1 cubic yd capacity with an 80 in dump height
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Get the results with the 3106 Rock-EZE.
This rock picker has a reputation for picking up a high concentration of rocks from 2” to 15” size in one pass. Rock windrowing and picking are combined into an easy one-step operation. The heavy-duty construction makes the 3106 Rock-Eze a durable and high-quality machine, perfect for your needs.
Haybuster's 31106 Rock-EZE rock windrower picker features:
- Hardfaced rock windrower teeth
- Picks rocks from 2in (5.08 cm) to 15in (38.1 cm) in diameter and will clear a 10 ft (3.05 m) path
- The rockbox has a 1 cubic yd capacity with an 80in dump height
Standard Features
- The Rock-EZE requires just 80 horsepower to operate.
- The windrower teeth comb through the top 1 inch of soil to dislodge the rocks. The windrower augers the rocks into the patented rock wheel.
- The ground driven rock wheel separates the excess dirt and stones smaller than 2 inches.
- The rocks are carried up on spring loaded paddles and are dumped into the rock box. The rock kicker assures that the rocks are distributed evenly within the rock box.
- The grate in the bottom of the rock box allows any soil that may have come in with rocks to return to your field.
- The rock box can dump 1 cubic yard of rocks 80 inches (203.20cm) high.
Optional Features
- The hopper dump hydraulic valve is available for tractors that have only 2 hydraulic remote valve outlets. Operation of the valve is activated by use of a pull rope.
Specifications
| WEIGHT | |
| Total | 4,600 lbs. (2,091 kg) |
| Hitch | 460 lbs. (209 kg) (IN FIELD MODE WITH WINDROWER AND ROCK WHEEL RAISED) |
| SHIPPING DIMENSIONS (WITH ROCK WINDROWER IN SHIPPING POSITION) | |
| Truck Freight Width | 7 ft. 10 in. (2.39 m) |
| (with left-side tire, wheel, hub & spindle removed) | |
| Tow Width | 9 ft. (2.74 m) |
| Length | 15 ft. 5 in. (4.70 m) |
| Height | 7 ft. 7 in. (2.31 m) |
| TRANSPORT & FIELD DIMENSIONS | |
| Width | 13 ft. (3.96 m) |
| Length | 15 ft. 5 in. (4.70 m) |
| Height | 7 ft. 7 in. (2.31 m) |
| Dump height | 7 ft. (2.13 m) |
| Ceiling Height Required to Dump | 14 ft. 4 in. (4.37 m) |
| CHASSIS FEATURES | |
| Towing Arrangement | Clevis type hitch |
| Hitch Type | Two position, swing into transport or into field positions |
| Tires | (2) - 11L x 16 |
| Wheels | (2) 11 in. ( 27.94 cm) |
| Drive | Hydraulic via #60 Chain and Drop Case |
| Lift | 2 in. x 8 in. (5.08 cm x 20.32 cm) |
| Double Acting Hydraulic Cylinder shared with Rock Wheel Lift | |
| ROCK WHEEL | |
| Outside Diameter | 6 ft. (1.83 m) |
| Width | 14-3/4 in. (37.47 cm) |
| Bar Spacing | 1-7/8 in. (4.76 cm) |
| Number of Rock Paddles | 5 |
| Paddle Type | Spring Cushioned |
| Drive | Ground driven |
| Lift | 2 in. x 8 in. (5.08 cm x 20.32 cm) |
| Double Acting Hydraulic Cylinder shared with Windrower Lift | |
| ROCK BOX | |
| Dimensions | 44 in. x 60 in. (111.76 x 152.40 cm) |
| Capacity | 1 cu. yd. (0.76 m³) |
| Bottom Grate | 1/2 in. (12.7 mm) |
| Thick with 15 - 1-1/2 in. x 10 in. (3.81cm x 25.4 cm) Slots | |
| Dump Height | 84 in. or 7 ft. (2.13 m) |
| Lift | 2 - 3 in. x 24 in. (7.62 cm x 61 cm) |
| Double Acting Hydraulic Cylinders | |
| ROCK KICKER | |
| 3 double acting valves with quick coupler outlets | |
| Tractor weight | Must be of equal or greater |
| weight than that of a fully loaded 3106 ROCK-EZE |
