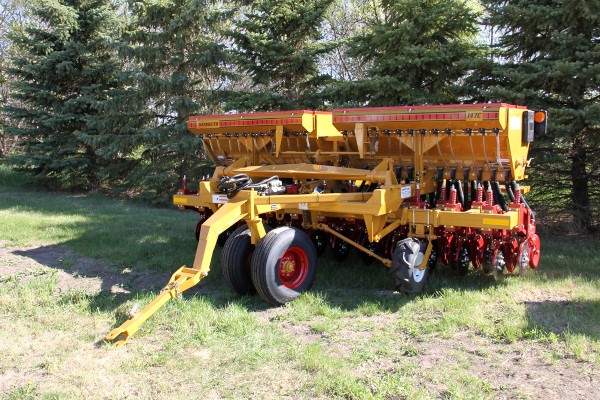

147C Seed Drill
Overview:
Superb quality when planting in heavy residue and hard-to-penetrate soil.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
The 147C is BACK! The 14’ rigid drill is in demand, with all the features that has made the 107C so popular.
Now planting in 14’ increments and weighing in over 5,600 lbs., this is a superb drill for planting in heavy residue and hard to-penetrate soil.
The 147C Grain Drill is designed to seed No-Till, Minimum Till, or conventional tilled fields. The two-compartment hopper offers the flexibility of seeding with dry fertilizer, seeding alone, or planting two different seeds.
If you need to plant in heavy trash conditions and have substantial acres to seed, the 147C is the drill for you!
Standard Features
- Lead Coulter System: Lead coulter blade is offset 1 ½” in front of dual disc, allowing for cutting of trash and penetrating the soil.
- 7” Row Spacing: All Haybuster drills plant with 7” spacing and each linkage is offset 9 ½” for planting in heavy residue.
- Infinite Seed Rate Adjustment: Easy to set, each box has infinite seed adjustment for accurate seeding rates, no matter what seed you’re planting.
- Down Pressure System: Each linkage has simple downpressure adjustments from 135 lbs. for conventional seeding up to 300 lbs. for no-till application.
- Depth Control Adjustment: Simple, solid depth control adjustment on each linkage.
- Mechanical Drive System: Wide, aggressive lug-type tractor tire drive wheel for positive ground contact to assure accurate planting.
- Cast Iron Linkages: Built of heavy-duty cast steel, the Haybuster drill linkage is even more durable than ever. The cast steel makes the overall drill even heavier, which is always a positive when reseeding pastures and all no-till applications.
- Three Seed Boxes: Haybuster drills come standard with two seed boxes with individual metering. The third box (front) is the optional legume box. With the legume box installed, Haybuster drills are capable of planting three different seeds at three different rates.
Optional Features
- Legume Box: Haybuster drills can be equipped with a third seed box designed for accurately feeding and metering small seeds and legumes. Also available with longer hoses and seed boots for shallow seed placement.
- Native Grass Attachment: Haybuster drills can be equipped with dual seed agitators, large seed hoses, and seed boots for accurately planting light, fluffy bearded seeds such as native grasses.
- Single Bottom Agitators: Prevent bridging of seeds near feed wheels to maintain flow of seeds. It is standard equipment with the Native Grass Kit or can be ordered separately for the rear box.
- Depth Band: Bolted on to the coulter to limit the maximum seeding depth.
- Brackets to mount two barrels for extra weight.
Specifications
| WEIGHT | |
| Total | 5,650 lbs (2,562.8 kg) |
| TRANSPORT & WORKING DIMENSIONS | |
| Overall Width | 13' 9" (4.19 m) |
| Height | 6' 2" (1.88 m) |
| Road Clearance | 7 in (17.78 cm) |
| CHASSIS FEATURES | |
| Front tire type | Dual Implement |
| Front tire size | 9.5 L x 14" (35.56 cm) |
| Rear tire type | Implement |
| Rear tire size | 7.60 L x 15" (38.1 cm) |
| Hydraulic Lift Cylinder | Standard equipment |
| SEED & METERING | |
| Molded Seed Cups with Wind Gards and | |
| Tripple Width Seed Wheels in Rear Seed Box | |
| Seed Box | 18 Bushel (634 Liter) |
| Feed System | Infinitely Adjustable Meter |
| Fertilizer Box | 1,540 lbs (499 kg) 13.5 bu (475.7 liter) |
| Walk Board Size | 10" x 10' 6" (24.5 cm x 3.2 m) |
| Walk Board Type | Steel Safety Grating |
| Seed/Fertilizer Hose Type | Rubber Convoluted |
| Seed/Fertilizer Hose Size | 1-1/4 in. (3.18 cm) ID |
| CAST SEED OPENERS | |
| Seeding Row Spacing | 7 in. (17.78 cm) |
| Seeding Width | 14' (4.3 m) |
| Number of Seed Openers | 24 |
| Opener Type | Coulter-Disc Offset Opener |
| Coulter Lead Distance | 1-1/2 in. (3.81 cm) |
| Opener Spring Pressure Range | 135 lbs. to 300 lbs. (61.24 kg to 136.08 kg) |
| Opener Travel Range | 10 in. (25.4 cm) |
| Disc Soil Penetration Range | Up to 3 in. (7.62 cm) |
| Coulter Size | 5/32" x 14" (4 mm x 35.56 cm) Dia. |
| Disc Size | 3/32" x 14" (2.4 mm x 35.56 cm) Dia. |
| Disc Bearings | Heavy Duty - Sealed 3/4 in. (1.9 cm) |
| Double Row Ball Bearings | |
| PRESS WHEELS | |
| Types | 2" x 15 ½" (50.8 mm x 39.37 cm) Steel |
| REQUIREMENT FOR OPERATION | |
| Drill Hitch | |
| Horsepower requirements | 70 HP Minimum - Dependent upon terrain and soil conditions |
| Tractor Weight - Must be of equal or greater weight than that of the drill filled with seed |
