77C Seed Drill
Overview:
Drill several different varieties and sizes of seed into all types of planting conditions.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features

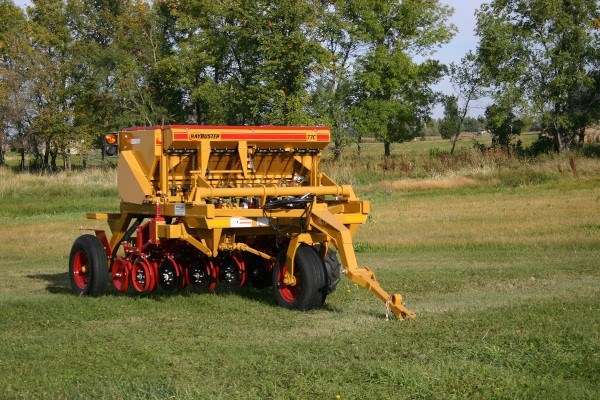

The model 77C Drill from Haybuster has the ability to plant many different varieties and sizes of seed into all types of planting conditions, ranging from heavy residue no-tillage to minimum tillage and conventional tillage fields.
It plants 7 feet wide and is perfect for smaller wildlife plots and renovating pastures. The 77C is a towable unit and requires just a minimum of 35 hp to operate, depending on terrain and soil conditions.
The two-compartment hopper offers the flexibility of seeding with dry fertilizer, seeding alone, or planting two different seeds.
Standard Features
- Lead Coulter System: Lead coulter blade is offset 1 ½” in front of dual disc, allowing for cutting of trash and penetrating the soil.
- 7” Row Spacing: All Haybuster drills plant with 7” spacing and each linkage is offset 9 ½” for planting in heavy residue.
- Infinite Seed Rate Adjustment: Easy to set, each box has infinite seed adjustment for accurate seeding rates, no matter what seed you’re planting.
- Down Pressure System: Each linkage has simple downpressure adjustments from 135 lbs. for conventional seeding up to 300 lbs. for no-till application.
- Depth Control Adjustment: Simple, solid depth control adjustment on each linkage.
- Mechanical Drive System: Wide, aggressive lug-type tractor tire drive wheel for positive ground contact to ensure accurate planting.
- Cast Iron Linkages: Built of heavy-duty cast steel, the Haybuster drill linkage is even more durable than ever. The cast steel makes the overall drill even heavier, which is always a positive when reseeding pastures and all no-till applications.
- Three Seed Boxes: The Haybuster drills come standard with two seed boxes with individual metering. The third box (front) is the optional legume box. With the legume box installed, Haybuster drills are capable of planting three different seeds at three different rates.
Optional Features
- Legume Box: Haybuster drills can be equipped with a third seed box designed for accurately feeding and metering small seeds and legumes. Also available with longer hoses, and seed boots for shallow seed placement.
- Native Grass Attachment: Haybuster drills can be equipped with dual seed agitators, large seed hoses, and seed boots for accurately planting light, fluffy bearded seeds such as native grasses.
- Single Bottom Agitators: Prevent bridging of seeds near feed wheels to maintain flow of seeds. It is standard equipment with the Native Grass Kit or can be ordered separately for the rear box.
- Depth Band: Bolted on to the coulter to limit the maximum seeding depth.
- Brackets to mount two barrels for extra weight.
Specifications
| WEIGHT | |
| Total | 3,600 lbs. (1,632.9 kg) |
| TRANSPORT & WORKING DIMENSIONS | |
| Overall Width | 7' 7" (2.31 m) |
| Height | 6' 2" (1.88 m) |
| Road Clearance | 7 in. (17.78 cm) |
| CHASSIS FEATURES | |
| Front tire type | Implement |
| Front tire size | 9.5 L x 14" (35.56 cm) |
| Rear tire type | Implement |
| Rear tire size | 7.60 L x 15 (38.1 cm) |
| Hydraulic Lift Cylinder | Standard equipment |
| SEED & METERING | |
| Molded Seed Cups with Wind Gards and | |
| Tripple Width Seed Wheels in Rear Seed Box | |
| Seed Box | 12 Bushels (423 liter) |
| Feed System | Infinitely Adjustable Meter |
| Fertilizer Box | 930 lbs. (421.8 kg) 11.5 Bushels (405.25 liter) |
| Walk Board Size | 10 in. x 88 in. (24.5 cm x 2.24 m) |
| Walk Board Type | Steel Safety Grating |
| Seed/Fertilizer Hose Type | Rubber Convoluted |
| Seed/Fertilizer Hose Size | 1-1/4 in. (3.18 cm) ID |
| CAST SEED OPENERS | |
| Seeding Row Spacing | 7 in. (17.78 cm) |
| Seeding Width | 7 ft. (2.13 m) |
| Number of Seed Openers | 12 |
| Opener Type | Coulter-Disc Offset Opener |
| Coulter Lead Distance | 1-1/2 in. (3.81 cm) |
| Opener Spring Pressure Range | 135 lbs. to 300 lbs. (61.24 kg to 136.08 kg) |
| Opener Travel Range | 10 in. (25.4 cm) |
| Disc Soil Penetration Range | Up to 3 in. (7.62 cm) |
| Coulter Lead Distance | 1-1/2 in. (3.81 cm) |
| Coulter Size | 5/32" x 14 in. (4 mm x 35.56 cm) dia. |
| Disc Size | 3/32" x 14 in. (2.4 mm x 35.56 cm) dia. |
| Disc Bearings | Heavy Duty - Sealed 3/4 in. (1.9 cm) |
| Double Row Ball Bearings | |
| PRESS WHEELS | |
| Types | 2 in. x 15-1/2 in. (5.08 cm x 39.37 cm) Steel |
| REQUIREMENT FOR OPERATION | |
| Drill Hitch | |
| Horsepower Requirements | 35 HP Minimum - Dependent upon terrain and soil conditions |
| Tractor Weight - Must be of equal or greater weight than that of the drill filled with seed |
