H-1030
Overview:

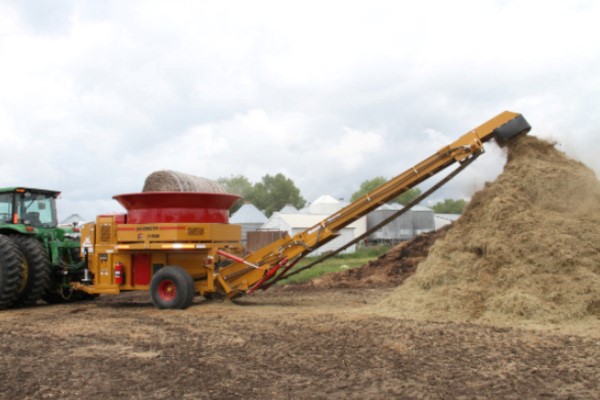

The latest introduction to the Haybuster PTO Tub Grinder family, with a 10 ft tilt tub and heavy-duty hammermill.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
The latest introduction to the Haybuster PTO tub grinder family is the H-1030 model.
It also has a 10’ tub and comes equipped with tub tilt and heavy-duty hammermill, that is located in the rear of the tub. It also has a dual-auger system to discharge material efficiently to the hydraulic folding stacking conveyor. The H-1030 requires a minimum of 150 hp up to 315 hp tractor. The newly designed electronic governor protects the tractor and machine from overloads, allowing the tub grinder to grind efficiently and consistently.
44” Heavy Duty Hammermill
The H-1030 is equipped with a 44” (111.76 cm) long heavy-duty hammermill that has been positioned to the rear of the tub. With the mill in the back, the ground product can easily be discharged and transferred to the slacking conveyor. The hammermill is constructed of 3/8” (0.95 cm) thick x 15-3/4 (40 cm) diameter plates with 1-1/4 (3.18 cm) case-hardened rods that hold 64-3/8 (0.95 cm) hammers. These hammers have four hardened edges that can be rotated and flipped to complete many hours of grinding. The mill is mounted to the frame with two 3” (7.62 cm) pillow block bearings on 3-1/2 (8.89 cm) stress-proof shaft. From tip to tip the mill has a 26” (66.04 cm) swing diameter.
8 Belt Drive System
The 8 multiple belt drive systems has been designed to handle increased horsepower and rotor speed. The spring tension belt drive system allows for constant belt tensions while belts stretch and wear without having to manually adjust. Access door allows for tension adjustments or drive maintenance.
Heavy-Duty Mill Grade/Slug Bar Combination
The heavy-duty bolt-in mill grate/slug bar combination is designed to allow the operator the ability to change the number of mill grate bars and slug bars as grinding conditions change. Simply take off or add as necessary. A geyser plate can be added to prevent product from being tossed straight up and out of the tub.
Dual High Capacity Augers
The H-1030 has 12” x 4’ (30.48 cm x 1.22 m) long dual augers for discharging ground product. Augers are mounted with two heavy-duty bearings located at the base of the discharge, allowing free-flowing of product to the stacking conveyor. Expansion of the dischargearea allows for higher capacity and reduces possibility for plugging.
Large Big Bite Tub
The H-1030 has a 10’3” (3.12 m) tub constructed of 10-gauge steel in the floor and 12-gauge steel in the tub. The tub is 44.5” (1.13 m) deep and will handle all types of bales.
ECU 710 Electronic Governor
On the H-1030 the tub rotation feeds the hammermill using a Wachendorf A35 with an ECU 710 Electronic Control Governor. This stabilizes engine load by adjusting the tub speed. It also controls tub direction, clockwise, stop and counter-clockwise.
Tub Drive
The tub drive has continuous teeth around the tub and dual spring tensioners to keep the chain tight. Power is provided by a single hydraulic motor controlled by the electronic governor.
90 Degree Tub Tilt
The H-1030’s tub opens a full 90 degrees for easy access to the hammermill and drive train for daily maintenance and easy screen changing.
24” Wide x 21’ Long High Capacity Stacking Conveyor
The 21’ long x 24” wide (6.4 m x 60.96 cm) hydraulically folding conveyor is designed for the increased capacity of a 10’ tub grinder. The conveyor folds over the top of the tub for easy transport. It is capable of stacking material up to 14’9” (4.5 m) high at a 40 degree angle.
Large 16.5 x 16.1, 14-Ply Flotation Implement Tires
Large 16.5 x 16.1, 14-ply flotation implement tires provide for easy transportation and a solid base for the H-1030.
Optional Grain-Grinding Hopper
Grain Grinding with a Haybuster PTO tub grinder has becomes a very popular use of our hay grinding machines. Installing a grain grinding holler over the hammermill and changing screens will convert H-1030 into a high-capacity grain grinder.
Standard Features
- The H-1030 is equipped with a 44” long heavy duty hammermill that has been positioned to the rear of the tub. With the mill in the back, the ground product can quickly be discharged and transferred to the stacking conveyor. The hammermill is constructed of 3/8” thick plates with 1 ¼” case-hardened rods that hold 64-3/8” hammers. These hammers can be rotated and flipped for many hours of grinding. The mill is mounted to the frame with two 3” pillow block bearings on a 3 ½” stress-proof shaft.
- The 8 multiple belt drive system has been designed to handle increased horsepower and rotor speed. The spring tension belt drive system allows for constant belt tension while belts stretch and wear without having to manually adjust.
- The heavy-duty bolt-in mill grate/slug bar combination is designed to allow the operator the ability to change the number of mill grate bars and slug bars as grinding conditions change. A geyser plate can be added to prevent product from being tossed straight up and out of the tub.
- The H-1030 has 12” diameter x 4’ long dual augers for discharging ground product. Augers are mounted with two heavy-duty bearings located at the base of the discharge, allowing free flow of product to the stacking conveyor. Expansion of the discharge area allows for higher capacity and reduces possibility for plugging.
- The H-1030 has a 10’ 3” wide heavy-duty tub. The tub is 44 ½” deep and will handle all types and sizes of bales.
- On the H-1030, the tub rotation feeds the hammermill using a Wachendorf Electronic Control Governor, which stabilizes engine load by adjusting or stopping the tub speed. It also controls tub direction, clockwise, stop, and counterclockwise as well as tracking grinding hours.
- The tub drive has continuous teeth around the tub and dual spring tensioners to keep the chain tight. Power is provided by a single hydraulic motor controlled by electronic governor.
- The H-1030’s tub opens a full 90 degreees for easy access to the hammermill and drive train for maintenance and service.
- The 21’ long x 24” wide hydraulicallyfolding conveyor is designed for the increased capacity of a 10’ tub grinder. The conveoyor folds over the top of the tub for easy transport. It is capable of stacking material up to 14’ 9” high at a the maximum angle.
- Large flotation implement tires provide for easy transportation and a stable base for the H-1030.
- Grain grinding with a Haybuster PTO tub grinder has become a very popular use of our hay grinding machines. Installing a grain grinding hopper on the hammermill and changing screens will convert the H-1030 into a high-capacity grain grinder.
Optional Features
PTO Shaft -1000 RPM
Tractor Half, 1-3/4 in, 20 Spline Shaft
Tractor Half, 1-3/8 in, 21 Spline Shaft
Geyser Plates
Geyser Plate Kit, use with the Slug Buster
Geyser Plate Kit, slotted, use with the Mill Grate
Hopper for Grain Grinding
Ear Corn Kit
Better diets for dairy cows - an article from the USDA -describes how finely ground grains/corn can offer a better diet for cows.
Closed Center Conversion Kit
This kit is required to operate the conveyor lift valve properly, with John Deere 60 and older series tractors.
Grinding Screens
1/8 in. (3.18 mm) Round Hole Screen Half*
3/16 in. (4.76 mm) Round Hole Screen Half**
1/4 in. (6.35 mm) Round Hole Screen Half
3/8 in. (9.52 mm) Round Hole Screen Half
1/2 in. (12.7 mm) Round Hole Screen Half
5/8 in. (15.88 mm) Round Hole Screen Half
3/4 in. (19.05 mm) Round Hole Screen Half
1 in. (25.4 mm) Round Hole Screen Half
1-1/2 in. (38.1 mm) Round Hole Screen Half
2 in. (50.8 mm) Round Hole Screen Half
3 in. (7.62 cm) Round Hole, Screen Half (standard)
4 in. (10.16 cm) Round Hole, Screen Half (standard)
5 in. (12.70 cm) Round Hole, Screen Half (standard)
6 in. (15.24 cm) Round Hole, Screen Half (standard)
7 in. (17.78 cm) Round Hole, Screen Half (standard)
8 in. (20.32 cm) Round Hole, Screen Half (standard)
Dummy (Open) Screen Half
*1/8 in. (3.18 mm) thick,
**3/16 in. (4.76 mm) thick, all other screens are 1/4 in. (6.35 mm) thick
Specifications
| WEIGHT | |
| Total | 13,300 lbs (6,032.78 kg) |
| Hitch | 1,925 lbs (873.17 kg) with conveyor raised and folded |
| TRANSPORT DIMENSIONS | |
| Width | 10' 4" (3.15 m) |
| Height | 10' 1" (3.07 m) |
| Length | 19' 4" (5.89 m) |
| OPERATING DIMENSIONS | |
| Total Width | 10' 2" (3.10 m) |
| Total Width, Tub Raised | 11' 9" (3.58 m) |
| CHASSIS FEATURES | |
| Towing Arrangement | Clevis hitch |
| Tires | (2) 16.5L x 16.1 SI - 14 Ply High Flotation Implement Tires |
| Wheels | (2) 16.1 x w14c - 8 Bolt, 6" (15.24 cm) Pilot |
| Bearings | Tapered roller bearings |
| TUB FEATURES | |
| Loading Height | 9' 2" (2.79 m) |
| Tub Width at Flare | 10' 2" (3.10 m) |
| Depth | 44.1" (1.12 m) |
| Tub Inside dia at Base | 95.5" (2.43 m) |
| Tub Wall Thickness | 12 gauge (2.66 cm) |
| Tub Floor Thickness | 10 gauge (3.42 mm) |
| HAMMERMILL - HEAVY DUTY | |
| Length | 43" (109.2 cm) |
| Diameter, Hammers Extended | 26" (66.04 cm) |
| Feed Opening | 28" x 45" (71.1 cm X 114.3 cm) |
| Hammers | HD-1/2" (12.7 mm) A.B. Hardened Steel, Swing |
| Number of Hammers | 64 |
| Hammer Rods | 1-1/4" (31.75 mm) Dia, Case-Hardened |
| Cylinder Plates | HD Mills: 3/8" (0.95 cm) Thick x 15 3/4" (40.01 cm) |
| Cylinder Shaft | 3 1/2" (8.89 cm) Stress Proof Steel |
| Bearings | 3" (7.62 cm) Pillow Block |
| Drive | PTO through Multiple V-Belts, 1,000 RPM, 1-3/8" dia. 21 spline shaft, or 1-3/4" dia. 20 spline shaft |
| Screens | 1/8" (3.18 mm), 3/16" (4.76 mm), or ¼" (6.35 mm) Thick and Various Hole Sizes from 1/8" (3.18 mm) to 8" (203.2 mm) - Must Order 2 Screens of Choice With Machine-Not Standard equipment |
| BELLY AUGERS | |
| Size | Twin 12" (30.48 cm) diameter x 48" (121.92 cm) long |
| Drive | Hydraulic |
| DISCHARGE CONVEYOR | |
| Type | Rubber Belt with cleats |
| Drive | Hydraulic |
| Drive & Idler Roller Type | Rubber Lagged Drive Pulley, "Easy Clean" Idler |
| Length | 21' (6.4 m) |
| Width | 24" (60.96 cm) |
| Maximum Conveyor Lift Height | 14' 9" (4.5 m) @ 40° Incline |
| Conveyor Lift | Hydraulic |
| Conveyor Lift Cylinder | 3-1/2" x 20" (8.89 cm x 50.8 cm) |
| Conveyor Fold | Hydraulic |
| OPERATOR CONTROLS | |
| Tub Rotation | Wachendorf A35 display switch controlled Clockwise, Stop, & Counter-Clockwise |
| Tub Speed | Wachendorf A35 with ECU 710 Control Electronic Governor Stabilizes Engine Load by Adjusting Tub Rotation Speed |
| Conveyor Lift & Fold | Electric/Hydraulic Switch Control Uses Tractor SCV |
| Tub Tilt | Electric/Hydraulic Switch Control Uses Tractor SCV |
| Conveyor On/Off | Wachendorf A35 display switch controlled |
| REQUIREMENTS FOR OPERATION TRACTOR | |
| PTO Horsepower Required | 150 HP (118.85 kw) to 315 HP (234.9 kw) |
| Min. Hydraulic Output | 8 gpm at 1,500 psi (30.3 lpm. x 10,345 kPa) |
| Hydraulic Remote Controls | 1 Double-Acting Control Valves With Quick Coupler Outlets |
| Electrical | 12 VDC |
| GRINDER | |
| Hydraulic Reservoir Capacity | 60 gallons (227.13 L) of Hydraulic Oil (Mobile 423, CENEX Super HTB or Equivalent) |
| Mill Grate Kit | This kit includes; 5 removable mill grates, and 6 removable slug bars for improved grinding performance in tough hay and stover |
