H-1135
Overview:

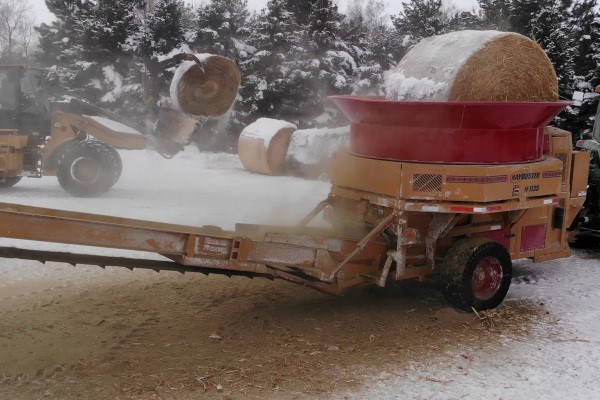

The H-1135 Big Bite tub grinder is Haybuster’s newest and largest heavy-duty PTO grinder.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
The H-1135 Big Bite tub grinder is Haybuster’s newest and largest heavy-duty PTO grinder.
The H-1135 Big Bite tub grinder is designed with the features and the durability you need in an 11’ tub grinder. Some of these features include tub tilt, heavy hammermill with ½” plates and forged hammers along with 1 ¼” rods, dual augers, and a 26’ long stacking conveyor.
Dual High Capacity Augers
The H-1135 has 12” diameter x 4’ long dual augers for discharging ground product. Augers are mounted with two heavy-duty bearings located at the base of the discharge, allowing free flow of product to the stacking conveyor. Expansion of the discharge area allows for higher capacity and reduces possibility for plugging.
90 Degree Tilt Tub
The H-1135’s tub opens a full 90 degreees for easy access to the hammermill and drive train for maintenance and service.
Electronic Governor
On the H-1135, the tub rotation feeds the hammermill using a Wachendorf Electronic Control Governor, which stabilizes engine load by adjusting or stopping the tub speed. It also controls tub direction, clockwise, stop, and counter-clockwise as well as tracking total grinding hours and job hours.
Drive System
The newly designed drive system was updated for easier service and maintenance of the H-1135. The drive allows for a much smoother running grinder.
Heavy Duty Axle Transport System
445/50R x 22.5 Super Single Tires 16.1 x W14C, 8 bolt rims with 6” pilot hole. Tapered Bearing System.
High Capacity Stacking Conveyor
The hydraulic folding 24” wide by 26’ long high-capacity stacking conveyor is designed for the increased capacity of the H-1135. It can stack material 18’ 6” high.
50" Heavy Duty Hammermill
The Big Bite 50” heavy-duty hammermill is now standard equipment and is located at the rear of the tub to reduce the length of the discharge. This, along with the increased area around and under the screens, accelerates product discharge and reduces the potential of plugging. The heavy-duty hammermill operates at 2140 rpm and is constructed with 88 forged swinging hammers. The hammers are hardened and are held in place with 1 ¼” case-hardened hammer rods. The hammermill is mounted on a 3 ½” stress-proof shaft supported by 3 ¼” bearings.
9 Bar Mill Grate
Heavy duty bolt in 9 bar mill grate allows operator the ability to remove and add bars as grinding conditions change.
Remote Control
Controls tub forward, stop, reverse and speed. Controls conveyor raise and lower.
8 Belt Drive System
The belt drive system for the hammermill has 8-5 VP belts to handle the increased rotor speed and increased horsepower capacity. The spring tension belt drive automatically adjusts belt tension as the belts stretch.
Optional Grain-Grinding Hopper
Grain grinding with a Haybuster PTO tub grinder has become a very popular use of our hay grinding machines. Installing a grain grinding hopper on the hammermill and changing screens will convert the H-1135 into a high-capacity grain grinder.
Standard Features
- The H-1135 has 12” diameter x 4’ long dual augers for discharging ground product. Augers are mounted with two heavy-duty bearings located at the base of the discharge allowing free flow of product to the stacking conveyor. Expansion of the discharge area allows for higher capacity and reduces possibility for plugging.
- On the H-1135, the tub rotation feeds the hammermill using a Wachendorf Electronic Control Governor, which stabilizes engine load by adjusting or stopping the tub speed. It also controls tub direction, clockwise, stop, and counter-clockwise as well as tracking total grinding hours and job hours.
- The newly designed drive system was updated for easier service and maintenance of the H-1135. The drive allows for a much smoother running grinder.
- The belt drive system for the hammermill has 8-5 VP belts to handle the increased rotor speed and increased horsepower capacity. The spring tension belt drive automatically adjusts belt tension as the belts stretch.
- Grain grinding with a Haybuster PTO tub grinder has become a very popular use of our hay grinding machines. Installing a grain grinding hopper on the hammermill and changing screens will convert the H-1135 into a high-capacity grain grinder.
- The H-1135’s tub opens a full 90 degrees for easy access to the hammermill and drive train for maintenance and service.
- Heavy Duty Axle Transport System 445/50R x 22.5 Super Single Tires 16.1 x W14C, 8 bolt rims with 6” pilot hole. Tapered Bearing System.
- The hydraulic folding 24” wide by 26’ long high-capacity stacking conveyor is designed for the increased capacity of the H-1135. It can stack material 18’ 6” high.
- The Big Bite 50” heavy-duty hammermill is now standard equipment and is located at the rear of the tub to reduce the length of the discharge. This, along with the increased area around and under the screens accelerates product discharge and reduces the potential of plugging. The heavy-duty hammermill operates at 2140 rpm and is constructed with 88 forged swinging hammers. The hammers are hardened and are held in place with 1 ¼” case-hardened hammer rods. The hammermill is mounted on a 3 ½” stress-proof shaft supported by 3 ¼” bearings.
- Heavy duty bolt in 9 bar mill grate allows operator the ability to remove and add bars as grinding conditions change.
- Controls tub forward, stop, reverse and speed. Controls conveyor raise and lower.
Optional Features
PTO Shaft -1000 RPM
Tractor Half, 1-3/4 in, 20 Spline Shaft
Tractor Half, 1-3/8 in, 21 Spline Shaft
Hammermill Feeding
Slug Buster, 5 tooth screen hold down Bolt in Mill grate/slug bar for grinding tough hay or crop residue.
Geyser Plates
Geyser Plate Kit, use with the Slug Buster
Geyser Plate Kit, slotted, use with the Mill Grate
Hopper for Grain Grinding
Ear Corn Kit
Better diets for dairy cows - an article from the USDA - describes how finely ground grains/corn can offer a better diet for cows.
Closed Center Conversion Kit
This kit is required to operate the conveyor lift valve properly with John Deere 60 and older series tractors.
Grinding Screens
1/8" (3.18 mm) Round Hole Screen Half*
3/16" (4.76 mm) Round Hole Screen Half**
1/4" (6.35 mm) Round Hole Screen Half
3/8" (9.52 mm) Round Hole Screen Half
1/2" (12.7 mm) Round Hole Screen Half
5/8" (15.88 mm) Round Hole Screen Half
3/4" (19.05 mm) Round Hole Screen Half
1" (25.4 mm) Round Hole Screen Half
1 1/2" (38.1 mm) Round Hole Screen Half
2" (50.8 mm) Round Hole Screen Half
3" (7.62 cm) Round Hole, Screen Half (standard)
4" (10.16 cm) Round Hole, Screen Half (standard)
5" (12.70 cm) Round Hole, Screen Half (standard)
6" (15.24 cm) Round Hole, Screen Half (standard)
7" (17.78 cm) Round Hole, Screen Half (standard)
8" (20.32 cm) Round Hole, Screen Half (standard)
Dummy (Open) Screen Half
*1/8" (3.18 mm) thick, **3/16" (4.76 mm) thick, all other screens are 1/4" (6.35 mm) thick
Specifications
| WEIGHT | |
| Total | 14,500 lbs (6,577.1 kg) |
| Hitch | 1,925 lbs (873.2 kg) with conveyor raised and folded |
| TRANSPORT DIMENSIONS | |
| Width | 11' 4" (3.45 m) |
| Height | 10' 7" (3.2 m) |
| Length | 21' 8" (6.6 m) |
| OPERATING DIMENSIONS | |
| Total Width | 11' 3" (3.35 m) |
| Total Width, Tub Raised | 12' 6" (3.81 m) |
| Total Length, Conveyor Fully Down | 41' 8" (12.7 m) |
| Total Length, Conveyor Fully Up | 21' 7" (6.58 m) |
| Total Height, Conveyor Fully Up | 25' 7" (7.85 m) |
| Raised Tub Height | 14' 2" (4.32 m) |
| CHASSIS FEATURES | |
| Towing Arrangement | Clevis hitch |
| Tires | Two 445/50R x 22.5 - 20 Ply Toyo Trailer Tires |
| Wheels | Two 16.1 x w14c - 8 Bolt, 6" (15.24 cm) Pilot |
| Bearings | Tapered roller |
| TUB FEATURES | |
| Loading Height | 9' 2" (2.79 m) |
| Tub Width at Flare | 11' 3" (3.35 m) |
| Depth | 50" (1.27 m) |
| Tub Inside dia at Base | 8' 11" (2.72 m) |
| Tub Wall Thickness | 12 gauge (2.66 cm) |
| Tub Floor Thickness | 10 gauge (3.42 mm) |
| HAMMERMILL - HEAVY DUTY | |
| Length | 50" (127 cm) |
| Diameter, Hammers Extended | 26" (66.04 cm) |
| Feed Opening | 28" x 52" (71.1 cm X 132.1 cm) |
| Hammers | HD-1/2" (12.7 mm) A.B. Hardened Steel, Swing |
| Number of Hammers | 88 |
| Hammer Rods | 1 1/4" (31.75 mm) Dia, Case-Hardened |
| Cylinder Plates | HD Mills: 1/2" (1.27 cm) Thick x 15 3/4" (40.01 cm) |
| Cylinder Shaft | 3 1/2" (8.89 cm) Stress Proof Steel |
| Bearings | 3 1/4" (8.23 cm) Pillow Block |
| Drive | PTO through Multiple V-Belts, 1,000 RPM, 1-3/8" dia. 21 spline shaft, or 1-3/4" dia. 20 spline shaft |
| Screens | 1/8" (3.18 mm), 3/16" (4.76 mm), or 1/4" (6.35 mm) Thick and Various Hole Sizes from 1/8" (3.18 mm) to 8" (203.2 mm) - Must Order 2 Screens of Choice With Machine-Not Standard equipment |
| Screen Area | 2,781 sq. in. (7,063 sq. cm) |
| BELLY AUGERS | |
| Size | Twin 12" (30.48 cm) diameter x 4' 6" (1.37 m) long |
| Drive | Hydraulic |
| DISCHARGE CONVEYOR | |
| Type | Rubber Belt with cleats |
| Drive | Hydraulic |
| Drive & Idler Roller Type | Rubber Lagged Drive Pulley, "Easy Clean" Idler |
| Length | 26' (7.92 m) |
| Width | 24" (60.96 cm) |
| Maximum Conveyor Discharge Height | 18' 6" (5.46 m) @ 40° Incline |
| Conveyor Lift | Hydraulic |
| Conveyor Lift Cylinder | 3" x 20" (7.62 cm x 50.8 cm) |
| Conveyor Fold | Hydraulic |
| OPERATOR CONTROLS | |
| Tub Rotation | 3-Position Hydraulic Valve for Clockwise, Stop & Counter-Clockwise |
| Tub Speed | DuraTech Model RCB93 Electronic Governor Stabilizes Engine Load by Adjusting Tub Rotation Speed |
| Conveyor Lift & Fold | 3-Position Hydraulic Valve for Raise, Hold, Lower / 3-Position for Fold, Unfold, Hold |
| Tub Tilt | Tractor Hydraulic |
| Conveyor On/Off | 2-Position Hydraulic Valve for Forward/Off |
| REQUIREMENTS FOR OPERATION | |
| PTO Horsepower Required | 200 HP (149.2 kw) to 315 HP (234.9 kw) |
| Min. Hydraulic Output | 8 gpm at 1,500 psi (46 lpm x 10,345 kPa) |
| Hydraulic Controls | Two Double-Acting Control Valves With Quick Coupler Outlets |
| Electrical | 12 VDC |
| GRINDER | |
| Hydraulic Reservoir Capacity | 60 gallons (227.13 L) of Hydraulic Oil |
| (Mobile 423, CENEX Super HTB or Equivalent) | |
| Mill Grate Kit | This kit includes 5 removable mill grates and 6 removable slug bars for improved grinding performance in tough hay and stover |
