H-1155
Overview:

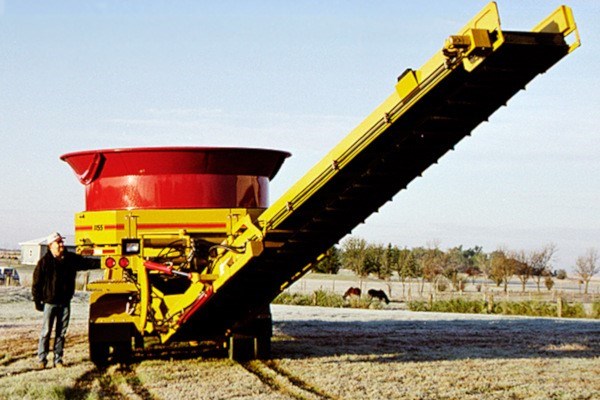

Get the convenience of a fifth-wheel semi trailer so you can use your existing truck for other jobs when you’re not grinding.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Our 1155 tub grinder is used in beef lots, dairy farms and on ranches all over the world.
They take rounds and big squares and grind them through a variation of screen sizes to get you the product or nutrition you want.
Rotary Self-Cleaning Screen
The enclosed engine compartment and rotary self-cleaning screen protects the engine from dirt and debris buildup. An enclosed engine compartment also reduces the noise level. The 1155 also gives you easy access to the engine with a 3-door entry on either side, plus a front door to the radiator.
C15 Caterpillar Electronic Diesel Engine
Powered by either a 475 HP (354 kw) or a 540 HP (403 kw) C15 Caterpillar Electronic diesel engine whose state-of-the-art electronic fuel injection system, this engine decreases fuel consumption. This allows it to produce ground hay at a rate that will make you money on every job. It’s strong enough to chew through those tough, wet bales, and it has all the features you’ve come to expect from Caterpillar, including reliability, cold weather starting, unsurpassed product support, and proven resale value.
KPTO Fluid Coupler
The KPTO fluid coupler transmits power with up to 98% efficiency and eliminates the mechanical clutch. It’s goof-proof. Acting as a torque limiter, it can engage or disengage at full engine RPM without damage – reducing the chance of problems in the drive train.
50 Degree Oscillating Stacking Conveyor
The 30 in. wide x 26 ft. long stacking conveyor piles hay to over 18 feet in height. The conveyor can oscillate left to right up to 50 degrees, which means you can not only make the pile tall, you can make it wide as well.
50” Big Bite Hammermill
The Big Bite hammermill is located at the rear of the sub frame, reducing the length of the belly conveyor, improving the belly conveyor service accessibility, and moving the dust away from the operator. The hammermill is also dynamically balanced to give you smoother operation, longer life, and less maintenance.
90 Degree Tub Tilt
The 11 ft. wide x 50 in. deep tilt tub opens a full 90 degrees for access to the hammermill and screens as well as for normal servicing.
11’ Tub with Tip in Tub Flares (Sides)
The 11 ft. wide x 50 in. deep tub has tip in tub flares (sides). The sides are folded in to narrow the transport width of the grinder.
Command Console with Optional Remote Control
A central command console is conveniently located and controls all the functions of the machine. An optional remote control is available to keep you out of the dust. It controls the tub rotation, conveyor lift, conveyor articulation, and engine stop. The electronic governor keeps the engine RPMs constant, resulting in increased effeciencies and constant load.
Standard Features
- The Truck Mounted Big Bite 1150 is easy to transport between jobs and is easy to maneuver into tight spots. Because the unit is mounted over the trucks rear axles, there is traction to get through the sloppiest farm and hay yards.
- The exclusive, innovative self-cleaning rotary screen protects the radiator and engine air intake from chaff and fines. That means no more plugged radiators, so there’s less down time.
- The KPT Fluid coupler transmits power with up to 98% efficiency and eliminates the mechanical clutch. It’s goof proof, can engage or disengage at full engine rpm without damage and requires minimal maintenance.
- The 30 inch x 26 ft. discharge conveyor piles hay over 18 feet high. The conveyor can articulate left to right up to 50 degrees which means you can not only make the pile big, you can make it wide too.
Specifications
| WEIGHT (DRY) | |
| Total | 34,100 lbs. (15,468 kg) |
| Axle | 27,900 lbs. (12,656 kg) |
| Tongue | 6,200 lbs. (2,813 kg) |
| TRANSPORT DIMENSIONS | |
| Width | 11 ft. (3.35 m) |
| Height | 11 ft 6 in (3.51 m) |
| Length | 31 ft (9.448 m) |
| ENGINE | |
| Manufacturer | CATERPILLAR |
| Model | C15 |
| Type | In-line, 6 cylinder, 4 -Stroke Diesel |
| Power Rating | 475 HP (354 kw) or 540 HP (403 kw) |
| Bore | 5.4 in (137 mm) |
| Stroke | 6.5 in (165 mm) |
| Displacement | 983 cu. in. (14.6 L) |
| Fuel System | Electronic Unit Injector |
| Aspiration | Turbocharged and air to air aftercooling |
| Compression Ratio | 16.25 : 1 |
| Rotation (from flywheel end) | Counter-clockwise |
| Engine Housing | A sealed enclosure with a rotary screen at the front that removes debris from the air prior to being drawn through the radiator. Air is directed around engine components to provide surface cooling and discourages dust buildup. Air exits out the bottom between the engine and right and left frame channels. 3 generous sized service access doors are provided on both the right and left sides. |
| Radiator | Staggered Core with 7 fins per inch |
| Cooling System | 9.2 gal. (34.8 L) |
| Lube Oil System (refill) | 10 gal (38 L) |
| Engine Air Induction | Clean air is drawn in front of radiator through an inline separator and dry type air filter with safety element. |
| Engine Block Heater | 120V / 2000 watt |
| FLUID COUPLING | |
| Manufacturer | TRANSFLUID |
| Model | Model KPTO-19 Fluid Coupling |
| Type | Drain Type Fluid Coupling |
| Charge Pump | Gear type |
| Cooler | Oil to air, thermostatic controlled electric fan |
| Features | Unloaded engine warm-up, smooth startup, shock and overload protection, absorbs vibrations, electric/hydraulic control valve |
| Maintenance | Easy access oil filter and drain plug |
| Fluid Capacity | 9.24 gal (35 L) |
| HYDRAULIC SYSTEM | |
| Cooler | Oil to Air, radiator mounted |
| Pump | Gear type, 2 section, output is 25 & 15 gpm @ 2100 psi., engine mounted |
| Control Valves | Electric/Hydraulic, 4 valves - 1) 4 spool, 2) single spool, and 1 proportioning |
| Reservoir Capacity | 50 gallon (171 liter) |
| Tub Tilt | 3 in x 30 in (7.62 x 76.2 cm) Hydraulic Cylinder |
| Conveyor Lift | 2) 3 in x 36 in ( 7.62 x 91.44 cm) Hydraulic Cylinders |
| Conveyor Fold | 2) 3 in x 30 in (7.62 x 76.2 cm) Hydraulic Cylinder |
| Conveyor Articulation | 2) 2 in x 8 in (5.08 x 20.3 cm) |
| CHASSIS FEATURES | |
| Fire Suppression | 2) 20 lbs (9.09 kg) Fire Extinguishers, front mounted on the right and left side of the main frame |
| Fuel Capacity | 300 gal (1,135 L) |
| Lights | Clearance, Directional, and Brake |
| Towing Arrangement | 5TH WHEEL |
| Axle | Tandem, rated 22,500 lbs. |
| HAMMERMILL | |
| Length | 50" (127 cm) |
| Diameter, Hammers Extended | 26" (66.04 cm) |
| Feed Opening | 25 in x 52 in (63.5 cm x 133 cm) |
| Mill Feeding | Mill Grate |
| Hammers | 1/2" (1.27 cm) AR-Hardened Steel , Swing |
| Number of Hammers | 88 |
| Hammer Rods | 1-1/4 in (31.75 mm) dia., Case Hardened |
| Mill Plates | 1/2" (1.27 cm) thick X 16" (40.64 cm) dia. |
| Mill Shaft | 4-1/2 in (114.3 mm), Stress Proof Steel |
| Bearings | 4 in (101.6 mm), Pillow Block Bearings |
| Drive | Direct from Fluid Coupling |
| Screens | 1/8 in (3.18 mm), 3/16 in (4.76 mm), or 1/4 in (6.35 mm) thick and various hole sizes from 1/8 in (3.18 mm) to 8 in (203.2 mm) |
| Screen Area | 2,781 sq. in. (7,063.75 sq. cm.) |
| TUB FEATURES | |
| Loading Height | 9 ft 6 in (2.89 m) |
| Tub Width | 11 ft (3.35 m) |
| Depth | 50 in. (127 cm) |
| Tub Diameter at Base | 9 ft (2.74 m) |
| Tub Wall Thickness | 12 gauge (2.66 mm) |
| Tub Floor Thickness | 1/4 in (6.35 mm) |
| Drive Mechanism | Electro/Hydraulic |
| Speed control | Electronic Governor |
| Service Access | Tub opens to 90 degrees to the right side |
| BELLY CONVEYOR | |
| Type | Rubber Belt with 3/4 in (19.05 mm) cleats |
| Width | 36 in (91.4 cm) |
| Drive | Hydraulic |
| Drive & Idler Rollers Type | "Easy Clean" |
| STACKING CONVEYOR | |
| Type | Rubber Belt with 1-1/2 in (38.1 mm) Cleats |
| Drive | Hydraulic, Top driven |
| Drive & Idler Roller Type | "Easy Clean" |
| Length | 26 ft. (7.92 m) |
| Width | 30 in. (76.2 cm) |
| Max. Conveyor Discharge Height | 18 ft 3 in (5.56 m) |
| Lift | Electric/Hydraulic |
| Fold | Electric/Hydraulic |
| Oscillation (50°) | Electric/Hydraulic |
| OPERATOR CONTROLS CENTRAL COMMAND CONSOLE | |
| Engine Functions | |
| Battery Disconnect | Rotating key, switch with power off, lock, power on |
| Ignition | Rotating key switch with lock, power on, start, run and power off |
| Throttle | 3-position switch to increase rpm, hold rpm, and decrease rpm |
| Emergency Engine Stop | 2-position switch, pull out to run and push in to stop |
| Tub Grinder Functions | |
| Hammermill | 2-position switch, pull out to engage and push in to disengage 2-position safety switch, push and hold until hammermill begins to spin |
| Conveyor Lift | 3-position switch to raise, hold, & lower |
| Conveyor Oscillation | 3-position switch for right, hold, & left |
| Conveyor Storage | 3-position switch to fold, hold or to unfold |
| Belly & Discharge Conveyor | 2-position switch to engage and disengage |
| Tub Rotation | 3-position switch to operate tub clockwise, stop, & counter-clockwise |
| Tub Speed | Model RCB93 electronic governor stabilizes engine load by adjusting tub rotation speed |
| Tub Tilt | 3-position switch to raise, hold, & lower |
| REAR COMMAND CONSOLE | |
| Conveyor Lift | 3-position switch to raise, hold, & lower |
| Conveyor Oscillation | 3-position switch for right, hold, & left |
| Conveyor Storage | 3-position switch to fold, hold or to unfold |
