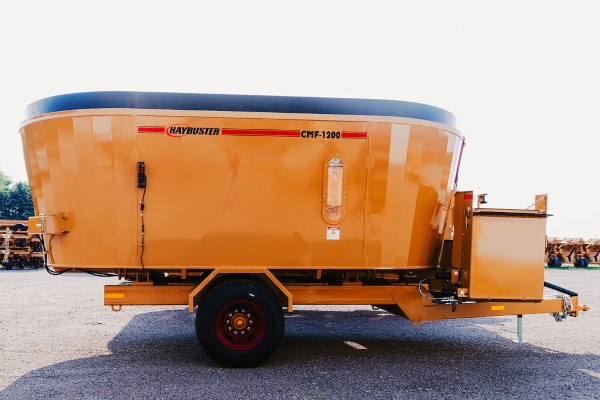

CMF-1200
Overview:
With 1,200 cu. ft. mixing capacity, this feed mixer can evenly distribute products for the best nutrition.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Standard Features
Mixing Capacity: The CMF-1200 has a 1200 cu. ft. mixing capacity with a tare weight of 34,000 lbs.
Unloading Door: Large 24” x 42” unloading door for fast, even unloading and clean out.
Augers: Heavy-duty 88” screw augers with seven self-sharpening serrated knives each.
Oscillating Axles: Oscillating heavy-duty axles with four 385/65R 22.5 tires provide even weight distribution on uneven or frozen ground.
Heavy-Duty Frame: The CMF-1200 is built with a heavy-duty 6” x 10” x 3/8” steel tube frame for strength and durability.
2-Speed Gearbox: The CMF-1200 comes equipped with a heavy-duty constant velocity 1000 RPM PTO with 2-speed gearbox. The 2-speed gearbox is used for loaded startups and heavy rations.
Optional Features
Unloading Options:
Cross Conveyor only with right- or left-hand drives.
Cross Conveyor with spouts or endgates. Magnets are available for the spouts.
Cross Conveyor with hydraulic conveyor extension. Available in right-hand, left-hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at a time. Spouts and optional magnets are also available.
Dogleg Style Conveyor Also Available
Magnets on Discharge Spouts: Magnets on the spouts remove ferrous metal, such as bale wire, from feed providing the highest quality feed available.
Rear Discharge Door: The optional rear discharge door provides an additional means of discharging feed.
Digi-Star Scale: Choose from any Digi-Star scale indicator. Also available are optional Digi-Star Feed Management Programs.
Specifications
| WEIGHT | |
| Total | 21,740 lbs (9,961.1 kg) |
| Tongue Weight | 2,300 lbs (1,043.26 kg) |
| TRANSPORT DIMENSIONS | |
| Width | 11' 1/2" (3.37 m) |
| Length | 27' 2 1/4" (8.29 m) |
| Height | 10' 7" (3.23 m) |
| WORKING DIMENSIONS | |
| Loading Height | 10' 7" (3.23 m) |
| Width | Between 11'6 1/2" and 13' Depending on Conveyor |
| CHASSIS FEATURES | |
| Towing Arrangement | V-Block or Clevis Type Hitch |
| Jack Capacity | 7,000 lbs (3,175.2 kg) |
| Jack Travel | 10" (25.4 cm) |
| Tires | (4) 385/65R 22.5 |
| Wheels | Four 22.5 x 12.25" |
| Axle | Oscillating |
| Bearings | Tapered Roller |
| Extensions | 12" Rubber (standard) |
| CAPACITIES | |
| Mixing capacity with 12" Extension | 1,200 cu. ft. (33.98 cu. m) |
| Gross Weight Capacity | 55,740 lbs (25,283.24 kg) |
| Tare Weight - TMR | 34,000 lbs (15,422.14 kg) |
| AUGERS | |
| Number | 2 |
| Diameter | 88" (282.52 cm) |
| Flighting Thickness | 5/8" (1.59 cm) |
| Number / Thickness Knives | 18-1/4" (0.635 cm) Self-Sharpening |
| DRIVELINE AND GEARBOXES | |
| Drive Line | 1 3/4" (4.45 cm) Constant velocity 1,000 RPM PTO shaft |
| With Two-Speed Gearbox | |
| Clutch | Two free motion automatic clutches |
| Gearboxes | Two HD Gearboxes with 2-Year Warranty |
| UNLOADING CONVEYOR | |
| Type | 36" (91.44 cm) Chain With Hydraulic Orbital Motors |
| Discharge Height | 26 5/8" (67.63 cm) to 55" (139.7 cm) |
| Discharge Options | Left, right, both |
| MISCELANEOUS | |
| Door Opening | 24" (60.96 cm) x 42" (106.68 cm) |
| Floor Thickness | 3/4" (1.91 cm) |
| Side Wall Thickness | 1/4" (0.635 cm) with 24" (60.96 cm) 12 Gauge Replaceable Steel Wall Liner |
| Scale | Digi-Star 4-Point Scale with Optional Digi-Star Scale Monitor |
| Observation Windows | 2 |
| REQUIREMENT FOR OPERATION | |
| PTO Horsepower Required | 150 HP minimum |
| PTO Type | 1,000 RPM, 1 3/4" dia PTO Shaft with 20 splines |
| Min. Tractor Hydraulic Output | |
| SMV Sign and Road Lights | Standard Equipment |
| Electrical | 12 VDC (battery included) |
