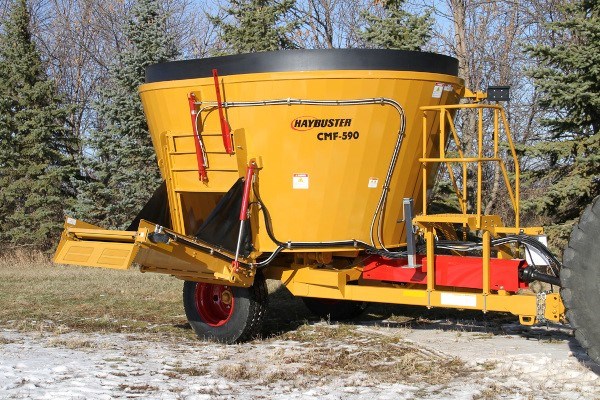

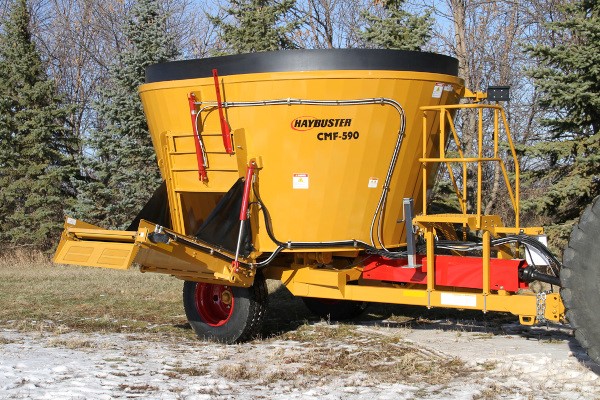

CMF-590
Overview:
The 590 is part of our CMF series of vertical mixers that cut materials like hay, straw, and corn stocks.
They also mix materials like distillers, silage, corn, and more.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Standard Features
Conveyor: The unloading door is 42” wide and can be on the left or right side of the machine. Conveyor options are a 3’ or 5’ extension which gives a feeding height range of between 40” and 62”.
Magnets: Magnets on the discharge chutes remove metal, such as bale wire, from feed providing protection for your cows.
CV PTO: The CMF-590 comes equipped with a Heavy-Duty Constant Velocity 1000 RPM PTO. The 2-Speed Gear Box is used for loaded start-ups and heavy rations.
4-Point Scale: 4-point scale for accurate weighing, with reduced scale bounce during loading and feeding.
Rigid Axles: Rigid heavy-duty axles on 2 385/65R 22.5 tires.
Clutch: Free motion clutches on the driveline protect the heavy-duty gear boxes. Gear boxes come with a 2-year warranty.
Digi-Star: The CMF-590 is equipped with a Digi-Star 4 pt. scale and monitor. Various monitor options are available. The Digi-Star system is powered by a standard onboard 12-volt battery. Digi-Star feed rationing programs are also available.
Auger with Knives: 104” heavy-duty single auger with up to 7 self-sharpening serrated knives driven by an HD USA gearbox.
Ladder: Ladder mounted on front of machine allows for viewing of mixed ration. The ladder should only be used while the machine is stopped.
Vertical Knives: Adjustable vertical knives for more aggressive cutting.
Rubber extension: The tapered boil ring is standard equipment on the CMF-590. It prevents product from boiling over the sides during the cutting and mixing processes.
Optional Features
Magnets: Discharge magnets on the chutes/spouts remove ferrous metal, such as bale wire, from feed, providing the highest quality feed available.
Digi-Star Scale: Choose from any Digi-Star scale indicator. Also available are optional Digi-Star Feed Management Programs. www.digi-star.com
Left or Right Door Opening: Optional left or right door opening with discharge conveyor options of 3’ or 5’ provide the ultimate flexibility for feeding applications. The 3’ conveyor has a feed height ranging from 40” to 48”. The 5’ conveyor has a feed range from 49” to 62”.
2-Speed Gear Box: The 2-speed gear box is used for heavy starts after transporting heavy rations to protect the tractor PTO and mixer's drive train.
Specifications
| WEIGHT | |
| Total | 10,270 lbs (4,658.39 kg) |
| Tongue Weight | 1,220 lbs (553.38 kg) |
| TRANSPORT DIMENSIONS | |
| Width | 12 ft. 4 in. (3.76 m) |
| Length | 17 ft. 10 in. (5.44 m) |
| Height | 10 ft. 4 in. (3.15 m) |
| WORKING DIMENSIONS | |
| Width | Between 10'-11" and 14'-3" Depending on Conveyor |
| Loading Height With Extensions | 10 ft. 4 in. (3.15 m) |
| CHASSIS FEATURES | |
| Towing Arrangement | Clevis Type Hitch/Pintle |
| Jack Capacity | 7,000 lbs. (3,175.1 kg) |
| Jack Travel | 10 in. (25.4 cm) |
| Tires | (2) 385/65R 22.5 |
| Wheels | (2) 8 bolt |
| Axle | Rigid |
| Bearings | Tapered Roller |
| Extensions | 12 inch rubber |
| CAPACITIES | |
| Mixing Capacity with 12" Extension | 590 cu. Ft (16.71 cu. m) |
| Gross Weight Capacity | 22,270 lbs (10,101.5 kg) |
| Tare Weight - TMR | 12,000 lbs (5443.11 kg) |
| AUGERS | |
| Number | 1 |
| Diameter | 104 in. (264.16 cm) |
| Flighting Thickness | 5/8 in. (1.59 cm) |
| Number / Thickness Knives | 7, 5/16 in. (0.3125 in.) Self-Sharpening |
| DRIVELINE AND GEAR BOXES | |
| Drive Line | 1-3/4 in. (4.45 cm) Constant Velocity 1000 rpm PTO Shaft 1-3/8 in. (3.49 cm) Constant Velocity 1000 rpm PTO Shaft |
| Protected Clutch | (1) Free motion automatic clutches |
| Gearboxes | (1) HD gearbox with 2 year warranty |
| UNLOADING DOOR | |
| Door | 24 in. (60.96 cm) x 42 in. (106.68 cm) |
| Discharge Height | 34 in. (86.36 cm) |
| Discharge Options | Left or Right |
| MISCELLANEOUS | |
| Floor Thickness | 5/8 in. (1.59 cm) |
| Side Wall Thickness | 1/4 in. (0.635 cm) |
| Scale | Digi-Star 4 point scale with optional monitor |
| REQUIREMENT FOR OPERATION | |
| PTO Horsepower Required | 100 HP Minimum |
| PTO Type | 1,000 rpm, 1-3/8 in. or 1-3/4 in. Dia. With 6 Spline |
| Min. Tractor Hydraulic Output | 8 gpm at 1500 psi (30.3 lpm X 10,345 kPa) |
| SMV Sign and Road Lights | Standard Equipment |
| Electrical | 12 VDC (battery included) |
