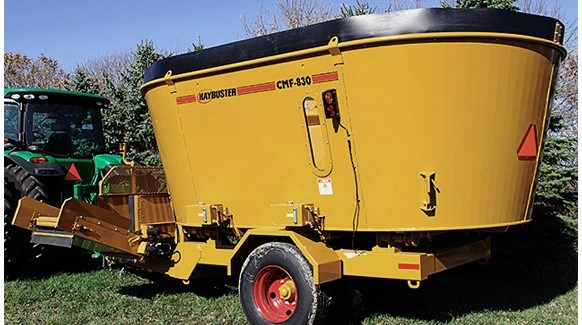

CMF-830
Overview:
With 830 cu. ft. mixing capacity, this feed mixer can evenly distribute products for the best nutrition.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
The 830 is part of our CMF series of vertical mixers that cut materials like hay, straw and corn stocks.
They also mix materials like distillers, silage, corn and more.
Standard Features
Mixing Capacity: The CMF-830 has an 830 cu. ft. mixing capacity with a tare weight of 21,500 lbs.
Unloading Door: Large 24” x 42” unloading door for fast, even unloading and clean out.
Augers: Heavy-duty 88” screw augers with self-sharpening serrated knives, driven by 2 HD USA gearboxes.
Oscillating Axles: Oscillating heavy-duty axles with four 315/80 R 22.5 20-ply rated tires provide even weight distribution on uneven or frozen ground.
Heavy-Duty Frame: The CMF-830 is built with a heavy-duty 6” x 9” x ¼” steel tube frame for strength and durability.
CV PTO or Optional 2-Speed Gearbox: The CMF-830 comes equipped with either a heavy-duty constant velocity 1000 RPM PTO or an optional 2-speed gearbox. The 2-speed gearbox is used for loaded startups and heavy rations.
Optional Features
Unloading Options:
Cross Conveyor only with right- or left-hand drives.
Cross Conveyor with spouts or endgates. Magnets are available for the spouts.
Cross Conveyor with hydraulic conveyor extension. Available in right-hand, left-hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at a time. Spouts and optional magnets are also available.
Dogleg Style Conveyor Also Available
Magnets on Discharge Spouts: Magnets on the spouts remove ferrous metal, such as bale wire, from feed providing the highest quality feed available.
Rear Discharge Door: The optional rear discharge door provides an additional means of discharging feed.
2-Speed Gearbox: The 2-speed gearbox is used for heavy starts after transporting heavy rations to protect the tractor PTO and mixer's drive train.
Digi-Star Scale: Choose from any Digi-Star scale indicator. Also available are optional Digi-Star Feed Management Programs.
Specifications
| WEIGHT | |
| Total | 17,900 lbs. (8,119.3 kg) |
| Tongue Weight | 2,100 lbs. (952.5 kg) |
| TRANSPORT DIMENSIONS | |
| Width | 10' 2" (3.1 m) |
| Length | 24' 6-1/8" (7.47 m) |
| Height | 10' 8" (3.3 m) |
| WORKING DIMENSIONS | |
| Loading Height with Extensions | 10' 8" (3.3 m) |
| Width | Between 10'-2" and 12' Depending on Conveyor |
| CHASSIS FEATURES | |
| Towing Arrangement | Clevis Type Hitch |
| Jack Capacity | 7,000 lbs. (3,175.1 kg) |
| Jack Travel | 10 in. (25.4 cm) |
| Tires | (4) 315/80R22.5 20 ply |
| Wheels | (4) 22.5 x 9 - 10 hole |
| Axle | Oscillating |
| Bearings | Tapered Roller |
| Extensions | 12" Rubber |
| CAPACITIES | |
| Mixing capacity | 830 cu. ft. (23.5 cu. m) |
| Gross Weight Capacity | 39,400 lbs. (17,871.5 kg) |
| Tare Weight - TMR | 21,500 lbs. (9,752.24 kg) |
| AUGERS | |
| Number | 2 |
| Diameter | 88 in. (223.52 cm) |
| Flighting Thickness | 5/8 in. (1.59 cm) |
| Number / Thickness Knives | 14-1/4 in (.635 cm) self-sharpening |
| DRIVELINE AND GEAR BOXES | |
| Drive Line | 1 ¾" (4.45 cm) Constant velocity 1000 RPM PTO shaft |
| Optional two-speed gear box with 1 ¾" 1000 RPM PTO for loaded startups | |
| Clutch | Free motion automatic clutches (2) |
| Gearboxes | 2- HD gearboxes |
| UNLOADING CONVEYOR | |
| Type | 36 in. (91.44 cm) Chain With Hydraulic Orbital Motors |
| Discharge Height | 26 5/8 in. (67.63 cm) to 55 in. (139.7 cm) |
| Discharge Options | Left, right, both |
| MISCELLANEOUS | |
| Door Opening | 24 in. (60.96 cm) x 42 in. (106.68 cm) |
| Floor Thickness | 5/8 in. (1.59 cm) |
| Side Wall Thickness | 1/4 in. (0.635 cm) |
| Scale | Digi-Star 4 point scale with optional monitor |
| Observation Windows | 2 |
| REQUIREMENT FOR OPERATION | |
| PTO Horsepower Required | 150 HP minimum |
| PTO Type | 1000 RPM, 1 3/4" dia PTO Shaft with 20 splines |
| Min. Tractor Hydraulic Output | 8 gpm at 1500 psi (30.3 lpm X 10,345 kPa) |
| SMV Sign and Road Lights | Standard Equipment |
| Electrical | 12 VDC (battery included) |
