4000 Series

SB400014

PRINT

Overview:

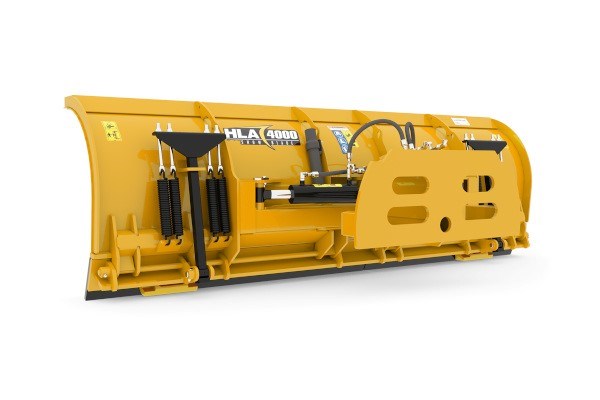

The 4000 Series Angle Blade is sized for wheel loaders and ag tractors, from 10,000 to 25,000 lbs. operating weight. Featuring hydraulic angle, this blade is ideal for agricultural property maintenance and commercial snow clearing alike.

Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

Features

  • 2 Year Warranty
    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
  • 35° Angle with Crossover Relief Valve Protection
    Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.
  • Lateral Float
    Allows blade to follow ground contours for better clearing performance.
  • Mouldboard Profile
    Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.
  • Replaceable, Reversible Cutting Edge
    Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
  • Cast Highway Skid ShoesStandard on 4000, 5000, 6000 snow blades without Edge Flex. Cast high tensile long wear skid shoes provide excellent longevity and performance suited for heavy duty clearing on concrete or asphalt.
  • Spring Trip Cutting Edge
    Allows cutting edge to trip back if struck by hidden object limiting damage.



Options

  • Rubber Cutting Edge
    Allows blade to trip back if struck by hidden object limiting damage. Standard on SB4000R models.
  • Spill Guard
    Available on all SnowWing models and the 4000, 4000, 5000, & 6000 series SnowBlades
  • Carbide Cutting Edges
    Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.
    NOTE: Colour added to image to highlight carbide.
  • Floating Blade Hinge
    This option adds a mechanical float to the blade. This allows the blade to better follow the surface contour. The float is designed to be simply locked out when not needed by rolling the blade forward.
  • Snowblade Marker
    Add this to your blade for better visibility and blade position awareness.
  • Curb Runner
    Protects cutting edge from potential wear from rubbing against curbs etc
  • AR400 Large Pad Skid Shoe
    Large pad style skid shoe for better floatation on soft surfaces NOTE: Available on non Edge Flex models.
  • Edge Flex Models
    Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.

Specifications

Part#SB400014
Approx. Weight (LBS.)2,505
Length (in.)168
Overall Road Width (Angled) (in.)150
Snow Clearing Width (Angled) (in.)138
Mouldboard Height (in.)34"
Max Operating Weight (lbs.)25,000
