SB3230W611
Overview:

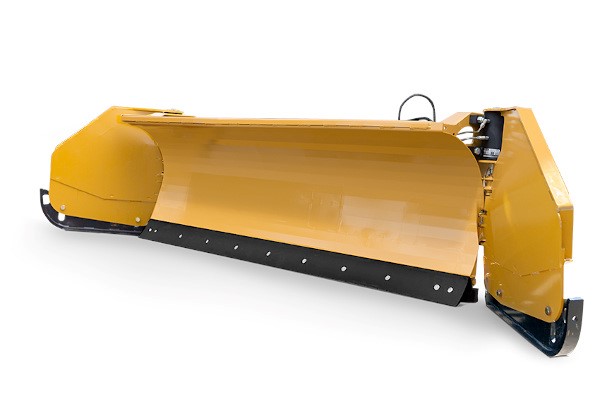

The 3230W SnowWing Series is sized for skid steers, compact wheel loaders and ag tractors, up to 13,000 lbs. operating weight. Featuring 30” long adjustable wings with patented rotary actuators, to combine the functionality of both angle blades and box pushers, it provides unparalleled efficiency and productivity for commercial contractors.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 2 Year Warranty
Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty. - 180° Rotation
Infinitely and independently adjustable, our wings are rugged enough to stay put and give you control of any situation. - 35° Angle with Crossover Relief Valve Protection
Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property. - Floating End Plate Edge
Floating endplate edges follow surface contour for confident snow clearing. - Lateral Float
Allows blade to follow ground contours for better clearing performance. - Mouldboard Profile
Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over. - Replaceable, Reversible Cutting Edge Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
Note: Replace endcaps along with cutting edges to prevent streaming.
Wing edges are not reversible.
(non Edge Flex only) - Rotary Actuators - PATENTED
These rugged units come from the construction industry and deliver up to 21,000 in. lbs of torque at 3000 PSI to hold the wings in place. - Skid Shoes
Allows you to set cutting depth for optimum performance and prolonged cutting edge life. - Spring Trip Cutting Edge
Allows cutting edge to trip back if struck by hidden object limiting damage. - Tire Protection System - PATENTED
Our Tire Protection System means that you get the most out of your Snow Wing while keeping the air in your tires. The system automatically protects from unintended damaging collisions between your front tires and end plates. The end plates are automatically rotated away from the tires so the operator can focus on clearing snow and worry less about damaging equipment. - Double Selector Valve
Allows the control of each wing to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit. - Quick Attach Frame Kits
Quick attach frame kits are available for most makes. Call dealer for details.
Options
- Rubber Cutting Edge
The optional rubber cutting edge is available for select models. - Spill Guard
Available on all SnowWing models and the 3000, 4000, 5000, & 6000 series SnowBlades. - Curb Runner
The optional Curb Runner runs along the front face of the curb, preventing the edge of the wing from catching on any edges. - Snowblade Marker
Add this to your blade for better visibility and blade position awareness. - Floating Blade Hinge
This option adds a mechanical float to the blade. This allows the blade to better follow the surface contour. The float is designed to be simply locked out when not needed by rolling the blade forward. - Carbide Cutting Edges
Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.
NOTE: Colour added to image to highlight carbide. - Foot Switch
The new Foot Switch is a direct replacement for the 3-way toggle switch traditionally used to control the diverter valve on SnowWing plows.
Available as a field install kit to retrofit from a 3-way toggle switch, or as an upgrade option with a new plow order.
Edge Flex Models
Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
Specifications
| Part # | SB3230W611 |
| Approx. Weight (LBS.) | 1,575 |
| Clearing Width Closed (in.) | 72 |
| Clearing Width Open (in.) | 132 |
| Overall Road Width (Angled) (in.) | 70 |
| Snow Clearing Width (Angled) (in.) | 107 |
| Wing Width (Each) | 30" |
| Mouldboard Height | 30" |
| Max Operating Weight (lbs.) | 13,000 |
