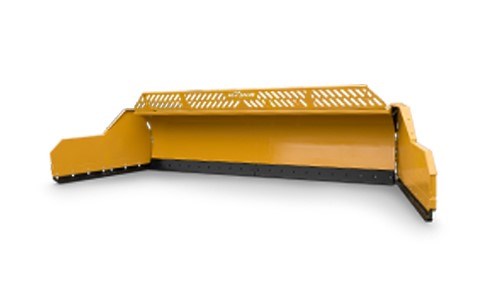

HLA Snow SB5206W1224

Double tap to zoom

5206W Series

SB5206W1224

Overview:

Open from box blade to straight blade and get that extra clearing width on the fly. But it doesn't stop there: The endplates are hydraulically-controlled and equipped with industry-proven rotary actuators, giving limitless control within the massive 180° rotation. This means you can use your blade on an angle with one end open and the other parallel to the direction you are driving. Get closer to buildings and parking stones without risking damage. Then rotate the endplates into a reverse box blade and drag the snow away for full clearing in the tightest of spaces.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

2 Year Warranty
6' Wings
Removeable Upper Wing Tip
180° Rotation
Crossover Relief Valve
Floating End Plate Edge
Lateral Float
Nitrate Rods on Angle Cylinders
Replaceable, Reversible Cutting Edge
Rotary Actuators - PATENTED
Skid Shoes
Spring Trip Cutting Edge
Tire Protection System - PATENTED

Options

Rubber Cutting Edge
Spill Guard
Carbide Cutting Edges
Curb Runner
High Tensile Long Wear Skid Shoes
Floating Blade Hinge
Snowblade Marker

Specifications

Part#	SB5206W1224
Clearing Width Closed (in.)	144
Clearing Width Open (in.)	288
Overall Road Width (Angled) (in.)	133
Snow Clearing Width (Angled) (in.)	235
Mouldboard Height (in.)	42
Weight (lbs.)	4,530
Max Operating Weight (lbs.)	40,000
