Killbros Farm Equipment 1135

Double tap to zoom

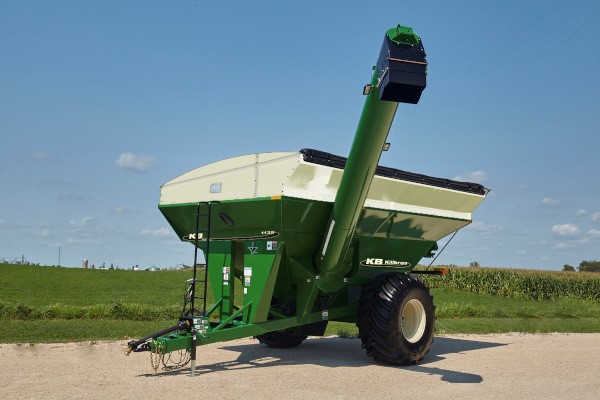

35-Series Corner Auger Grain Carts

1135

Overview:

The Killbros 35-Series of side-fold, corner-auger grain carts feature enhanced unloading speeds and greater reach with an economical design to meet your demanding harvest needs. The side-fold, single-auger design allows the upper auger to be longer, increasing side reach and height, which allows the operator to drop grain straight down for greater control. The standard two-way rubber downspout provides side-to-side control for easily topping off trucks. The 35-Series lineup of grain carts features tank capacities ranging from 750 to 1100 bushels and unloading speeds up to 500 bushels per minute depending on model. The unique auger sump and steep side slopes ensure quick and complete cleanout of grain during each unload. If you're looking for an economical, valuable and time-saving addition to your operation, look to the 35-Series of Killbros corner-auger grain carts.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Auger

Auger & Downspout

Models 1135 and 1035 feature a 20" diameter auger for unloading speeds up to 500 bushels per minute
Models 835 and 735 feature an 18" diameter auger for unloading speeds up to 450 bushels per minute
Patented cushioned auger mechanism ensures a smooth engagement of the upper and lower auger sections
Fully visible auger fold position indicator to monitor the auger during the entire folding process
Exclusively designed 3/8” thick max-edge flighting with 1/4” thick high-carbon Abrasion Resistant (AR400) wear strips in high-volume areas increases the life of the flighting for long-term, trouble-free use.
Electronic balancing of the upper and lower augers virtually eliminates vibration for long-term auger life
Two-way downspout is hydraulically controlled with 60-degrees of side-to-side rotation which adds unloading flexibility when filling semis
Auger unloading light automatically turns on when the auger is unfolded
When unfolded, a hydraulic locking mechanism holds the upper and lower auger together for a leak-free seal during unloading
Exclusive, heavy-duty 45° gearbox features an extra-large 1 3/4" output shaft static rated at 330 H.P. and dynamic rated at 153 H.P.

Tank

Tank Design

Capacities of 1100, 1000, 850 and 750 bushels with steep slopes for handling the wettest grain
- Recessed auger sump intake and graphite-coated interior surfaces ensure complete cleanout with faster unloading speeds
Model 1135 features a standard weatherguard rollover tarp to protect your harvested crop
Hydraulically operated 36" flow gate with highly visible position indicator for controlling grain flow
Wheel-operated gravity unloading door for pit dumping and clean-out
Front viewing ladder and front and rear shatterproof windows for easily viewing contents
The exclusive manufacturing process crimps sides for added strength and a sleek appearance
- Exposed seams are silicone sealed for corrosion resistance
D.O.T.-approved flashing LED amber and red taillights, reflective marking and SMV emblem for safer transport
Durable top coat of high-grade enamel paint is baked on in tractor red or green for a smooth, automotive-like finish

Undercarriage

Undercarriage Construction

The heavy-wall tubular steel main frame and axle and 8-gauge steel underframe carry the heaviest loads with ease while the heavy-duty jack allows for easy hookup and safer storage
10-bolt hubs feature gusseted reinforcement for longer life and the greatest carrying capacity
- Field-proven, 4 1/2" spindles with 50-ton rating are manufactured with special alloy, high-tensile strength steel
Cast 2" single-tang hitch features a smooth chamfer opening and bushings that fit numerous hitch pin sizes which allows the cart to follow the terrain for smooth trailing
Optional Width-adjustable axle to match your cropping practices

Tire & Track Options

High-flotation single wheels and tires available on all models
Straddle Duals available on models 1035, 835 and 735
36" wide x 112" Auto-Tension tracks with spring mechanism available on models 1135, 1035 and 835
36" wide x 148" or 131" long track available on model 1135
42" wide x 131" long Equalizer® track for optimum flotation available on model 1135
The 36x148, 36x131 and 42x148 track systems feature single-point hydraulic belt tensioning, 40" steel end-wheels with a chamfered edge and cast pivoting mid-rollers that are on the same plane as the end-wheels for maximum footprint
Equalizer Track Features:
- Industry-leading 42" wide belt and exclusive shallow tread pattern provides a 50+ sq. ft. footprint
- Patented pivot point allows the track to pivot side-to-side and front-to-back for maintaining uniform ground contact in uneven terrain
- - Standard auto-greaser system for automatic application at more frequent intervals

UHarvest

35-Series Grain Carts - Undercarriage Standard Features
